Quick Details
-
Max. Loading Capacity:
-
2000L
-
Weight (KG):
-
250 KG
-
Place of Origin:
-
China
-
Brand Name:
-
BODI
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Power (kW):
-
4 kW
-
Applicable Industries:
-
Used in food, chemicals, pesticides, feed and batt
-
Type:
-
Filling Machine
-
After Warranty Service:
-
Video technical support
Quick Details
-
Barrel Volume (L):
-
200L
-
Max. Loading Volume (L):
-
2000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 3 r.p.m
-
Max. Loading Capacity:
-
2000L
-
Weight (KG):
-
250 KG
-
Place of Origin:
-
China
-
Brand Name:
-
BODI
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Power (kW):
-
4 kW
-
Applicable Industries:
-
Used in food, chemicals, pesticides, feed and batt
-
Type:
-
Filling Machine
-
After Warranty Service:
-
Video technical support
Products Description

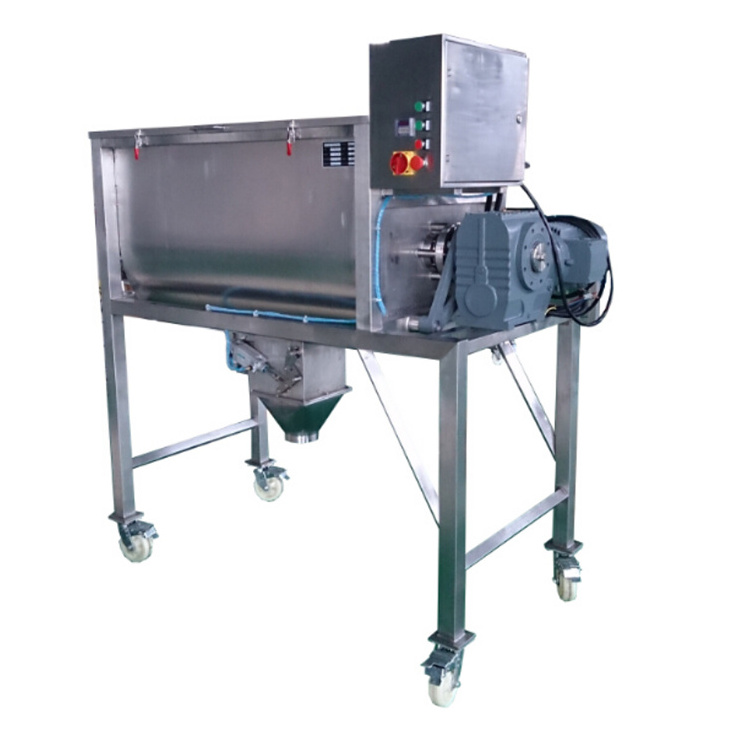

Mushroom compost mixer small spiral mixer horizontal ribbon mixer price
Main features:
Ribbon Blenders consist of U shape horizontal trough and specially fabricated ribbon agitator.
Effective mixing load(40%-80%)
High mixing speed and short uniform time. Mixing speed is around 5-15min
All stainless steel 304 material
Full Mirror polished mixing tank inside, as well as ribbon and shaft
Safety switch, safety grid
Discharge gate can be manual or pneumatically operated for direct filling in bags or dumping into storage bin.
Main Technical Data:
|
Model
|
BD-HH-200
|
BD-HH-300
|
BD-HH-500
|
BD-HH-1000
|
BD-HH-1500
|
BD-HH-2000
|
|||||
|
Effective Volume
|
200L
|
300L
|
500L
|
1000L
|
1500L
|
2000L
|
|||||
|
Fully Volume
|
284L
|
404L
|
692L
|
1286L
|
1835L
|
2475L
|
|||||
|
Turning Speed
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
46rpm
|
|||||
|
Total Weight
|
250kg
|
350kg
|
500kg
|
700kg
|
1000kg
|
1300kg
|
|||||
|
Total Power
|
4kw
|
5.5kw
|
7.5kw
|
11kw
|
15kw
|
22kw
|
|||||
|
Length(TL)
|
1370
|
1550
|
1773
|
2394
|
2715
|
3080
|
|||||
|
Width(TW)
|
834
|
970
|
1100
|
1320
|
1397
|
1625
|
|||||
|
Height(TH)
|
1647
|
1655
|
1855
|
2187
|
2313
|
2453
|
|||||
|
Length(BL)
|
888
|
1044
|
1219
|
1500
|
1800
|
2000
|
|||||
|
Width(BW)
|
554
|
614
|
754
|
900
|
970
|
1068
|
|||||
|
Height(BH)
|
637
|
697
|
835
|
1050
|
1155
|
1274
|
|||||
|
Radius(R)
|
277
|
307
|
377
|
450
|
485
|
534
|
|||||
|
Power Supply
|
3P AC208-415V 50/60Hz
|
|
|
|
|
|
|||||
