Quick Details
-
Brand Name:
-
HC
-
Dimension(L*W*H):
-
2.7*2.1*2.1m
-
Weight:
-
2000
-
Description:
-
Hot selling calibration tank / meters water tank / metering dump tank
-
Working pressure:
-
Atmospheric pressure
-
Outlet thread type:
-
3" fig602M
-
Manhole size:
-
10
-
Size (L*W*H):
-
7.8*2.45*3.2
-
Net weight:
-
2000
-
Design basis:
-
ANSI B31.3
-
Sampling point:
-
1/2" one each side
-
Inlet thread type:
-
3" fig2602F
Quick Details
-
Capacity:
-
5~120 M3, 5~120 M3
-
Max Working Pressure(MPa):
-
1.03 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HC
-
Dimension(L*W*H):
-
2.7*2.1*2.1m
-
Weight:
-
2000
-
Description:
-
Hot selling calibration tank / meters water tank / metering dump tank
-
Working pressure:
-
Atmospheric pressure
-
Outlet thread type:
-
3" fig602M
-
Manhole size:
-
10
-
Size (L*W*H):
-
7.8*2.45*3.2
-
Net weight:
-
2000
-
Design basis:
-
ANSI B31.3
-
Sampling point:
-
1/2" one each side
-
Inlet thread type:
-
3" fig2602F

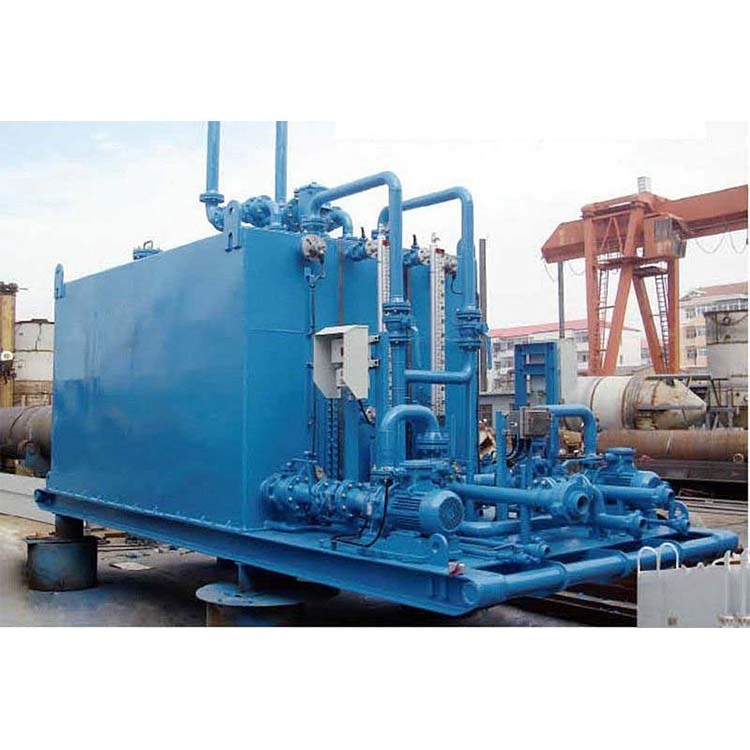

Hot selling calibration tank / meters water tank / metering dump tank for sale
Calibration tank, also known as dump tank or measuring tank,is used for metering crude oil after separation and calibrating metering devices like flow gauges on the separator oil lines in a testing system.It is a nonpressurized vessel, and can also be used for temporarily storing the oil.Since the measuring tank is attached a crude-oil transfer pump, it is convenient to load and transport oil and water.
The technical parameters about meters water tank
|
Capacity
|
Working pressure
|
Manhole size/
|
Inlet and outlet
|
Net weight
|
Size
|
Sampling
|
Design basis and work environment |
|
|
50(8) |
Atmospheric
|
10(254) |
3" fig 2602F
|
4410
|
9
×7×7
|
1/2" one
|
ANSI B31.3 |
|
|
2 ×50(16) |
Atmospheric
|
-18(457) |
3" fig 2602F
|
8350
|
8
×14.5×8
|
1/2" one
|
ASME VIII Div.1.
|
|
Main features of our metering dump tank as below:
1.Measure low liquid flow rates from a separator.
2.Calibrate metering devices on the separator oil lines.
3.Measure a large volume of oil at atmospheric pressure.
4.Safety guarantee: Flame arrestors on each gas vent line;Overpressure shearing roof;Grounding strap.
5.Sampling points and pressure and temperature ports.
6.Sight-glass level on each tank compartment.
7.Codes: ANSI/ASME B31.3.
