Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-500WSD
-
Beam Angle(°):
-
20/40/60/90/140*100deg
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 140 led projector for outdoor lighting
-
Lamp Luminous Flux(lm):
-
70000, 70000 spotlight 500w
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell lighting lamps for sports venues
-
Dimming Function:
-
1-10v, PWM, DALI dimmable led flood lamp
-
Replacement:
-
1500w metal halide light/ halogen light
-
Cable:
-
VDE 3*1.0sq.mm2 outdoor led projector
-
Beam angle:
-
20/40/60/90/140*100degree led exterior
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Project Installation
-
Control Mode:
-
Remote Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-500WSD
-
Beam Angle(°):
-
20/40/60/90/140*100deg
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 140 led projector for outdoor lighting
-
Lamp Luminous Flux(lm):
-
70000, 70000 spotlight 500w
-
Working Lifetime(Hour):
-
50000
-
Power Driver:
-
Meanwell lighting lamps for sports venues
-
Dimming Function:
-
1-10v, PWM, DALI dimmable led flood lamp
-
Replacement:
-
1500w metal halide light/ halogen light
-
Cable:
-
VDE 3*1.0sq.mm2 outdoor led projector
-
Beam angle:
-
20/40/60/90/140*100degree led exterior
Features of led flood light for football field, tennis court, basketball court, warehouse, horse riding, parking lot, etc..
1. 50/100/150/200/250/300/400/500w
2. AC100-277V
3. 5 years warranty
4. CE RoHS SAA C-tik EMC LVD FCC certificated
500W Rectangle Adjustable Module Flood Lamp LED Flood Light for Tennis Court Stadium Parking Lot
500W LED Floodlight Main Technical Parameters | |||
Item No.: | RB-FLL-500WSD | ||
Input Voltage: | AC 100-277V | ||
Freqency Range: | 50Hz~60Hz | ||
Power Factor: | >0.98 | ||
Power Efficiency: | >92% | ||
Lamp Driver | Meanwell *2PCS | ||
LED Chip: | SMD3030 | ||
LED Power | 500W | ||
LED QTY: | 480pcs | ||
LED Working Voltage: | DC36 ~42V | ||
System Consumption: | 505W | ||
LED Luminous Flux | Warm White | 59800LM | |
Pure White | 59900LM | ||
Cool White | 60000LM | ||
Viewing Angle: | 20/40/60/90/140*100 | ||
Illuminance Uniformity: | >0.6 | ||
Color Temperature | Warm White | 3000K~3500K | |
Pure White | 5000K~5500K | ||
Cool White | 6000K~6500K | ||
Color Rendering Index | Ra>80 | ||
Light Distribution: | LED points visible | ||
Light Design: | LED+The secondary light distribution lens | ||
LED Junction Temperature: | ≤115℃ | ||
Working Temperature: | –35℃~55℃ | ||
IP Grade: | IP65 | ||
Working Life-span: | 50000 H | ||
Power Line: | 1.0 mm2 three line | ||
Connect Wire | Brown | L | |
Blue | N | ||
Yellow / Green | G | ||
The color of the lamp shell | Black | ||
Size | 599*450*130mm | ||
Certificates | CE ROHS EMC LVD |

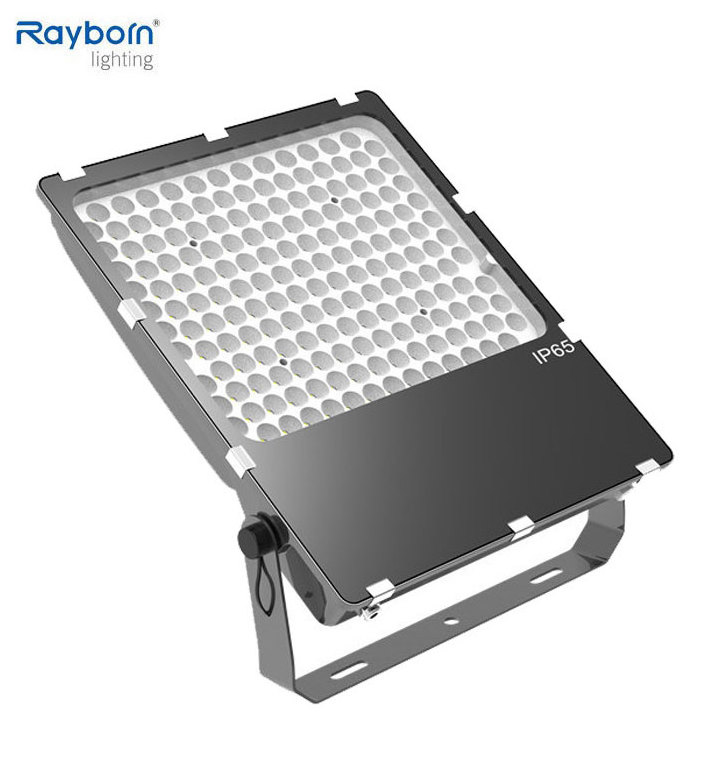

Images of 500w led flood light
LED Flood light Features
LED Chip
:
140lm/w
LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply:
LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature:
LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics:
Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing:
Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable:
silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty:
5
years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification:
FCC CE RoHS approval.
Quality Control:
Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable:
Adjustable stainless steel mounting bracket allows you to direct light where you need it.
More chioces for led flood lights
Aging test of led flood light
3000k/ 400k/ 5000k/ 6000k different color temperature available
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packaging details about led floodlight
Item | Dimension | Carton Size | Gross Weight | Packaging |
50w led flood light | 315*93*130mm | 33*22*22cm | 4.9KG | 2PCS/carton |
100W led flood light | 315*180*130mm | 35*26*16cm | 4.5KG | 1PCS/carton |
150W led flood light | 315*270*130mm | 35*31*16cm | 5.5KG | 1PCS/carton |
200W led flood light | 315*373*130mm | 39*35*16cm | 7KG | 1PCS/carton |
250W led flood light | 315*463*130mm | 55*35*16cm | 8.9KG | 1PCS/carton |
300W led flood light | 598*283*130mm | 64*33*17cm | 10.5KG | 1PCS/carton |
400W led flood light | 598*373*130mm | 64*44*19cm | 13KG | 1PCS/carton |
500W led flood light | 598*453*130mm | 63*53*17cm | 15KG | 1PCS/carton |
Shipping ways
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
