Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUANCHENG
-
Power:
-
3.75KW, 4KW
-
Dimension(L*W*H):
-
2.8*1.2*1.3m
-
Weight:
-
800 KG
-
Product name:
-

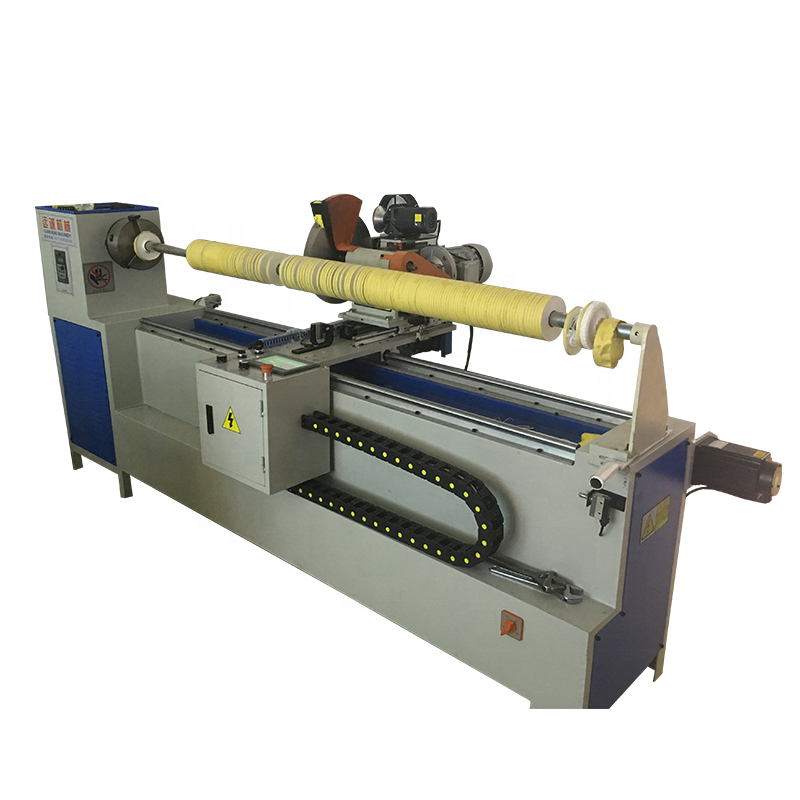

Fabric roll slitting machine
-
Suitable cutting material:
-
Garment Fabrics , PVC , cotton , silk , curtain fabrics,paper, etc.
-
Cutting precision:
-
0.1mm
-
Fabric roll Diameter:
-
38mm~320mm
-
Blade sharpening system:
-
Yes
-
Effective working width:
-
1700mm
-
Function:
-
CNC Cutting
-
Color:
-
Blue+White
-
Machine type:
-
CNC Cutting Machine
Quick Details
-
Production Capacity:
-
0-800 rpm/min
-
Voltage:
-
380V/220V
-
Application:
-
Fabrics , PVC , silk , curtain fabrics,paper, etc.
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUANCHENG
-
Power:
-
3.75KW, 4KW
-
Dimension(L*W*H):
-
2.8*1.2*1.3m
-
Weight:
-
800 KG
-
Product name:
-
Fabric roll slitting machine
-
Suitable cutting material:
-
Garment Fabrics , PVC , cotton , silk , curtain fabrics,paper, etc.
-
Cutting precision:
-
0.1mm
-
Fabric roll Diameter:
-
38mm~320mm
-
Blade sharpening system:
-
Yes
-
Effective working width:
-
1700mm
-
Function:
-
CNC Cutting
-
Color:
-
Blue+White
-
Machine type:
-
CNC Cutting Machine
Product Description
Product Application
Suitable for all kinds of width cutting of fabrics, non-woven cloth, linings, interlinings, foam, leather, reflective materials, paper, plastic, acetic acid cloth, reinforcing tape, conductive cloth and so on. Widely used in garment, shoes and hats, bags, clothing accessories factory, swimwear factory, tent factory, umbrella factory, reflective materials factory, home textile products and other industries.
Size Information
Machine cutting width and cutting roll diameter could be customized.
|
Effective Working Width
|
1.6m or be customized
|
|
Fabric roll rotating speed
|
0-1200rpm/min
|
|
Fabric roll diameter
|
280mm or be customized
|
|
Diameter of shaft
|
37mm / according to the paper tube ID
|
|
Gross Power
|
3KW
|
|
Rotary rolling Power
|
1.1KW
|
|
Blade Power
|
1.5KW
|
|
Grinding Motor Power
|
120W
|
|
Cutter Translation Motor Power
|
60W
|
|
Twill Cutter Power
|
250W
|
|
Minimun width of cut strap
|
8mm
|
|
Voltage
|
380V/220V optional
|
|
Strip Cutting Machine Overall Size
|
2.7m*1m*1.4m
|
|
Rolling Machine Overall Size
|
2.5m*0.9m*1.3m
|
