Quick Details
-
Product name:
-
guide pins adminicle
-
Material:
-
55# steel
-
Hardness:
-
Upon requirments
-
Color:
-
Bright
-
Size:
-
Metric & Inch
-
Shaping Mode:
-
Die Casting
-
Customized:
-
Available
-
Sample orde:
-
Accept
-
Type:
-
Round Lock Pin, T-type Lock pin,straight Lock pin
-
Usage:
-
Mold Part
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LS
-
Model Number:
-
LS
-
Product name:
-
guide pins adminicle
-
Material:
-
55# steel
-
Hardness:
-
Upon requirments
-
Color:
-
Bright
-
Size:
-
Metric & Inch
-
Shaping Mode:
-
Die Casting
-
Customized:
-
Available
-
Sample orde:
-
Accept
-
Type:
-
Round Lock Pin, T-type Lock pin,straight Lock pin
-
Usage:
-
Mold Part
Guide pins adminicle/Mold alignment locks/ taper lock pin
1. detail for product
| Product Name | guide pins adminicle |
| Material |
SKD11,YK30,SUJ2 |
| Hardness | 58~62 HRC |
| Shape Mold | Die Casting |
| Specifications and Variables |
1)Highly polished finish 6-8 micro finish. 2)Precision form ground to close diameter tolerance +.0002/-.000. 3)Common fractional sizes are available 4)M2 high speed steel 60-62 Rockwell C. 5)Custom sizes can be made to order up to 1" diameter. 6)Custom hardness RC 64 65 and triple drawn available on request. |
| Sizes |
Can be customizes
|
2.Features&Usage of product
1)Suitable for positioning in precision molds such as connectors and electronic devices.
2)It is capable of preventing wear and damage in core pins, since it can be positioned before core pins are inlayed.
3)Makes the maintenance easier because it can be installed and removed from PL side.
4)Contacting the pin and bushing when mold is closed may cause damage. Please leave a clearance of about 1mm on PL.
5)Use precision leader pins since clearance is fairly small.

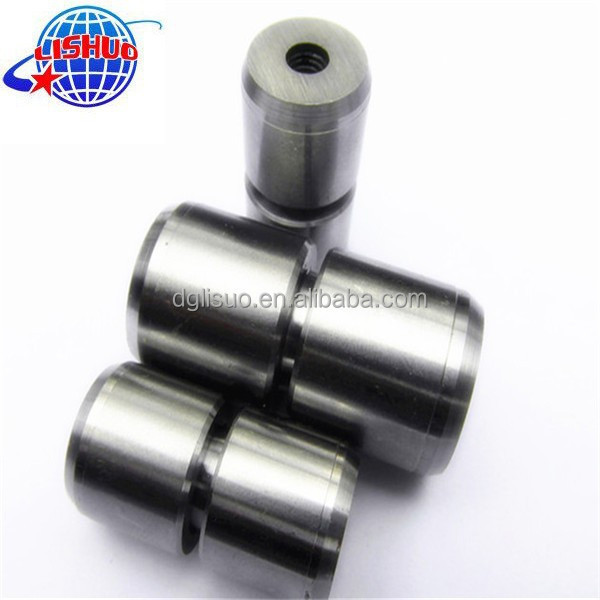

3 . product show
4.Packaging & Shipping
|
Shipment |
1.Express by air (UPS,DHL,FedEx,TNT,EMS etc.) 2.Ship by sea. 3.Customer's requirement is welcome. 4.It generally about needs 3-7day. |
|
Packaging |
Cartons, box, plastic bags or upon request |
5.Our Services
1. Specialized in precision mold and mold part ,inquiries will get highly attention and be prompt response.(within 24 hours)
2. Advanced facilities and experienced engineers, rich experience in mold part.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% test and tryout before shipment.
