- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
500*470*555
-
Weight:
-
49
-
Rated power/speed:
-
3600rpm
-
Product name:
-
Diesel Engine
-
Max Power:
-
13.6HP
-
Fuel tank capacity:
-
5.5L
-
Starting system:
-
Manual Start
-

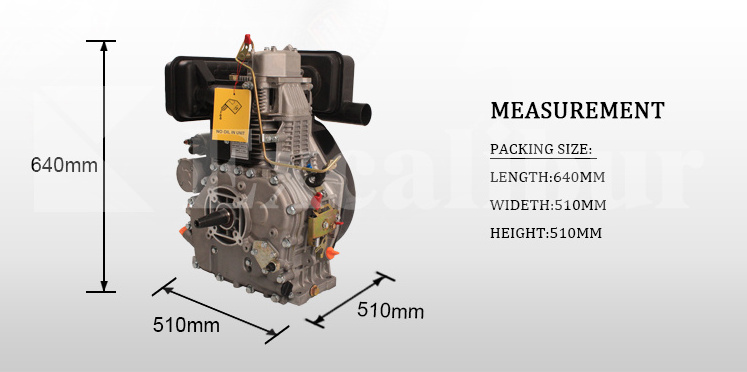

Packing:
-
500*470*555mm
-
Net weight:
-
49KG
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Displacement:
-
0.663L
-
Emission Standard:
-
EURO 5
-
Power:
-
13.6HP
-
Place of Origin:
-
China
-
Brand Name:
-
EXCALIBUR
-
Dimension(L*W*H):
-
500*470*555
-
Weight:
-
49
-
Rated power/speed:
-
3600rpm
-
Product name:
-
Diesel Engine
-
Max Power:
-
13.6HP
-
Fuel tank capacity:
-
5.5L
-
Starting system:
-
Manual Start
-
Packing:
-
500*470*555mm
-
Net weight:
-
49KG
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

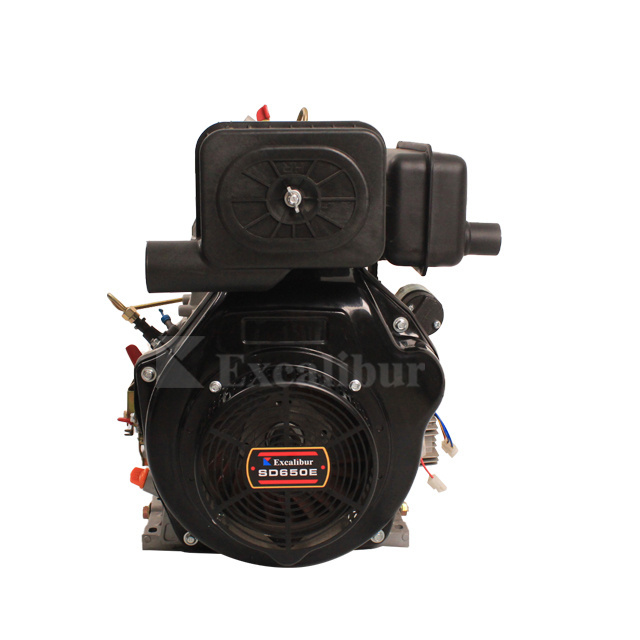

2021 New Small SD650 13.6HPSingle Cylinder 4 Stroke Air Cooled General Diesel Engine
The 4-stroke, air cooled, Diesel Engine 186FAE can be widely used in many application such as the construction site by powering the Road Roller, Tamping Rammer, Scarifying Machine, Concrete Cutter, Power Trowel; And can also be used as the power in diesel weldering generator, diesel water pumps, diesel power tillers etc.
Our Advantages
|
Type
|
Single cylinder, vertical, 4-stroke, air cooled
|
|
Bore*stroke (mm)
|
98*84
|
|
Dislacement (L)
|
0.633
|
|
Combustion system
|
direct injection
|
|
Rated output KW (HP) / rpm
|
9.0 (12.3) / 3000 9.5(12.9) / 3600
|
|
Max output KW (HP) / rpm
|
9.5 (12.9) / 3000 10(13.6) / 3600
|
|
Fuel consumption (g/kw.h)
|
≤271/278
|
|
Direction of rotation
|
Counterclockwise, facing PTOshaft
|
|
Fuel
|
0# (Summer) / -10# (Winter)
|
|
Fuel tank capacity (L)
|
5.5
|
|
Lubricating oil capacity (L)
|
1.65
|
|
Lubricating system
|
Pressure splashed
|
|
Starting system
|
Manual / Electric start
|
Production Line
Factory Equipment
FAQ
Q: What is your MOQ of this Excalibur 186F Air Cooled Motori Diesel 10CV Cina ? How long is your processing time for MOQ?
A: 1 set. Within TWO working days or 48 hours.
Q: Is the engine customized?
A: Yes. Excalibur 186F Air Cooled Motori Diesel 10CV Cina can be customized according to customers design. Color and crankshaft can also be customized according to the customer's drawings.
Q: What is your company production capacity?
A: 5000 sets per month, 1250units Excalibur 186F Air Cooled Motori Diesel 10CV Cina every day.
Q: How long is your warranty for the Excalibur 186F Air Cooled Motori Diesel 10CV Cina?
A: 1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
Q: What are your payment terms?
A: T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers.Paypal is accepted for one set, but please discuss to our sales person first.
Q; Is it alright to make customer's own brand name?
A: Sure, as long as you authorize us to use your brand on your behalf.We have over 5 years OEM/ODM experience.
