Quick Details
-
Air Consumption:
-
7~8m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1600*700*1150mm
-
Weight:
-
800kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Construction
-
Product name:
-
Cement Spraying Machine
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Name:
-
PZ-3. Concrete Spray Machines
-
Keywords:
-
Dry Shotcrete Pumps
-
Color:
-
Customised
-
Model:
-
PZ-3 Shotcrete/Gunite Machine
-
Capacity:
-
5m3/h
-
Certification:
-
ISO
Quick Details
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
438 mm
-
Air Consumption:
-
7~8m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1600*700*1150mm
-
Weight:
-
800kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Construction
-
Product name:
-
Cement Spraying Machine
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Name:
-
PZ-3. Concrete Spray Machines
-
Keywords:
-
Dry Shotcrete Pumps
-
Color:
-
Customised
-
Model:
-
PZ-3 Shotcrete/Gunite Machine
-
Capacity:
-
5m3/h
-
Certification:
-
ISO

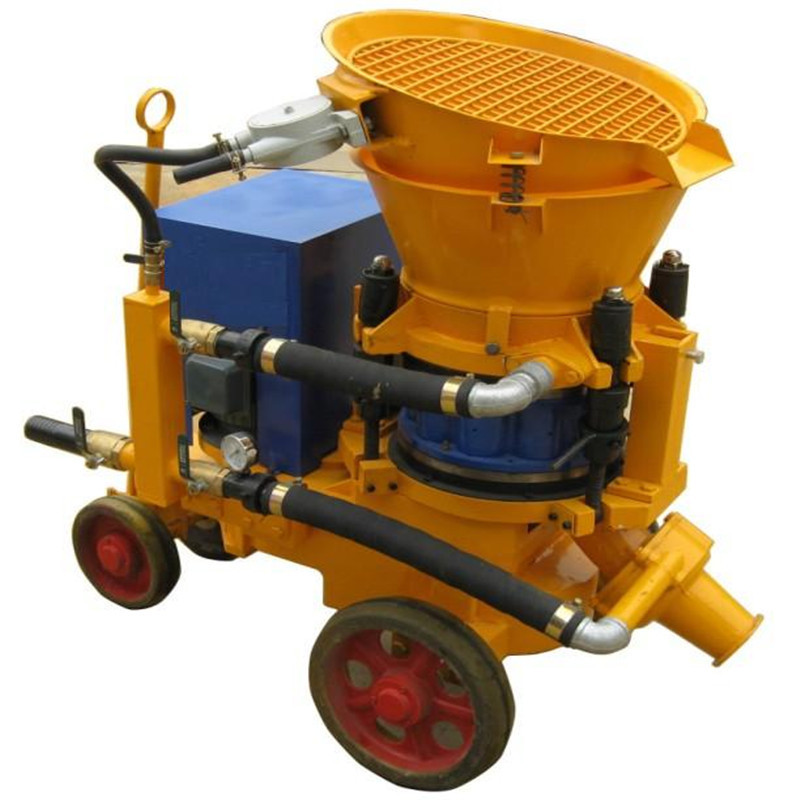

Electric dry Shotcrete machine PZ-3 concrete spraying plaster machines for sale
1. Xinyu PZ-3 gunning machine is mainly used for tunnel, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
2. Refractory material spraying and repair for industrial kilns or kilns's inner .
2.Features:
1. Advantages: This is a high-effective shotcrete machine, which is mainly used for dry - mix, damp-mix shotcreteing and steel fiber reinforced shotcreting.
2. Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3. Four-point clamping device make it easy to adjust the press between seaing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4.Technical Parameters:
|
Item |
PZ-3 |
|
Output |
3m3/h |
|
Max. conv. dist |
200m |
|
Water cement ratio |
0.4 |
|
Max. Aggregate. size |
10mm |
|
Hose inner size |
42mm(2'') |
|
Operating air pressure |
0.2~0.6MPa |
|
Air consumption |
5~6m3/min |
|
Motor power |
3kW(4hp) |
|
Voltages |
380v,440v,660v,1140v 50HZ/60HZ |
|
Basic chassis |
type , skid ,rail wheel |
