Stainless steel wire braided rubber hydraulic hose crimping machine 2inch 3 inch 4 inch big crimping diameter low maintenance

Stainless steel wire braided rubber hydraulic hose crimping machine 2inch 3 inch 4 inch big crimping diameter low maintenance

FOB Reference Price: Get Latest Price

≥1 Sets

US $890

≥30 Sets

US $799

≥100 Sets

US $499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 800*640*1300mm

Weight:: 320

Power (kW):: 4

Type:: hydraulic hose pressing machine

Crimping range:: 1/4''-2.5''

Crimping force:: 650T

Color:: Blue

Free dies:: 13 sets

Scale accuracy:: 0.01mm

Max opening:: 31mm

Operational way:: Button Control

Application:: Crimping Hose Fittings

System pressure:: 31.5Mpa Hose Crimping Machine

Quick Details

Place of Origin:: China

Brand Name:: MENSION

Voltage:: 380

Dimension(L*W*H):: 800*640*1300mm

Weight:: 320

Power (kW):: 4

Type:: hydraulic hose pressing machine

Crimping range:: 1/4''-2.5''

Crimping force:: 650T

Color:: Blue

Free dies:: 13 sets

Scale accuracy:: 0.01mm

Max opening:: 31mm

Operational way:: Button Control

Application:: Crimping Hose Fittings

System pressure:: 31.5Mpa Hose Crimping Machine

Product Description

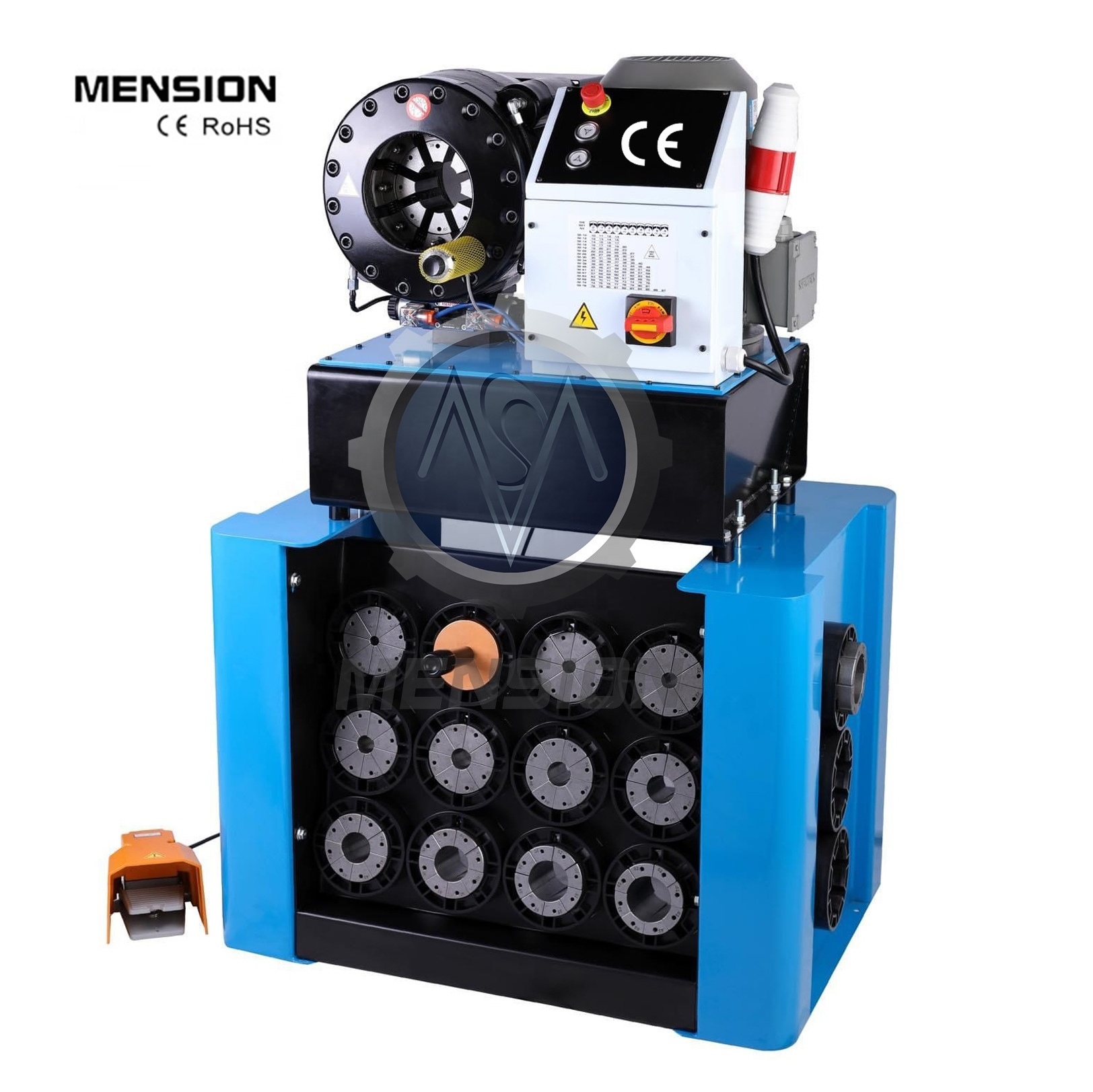

MENSION Hydraulic Hose Crimping Machine.

It is the domestic type designed by our engineer to meet the market need for a multi functional hose crimping machine.

51 has the advantage of all the 51 series types from MENSION . It has two operate mode, both manual and automatic .

There is pressure gauge on the operate panel to show the system pressure during crimping work.

Specification

Type:	china hydraulic hose crimping machine
Crimping Range:	1/4''-2.5''
Crimping Force:	5000KN
Free Dies:	10-13 sets
Operate Mode:	Manual or Automatic
Pump Type:	Piston Pump
Weight:	320KG
Dimension:	8006401300mm
Hydraulic Oil:	T46 Telus or Equvalent

Details Images

Multi function Operate Panel of MS hose crimping machine.

TWO operate mode available for all 51 series among MENSION machines.

1. Semi-automatic (manual) mode, during this mode, operator can control the whole crimping work by themselves, crimping work can stop at any time, operator can crimp based on their experience.

2. Automatic mode, during this mode, operator just need to press once the closing mode button, then the crimping work will start and end automatically.

Crimping diameter control Micrometer.

It uses the micrometer designed in China Mainland.

The advantage is it is easy install and take off from the machine. Accuracy up to 0.01mm.

Swage Reference Table AND Installation Instructions pasted on the hose crimping machine.

Each machine offered with a swage reference table to help the users choose the proper die sets when doing crimping.

Installation Instructions are pasted on front of the machine, to show the basic steps when receiving the machine and crimping the hose for the first time.

High hardness die sets.

All 51 series offer 10 die sets as standard configuration. It enables the machine to crimp the hydraulic hose from 1/4'' to 2'' . Die sets number are marked on the surface, so the user can figure out the die set they need quickly.

Special die sets are available on request.

The die set rack can hold 16 die sets if need.

Foot Pedal Available .

MS-51CG can be operated by foot pedal.

The advantage of foot peda l is:

It can free both of your hands for holding large or heavy assemblies.

The foot pedal also enables using the crimper from the side and is commonly used in serial production.

The foot pedal of 51CG is a double function foot pedal. It can control not only the die sets closing, but also controls the die sets opening. So the operator not need to open the die sets by press the button on the panel.

Lamp is offered.

A crimping lamp is offered along with the machine, this is the unique design of our 51 series hose crimping machines. It enables the user observe clearly the crimping material even when the environment is not quite well.

Piston Pump.

MS-51CG utilizes PISTON PUMP .

The advantage of piston pump is:

1. It generate big crimping force with a small size,

2. It has small noise during work. So if there is strict need for a low noise environment, piston pump is a best choice.

3. More stable performance.

4. Long service life.

5. Flexible of pressure adjust.

6. Supply quick crimping speed.

Application Field

Application of the hydraulic hose crimping machine.

MS-P16HP portable crimping machines are designed for field service when repairs must be made on-site.

It can crimp hydraulic hose from 1/4'' to 1''. Also capable of crimping small tubes and pipes, wires and cable, etc.

They are used globally in such industries as hydraulic hoses, automotive components, construction equipment, heavy machinery, rail road, marine, electric power transmission, industrial hoses and tube, pipe, wire and cable industry, etc.
