- Product Details
- {{item.text}}
Quick Details
-
Table size:
-
520*320mm
-
Frame materials:
-
aluminum alloy 6063 and 6061
-
Driving units X/Y/Z axis:
-
1204 Ball Screw
-
Spindle motor:
-
Brand new 500w dc motor 1000~11000PRM/Min
-
Software environment:
-
Windows xp/ Windows 7
-
Acceptable software:
-
Mach3, USB CNC, EMC2
-
Operating Voltage:
-
AC110V/220V
-
Computer connection:
-
support both parallel port and USB port
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Effective working travel:
-
390(X)mm*280(Y)mm*55(Z)mm
-
Shape dimension:
-
615*485*390mm
-
Table size:
-
520*320mm
-
Frame materials:
-
aluminum alloy 6063 and 6061
-
Driving units X/Y/Z axis:
-
1204 Ball Screw
-
Spindle motor:
-
Brand new 500w dc motor 1000~11000PRM/Min
-
Software environment:
-
Windows xp/ Windows 7
-
Acceptable software:
-
Mach3, USB CNC, EMC2
-
Operating Voltage:
-
AC110V/220V
-
Computer connection:
-
support both parallel port and USB port

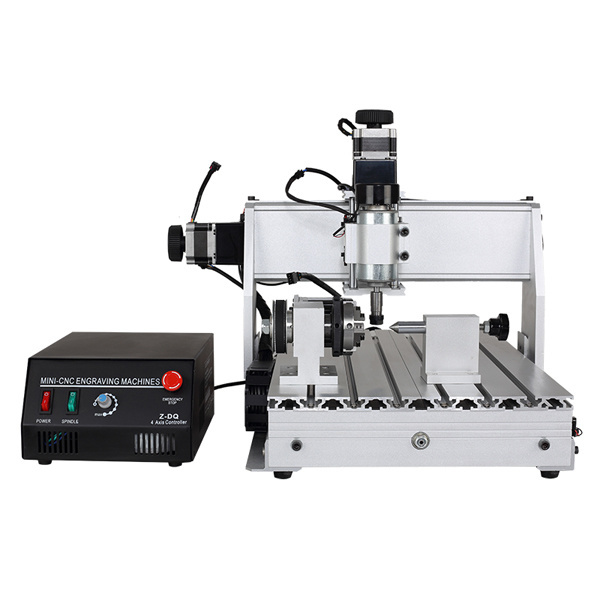

China Hot sales cnc machines 3040 4 Axis cutting CNC metal milling router engraving machine 500w water cooled spindle
In hardware capabilities aspect:
1. Limited switch added.
2. Auto checking function added
3. Ballscrew made it a higher precision.
4. Control box can be 3 axis and 4 axis universal .
5. USB or parllerl port.
6. Air cooling spindle, less noise
7. Easy operate
In soft service aspect:
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. High performance low cost
7. From reliable & trustable profesional China mini CNC router machine manufacturer.
Applications of this Hot sale wood router machine CNC 3040 USB
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
|
Effective working travel |
390(X)mm*280(Y)mm*55(Z)mm |
|
Shape dimension |
615*485*390mm |
|
Table size |
520*320mm |
|
Frame materials |
aluminum alloy 6063 and 6061 |
|
Driving units X/Y/Z axis |
1204 Ball Screw |
|
Sliding units X axis |
Dia.16mm chrome plate shafts |
|
Sliding units Y axis |
Dia.16mm chrome plate shafts |
|
Sliding units Z axis |
Dia.13mm chrome plate shafts |
|
Stepping motor type |
57 two-phase 2.5A |
|
Spindle motor |
Brand new 500w dc motor 1000~11000PRM/Min |
|
Principal axis collet |
ER11/3.175 mm |
|
Repeat accuracy |
0.05mm |
|
Spindle precision |
radial beat acuities 0.03 mm |
|
Carving Instructions |
G code, or any MACH3 support format file |
|
Software environment |
Windows xp/ Windows 7 |
|
Maximum speed |
0-3500mm/min |
|
Carving speed |
300-2500mm/min (different materials differ) |
|
Computer connection |
On board parallel port and USB port |
|
Acceptable software |
Mach3, USB CNC, EMC2 |
|
Protection |
Emergency stop button |
|
Operating Voltage |
AC220V/110V |
Why our CNC 3040 4axis machine will be better than others?
CNC Engraver Suitable User
-Advertising&Design staff
-PCB Engineer
-Woodwork fans
-Model fans
-NOT Ready for Nowise(beginner)
The fourth axis
How to use:
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the CNCUSB on your computer.
4.Connecting the control box with the CNC machine and you computer.
5.Fllowing our manual or guideline to set up the software.
6.You can enjoy making you dream with using our CNC machine now.
CNC3040 is suitble for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.
CNC3040 is a desktop CNC machine and designd for processing Industrial or Hobby Prototype Building, Building Model Making,PCB,Adverstising
Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.
In addition,it can be upgraded to be installed a rotational axis.
Packing list : (Carton Box, 63 *51 *42 cm, total weight 31KG)
1 Engraving machine
1 Controller box with inverter installed in it
1 500w air cooling spindle
1 USB cable or Parallel cable for selection
1 Power cable
4 Engraving bit
4 Limited switch
1 Auto-checking tool
1 set of clamp tool
