Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINSCOLOR
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3.1*1.67*1.285m
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product 2023
-
Ink Characteristics:
-
UV Curing Ink
-
Working Table:
-
Vacuum Sucking
-
Life of printed image:
-
3 years(outdoor),10years(indoor)
-
Operation Environment:
-
Temperature 20 to 30°C,Humidity 40% to 60%
-
LED UV Lamp:
-
More than 20000 hours life
-
Usage:
-
Paper Printer, Label Printer, Card Printer, Tube Printer
-
Ink Color:
-
Multicolor
-
Printhead:
-
I3200 Printhead
-
RIP software:
-
RIp print
Quick Details
-
Print Dimension:
-
1600mm*1000mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WINSCOLOR
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3.1*1.67*1.285m
-
Weight:
-
750 KG
-
Marketing Type:
-
New Product 2023
-
Ink Characteristics:
-
UV Curing Ink
-
Working Table:
-
Vacuum Sucking
-
Life of printed image:
-
3 years(outdoor),10years(indoor)
-
Operation Environment:
-
Temperature 20 to 30°C,Humidity 40% to 60%
-
LED UV Lamp:
-
More than 20000 hours life
-
Usage:
-
Paper Printer, Label Printer, Card Printer, Tube Printer
-
Ink Color:
-
Multicolor
-
Printhead:
-
I3200 Printhead
-
RIP software:
-
RIp print

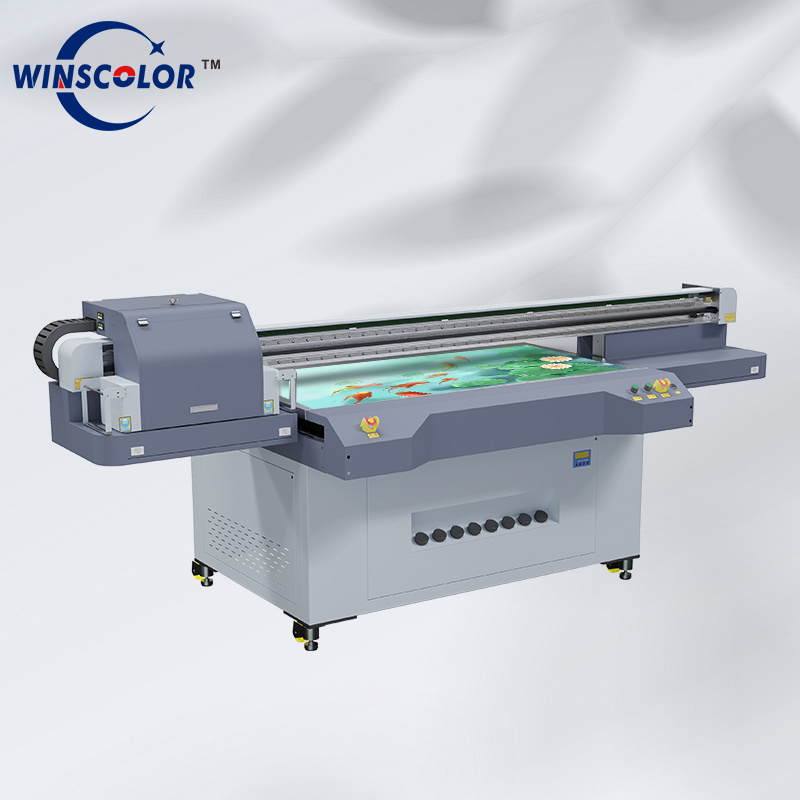

Products Description
Printhead
RICOH GEN5/GEN5i
/TOSHIBA CE4
Printhead 2-8 units
Height Measurement
Automatic height measurement
Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry
①
TAIWAN HIWIN guide rail
④
UV LED Lamp
②
Anti-static,anti-crash system
⑤
Switch and power switch area
③
Print head carriage
⑥
Universal Wheel
Product Paramenters
|
Specifications
|
|
|
|
|
||||
|
Product Model
|
YC1610
|
|
|
|
||||
|
Printhead Type
|
RICOH GEN5i/TOSHIBA CE4/RICOH GEN5 Optional
|
|
|
|
||||
|
Printhead Number
|
2-8 heads
|
|
|
|
||||
|
Ink Characteristics
|
UV Curing Ink
|
|
|
|
||||
|
Ink reservoirs
|
Refillable on the fly while printing/1000ml per color
|
|
|
|
||||
|
LED UV Lamp
|
more than 30000-hours life
|
|
|
|
||||
|
Printhead arrangement
|
CMYKW V Optional
|
|
|
|
||||
|
Printhead Cleaning System
|
Automatic Cleaning System
|
|
|
|
||||
|
Guide Rail
|
ROUST mute
|
|
|
|
||||
|
Working Table
|
Vacuum Sucking
|
|
|
|
||||
|
Printing Size
|
1600*1000mm
|
|
|
|
||||
|
Print Interface
|
USB2.0/USB3.0/Ethernet Interface
|
|
|
|
||||
|
Media Thickness
|
0-100mm
|
|
|
|
||||
|
Print Resolution& Speed
|
720X720dpi
|
4PASS
|
4-16sqm/h
|
|
||||
|
|
720X1080dpi
|
6PASS
|
3-11sqm/h
|
|
||||
|
|
720X1440dpi
|
8PASS
|
2-8sqm/h
|
|
||||
|
Life of printed image
|
3 years(outdoor),10years(indoor)
|
|
|
|
||||
|
File Format
|
TIFF,JPEG,Postscript,EPS,PDF etc.
|
|
|
|
||||
|
RIP Software
|
RIP/Photoprint optional
|
|
|
|
||||
|
Power Supply
|
220V 50/60Hz(10%)
|
|
|
|
||||
|
Power
|
3100W
|
|
|
|
||||
|
Operation Environment
|
Temperature 20 to 30 ℃,Humidity 40% to 60%
|
|
|
|
||||
|
Machine Dimension
|
3.1*1.67*1.285m
|
|
|
|
||||
|
Packing Dimension
|
3.25*1.8*1.62m
|
|
|
|
||||
|
Weight
|
750kg
|
|
|
|
||||
|
Warranty
|
12 months exclude the consumables
|
|
|
|
||||
|
Above specification subject to change without notice beforehand
|
|
|
|
|
||||
Machine Details
Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolution. It is suitable for long-time working, 24 hours running.
Vacuum Adsorption Platform
Hard oxidized honeycomb hole sectionalized adsorption platform, strong adsorption capacity, low motor consumption, customers can adjust the adsorption area according to the size of the printing material, the platform surface hardness is high, scratch resistance, corrosion resistance.
High Mute Drag Chain
The German IGUS mute drag chain is very suitable for protecting cables and pipes under high-speed movement. It has the characteristics of high performance and low noise.
High Precision Aluminum Beam
Our uv printer is equipped with self-developed high-strength aluminum beams, using super-strength aluminum to ensure The printing accuracy is stable and the perfect output is guaranteed.
Other Details
Leadshine Servo Motor
Water Cooling Chiller
Sencondery Cartrighe
Ricoh Piezoelectric Nozzle
Using Ricoh piezoelectric nozzles, the accuracy can reach 1440dpi. The new variable ink droplet technology, providing 7/14/21 plink dot size, can achieve high-quality images at high speed or low resolution, and achieve dotless printing effect.
CMYK+W+V All three colors at once
The use of varnish makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture
has a gloss sense, get a more exquisite printing effect, but also can better protect printing product, make the product more
durable
.
Bottle
Car sticker
Case
Ceramic
Background
PVC
Mouse pad
Acylic
Pen
Carpeting
Wood
Glass Photo
