- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUDUAN
-
Product name:
-
carbon steel pipe conveyor carry roller return idler roller
-
Material:
-
steel,carbon steel,rubber,hdpe
-
Type:
-
conveyor Roller
-
Machine Type:
-
belt conveyor system
-
seal type:
-
TK,DTll
-
Roller dimeter:
-
60-219
-
Color:
-
Red black blue etc
-
Bearing:
-
Ball Bearing
Quick Details
-
Warranty:
-
12Months
-
Weight (KG):
-
3
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIUDUAN
-
Product name:
-
carbon steel pipe conveyor carry roller return idler roller
-
Material:
-
steel,carbon steel,rubber,hdpe
-
Type:
-
conveyor Roller
-
Machine Type:
-
belt conveyor system
-
seal type:
-
TK,DTll
-
Roller dimeter:
-
60-219
-
Color:
-
Red black blue etc
-
Bearing:
-
Ball Bearing
Product Description

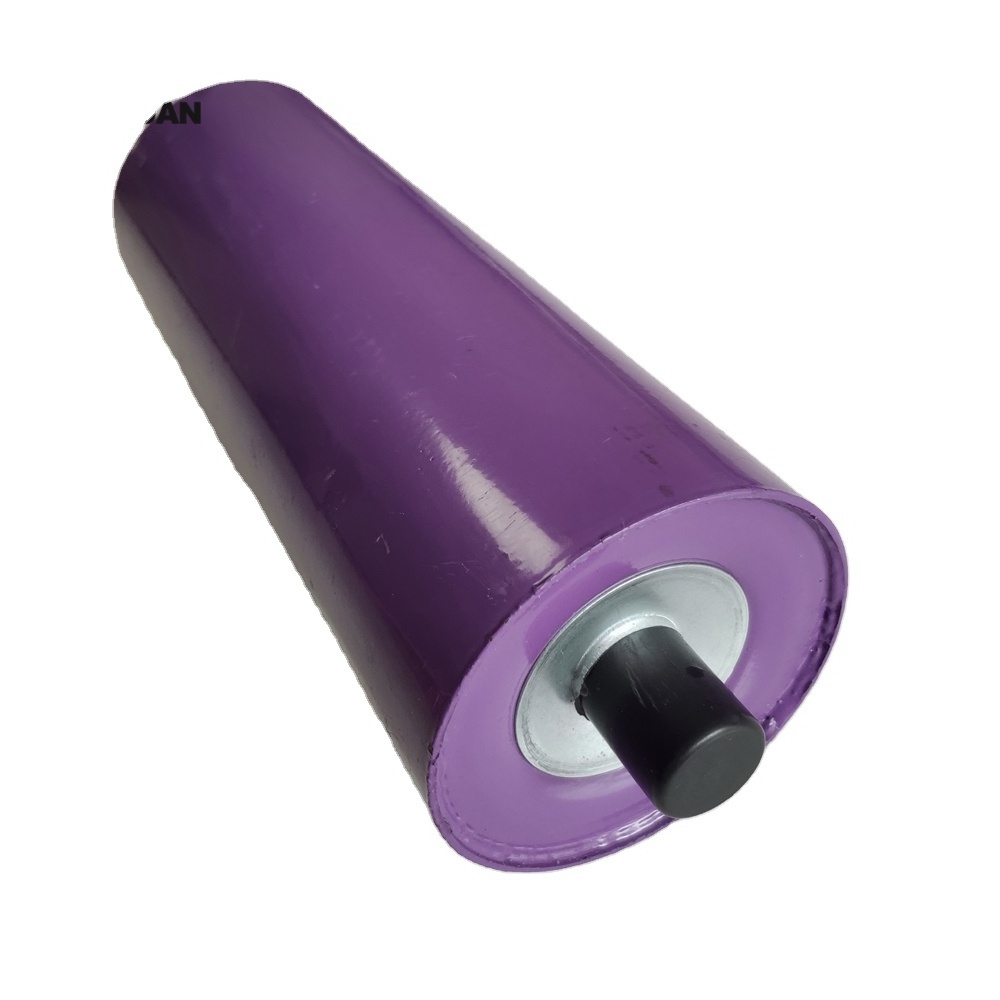

89mm Cheap price carbon steel pipe conveyor carry idler roller return idler roller
we provide all kinds of conveyor idlers,such as parallel to the roller, spherical roller, buffer roller, roller screw, corrosion-resistant roller,spiral roller,trough roller,guiding roller,vertical roller block, the advantage of high precision and best tolerance ensure idlers long working life.
|
Specification
|
|
|
|
Diameter
|
60-219mm
|
|
|
Length
|
100-3500mm
|
|
|
Tube
|
Q235(GB),Rubber,Nylon,HDPE
|
|
|
Shaft
|
45# steel(GB) equal to C45
|
|
|
Bearing
|
Single & Double Row Deep Groove Ball Bearing 2RZ&2Z wigh C3 clearance
|
|
|
Grease
|
Lithium soap type grease,grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal
|
|
|
Lubrication
|
Grease is Lithium soap type grease with Rust Inhibitors
|
|
|
Welding
|
Mixed gas shielded arc welding end
|
|
|
Painting
|
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
|
|
|
Standard Diameter(mm)
|
Standard Diameter(Inch)
|
Lengthscope
(mm)
|
Bearings Type
(Min-Max)
|
dler's shell wall thinkness
|
|
63.5
|
21/2
|
150-3500
|
204
|
3.0mm-3.75mm
|
|
76
|
3
|
150-3500
|
204 205
|
3.0mm-4.0mm
|
|
89
|
31/3
|
150-3500
|
204 205
|
3.0mm-4.0mm
|
|
102
|
4
|
150-3500
|
204 205 305
|
3.5mm-4.0mm
|
|
108
|
41/4
|
150-3500
|
204 205 305 306
|
3.5mm-4.0mm
|
|
114
|
41/2
|
150-3500
|
204 205 305 306
|
3.5mm-4.5mm
|
|
127
|
5
|
150-3500
|
204 205 305 306
|
3.5mm-4.5mm
|
|
133
|
51/4
|
150-3500
|
204 206 207 305 306
|
3.5mm-4.5mm
|
|
152
|
6
|
150-3500
|
204 206 207 305 306 307 308
|
4.0mm-4.5mm
|
|
159
|
61/4
|
150-3500
|
204 206 207 305 306 307 308
|
4.0mm-4.5mm
|
|
165
|
61/2
|
150-3500
|
207 305 306 307 308
|
4.5mm-6.0mm
|
|
194
|
75/8
|
150-3500
|
207 307 308 309 310
|
4.5mm-6.0mm
|
|
219
|
85/8
|
150-3500
|
308 309 310
|
4.5mm-6.0mm
|
Main Features
1.Easy installation ,stable operation ,good flexibility and min 30,000 hours stable lift time.
2.High accurate steel pipes ensure the rollers with wearing resisting,low vibration and noise.
3.Sealing arrangement include a double seal.
4.Dustproof, waterproof and anti-alkali and acid suitabe for corrosion environment.
5.Electrostatic spraying technical makes the roller more durable and good-looking.
Roller Types
Detailed Images
Steel Rollers
Rubber Impact Rollers
Nylon Rollers
HDPE Rollers
Our Company
Packing & Delivery
Related Products
FAQ
1.Q: Are you a factory or trading company?
A: We are manufactuer of the conveyor roller.
2.Q: What is your minimum order quantity?
A: The MOQ is 50pcs,Trial order is welcome at lower quantity, pls advise the estimated quantity, so that
we can check the best price for you.
3.Q: How long warranty for goods ?
A: All of our products have one year warranty.
4:Q: How about your quality?
A: Our quality are good and stable. The Quality Certificate will issued for each shipment.
