Quick Details
-
Brand Name:
-
ONV
-
Model Number:
-
ONV36036FM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

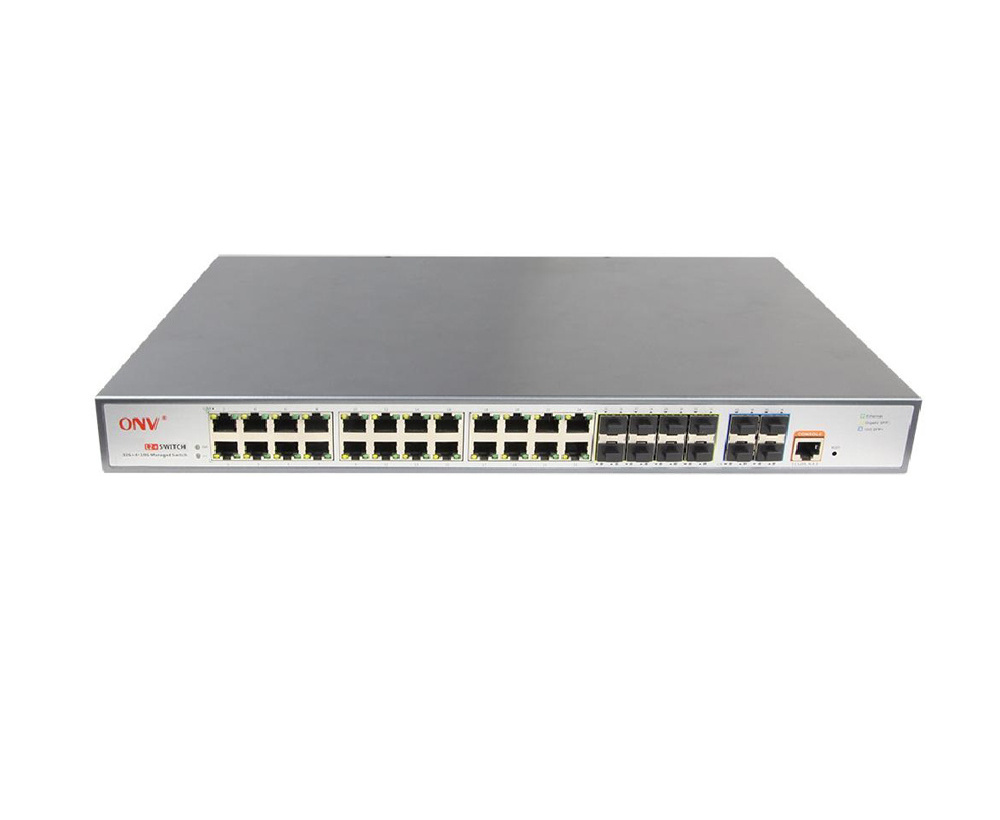

10gbe ethernet switch 36 port 10gb managed network switch
-
Ethernet Port:
-
Port 1-24 support 10/100/1000Base-T,auto-sensing
-
SFP Slot Port:
-
8*100/1000Base-X SFP ports + 4*1/10G SFP+ ports
-
Forwarding Rate@64byte:
-
107Mpps
-
MAC:
-
32K
-
Buffer Memory:
-
32M
-
Jumbo Frame:
-
9.6K
-
Total PWR / Input Voltage:
-
60W/AC100-240V)
-
Warranty:
-
3 years, lifelong maintenance.
-
Contact:
-
Skype: ONV-Lulu, Whatsapp: +8613129592007
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
598Gbps
-
Brand Name:
-
ONV
-
Model Number:
-
ONV36036FM
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
10gbe ethernet switch 36 port 10gb managed network switch
-
Ethernet Port:
-
Port 1-24 support 10/100/1000Base-T,auto-sensing
-
SFP Slot Port:
-
8*100/1000Base-X SFP ports + 4*1/10G SFP+ ports
-
Forwarding Rate@64byte:
-
107Mpps
-
MAC:
-
32K
-
Buffer Memory:
-
32M
-
Jumbo Frame:
-
9.6K
-
Total PWR / Input Voltage:
-
60W/AC100-240V)
-
Warranty:
-
3 years, lifelong maintenance.
-
Contact:
-
Skype: ONV-Lulu, Whatsapp: +8613129592007
Full Gigabit access , 10G SFP+ fiber port uplink
◇All series supports “Gigabit Ethernet port and gigabit SFP fiber slot port and 1/10G SFP+ fiber slot port “combination, which enables users to flexibly build networking to meet the needs of various scenarios. ◇Support non-blocking wire-speed forwarding. ◇Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Strong business processing capability
◇IEEE802.1Q VLAN, flexible VLAN division,Voice VLAN and QinQ configuration. ◇QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR. ◇ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control. ◇IGMP V1/V2 and IGMP Snooping. ◇ERPS/STP/RSTP/MSTP. ◇Static and dynamic aggregation.
Security
◇802.1X authentication. ◇Port isolation,Storm control. ◇IP-MAC-VLAN-Port binding.
◇CCC,CE, FCC, RoHS. ◇Low power consumption, galvanized steel casing, The fan active cooling. ◇Self-developed power supply, high redundancy design, providing a long term and stable power output. ◇The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link/A.
Easy operation and maintenance management
◇Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
◇HTTPS, SSLV3, and SSHV1/V2.
◇RMON, system log, LLDP, and port traffic statistics.
◇CPU monitoring, memory monitoring, Ping test, and cable diagnose.
|
Model
|
ONV36036FM
|
|
||
|
Interface Characteristics
|
|
|
||
|
Fixed Port
|
24*10/100/1000Base-T RJ45 ports (Data)
8*100/1000Base-X SFP ports (Data)
4*1/10G RJ45 ports (Data) 1*Console RS232 port (115200,N,8,1) |
|
||
|
Ethernet Port
|
Port 1-24 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
|
|
||
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
||
|
SFP Slot Port
|
10G SFP+ optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber /
dual fiber optical module. LC)
|
|
||
|
SFP Port Expansion
|
Turbo overclocking 2.5G optical module and ring
|
|
||
|
Optical Cable/Distance
|
Multi mode: 850nm 0 ~ 550M,single mode: 1310nm 0 ~ 40KM, 1550nm
0
~
120KM.
|
|
||
|
Chip Parameter
|
|
|
||
|
Network Management Type
|
L2+
|
|
||
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
|
||
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
||
|
Switching Capacity
|
598Gbps
|
|
||
|
Forwarding
Rate@64byte |
107.14Mpps
|
|
||
|
MAC
|
32K
|
|
||
|
Buffer Memory
|
32M
|
|
||
|
Jumbo Frame
|
9.6K
|
|
||
|
LED Indicator
|
Power: PWR (yellow), system: SYS(yellow), Network: Link (yellow), fiber port: L/A (green)
|
|
||
|
Reset Switch
|
Yes, support one key to restore factory settings
|
|
||
|
Power
|
|
|
||
|
Total PWR / Input Voltage
|
60W (AC100-240V)
|
|
||
|
Power Consumption
|
Standby<20W; Full Load<45W
|
|
||
|
Power Supply
|
Built-in power supply, AC 100~240V 50-60Hz 1.0A
|
|
||
|
Physical Parameter
|
|
|
||
|
Operation TEMP / Humidity
|
-20~+55°C;5%~90% RH Non condensing
|
|
||
|
Storage TEMP / Humidity
|
-40~+80°C;5%~95% RH Non condensing
|
|
||
|
Dimension (L*W*H)
|
440*290*44.5mm
|
|
||
|
Net /Gross Weight
|
<3.5kg / <4.3kg
|
|
||
|
Installation
|
Desktop, wall-mounted,19 inch 1U cabinet
|
|
||
|
Certification & Warranty
|
|
|
||
|
Lightning protection
|
Lightning protection :4KV 8/20us;
Protection Level:IP30 |
|
||
|
Certification
|
CCC;CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
|
|
||
|
Warranty
|
3 years , lifelong maintenance.
|
|
||
|
Network Management
|
|
|
||
|
Interface
|
IEEE802.3X (Full-duplex)
Port temperature protection setting
Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
|
||
|
Layer 3 Features
|
L2+ network management ,
IPV4/IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
|
||
|
VLAN
|
VLAN based on MAC
VLAN based on the protocol Voice VLAN, QinQ configuration 4K VLAN based on port, IEEE802.1q Port configuration of Access, Trunk, Hybrid |
|
||
|
Port Aggregation
|
LACP, Static aggregation, Max 18 aggregation groups and 8 ports per group.
|
|
||
|
Spanning Tree
|
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
|
|
||
|
Industrial Ring Network Protocol
|
G.8032 (ERPS),255 Ring at most, Max 250 devices per ring.
Recovery time less than 20ms |
|
||
|
Multicast
|
IGMP Snooping v1/v2/v3, Max 1024 multicast groups
Fast log out,MLD Snooping v1/v2,Multicast VLAN |
|
||
|
Port Mirroring
|
Bidirectional data mirroring based on port
|
|
||
|
QoS
|
Flow-based Rate Limiting
Flow-based Packet Filtering
8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
|
||
|
ACL
|
Port-based Issuing ACL,ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source,
Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
||
|
Security
|
IP-MAC-VLAN-Port binding
ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection |
|
||
|
DHCP
|
DHCP Client, DHCP Snooping，DHCP Server,DHCP Relay
|
|
||
|
Management
|
One-key recovery
Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 ONV NMS - smart network management system platform(LLDP+SNMP) |
|
||
|
System
|
Category 5 Ethernet network cable
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
|
||
|
Model
|
Description
|
|
|
|
|||
|
ONV36036FM
|
L2+ managed Ethernet aggregation /core fiber switch with 24* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation.
|
|
|
|
|||
|
PACKING LIST
|
CONTENT
|
QTY
|
UNIT
|
|||
|
|
36-port 10G uplink managed Ethernet fiber switch
|
1
|
SET
|
|||
|
|
RJ45-DB9 Line
|
1
|
PC
|
|||
|
|
AC Power Cable
|
1
|
PC
|
|||
|
|
Mounting Kits(Hanging Ear)
|
1
|
SET
|
|||
|
|
User Guide
|
1
|
PC
|
|||
|
|
Warranty Card
|
1
|
PC
|
|||
|
Note:
Ethernet switch does not come with the optical module by default.
|
Note
:
Industrial PoE switch does not match the power supply and SFP module.
|
|
|
|||
