Quick Details
-
Machinery Capacity:
-
60kg/h, 200kg/h, 400kg/h, 600kg/h
-
Machinery Function:
-
bone crusher, bone grinder
-
Name:
-
commercial animal chicken cow pig cattle meat bone grinder and crusher
-
Function:
-
crushed bones
-
Material:
-
Stainless Steel 304
-
Final product:
-
Customized size
-
Capacity:
-
330-4000kg/hour
-
Key word:
-
Bone grinder 304 stainless steel bone meat crusher machine
-
Control system:
-
Electric motor
-
Advantage:
-
crushing bone well
Quick Details
-
Weight (KG):
-
160
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ainuok
-
Machinery Capacity:
-
60kg/h, 200kg/h, 400kg/h, 600kg/h
-
Machinery Function:
-
bone crusher, bone grinder
-
Name:
-
commercial animal chicken cow pig cattle meat bone grinder and crusher
-
Function:
-
crushed bones
-
Material:
-
Stainless Steel 304
-
Final product:
-
Customized size
-
Capacity:
-
330-4000kg/hour
-
Key word:
-
Bone grinder 304 stainless steel bone meat crusher machine
-
Control system:
-
Electric motor
-
Advantage:
-
crushing bone well

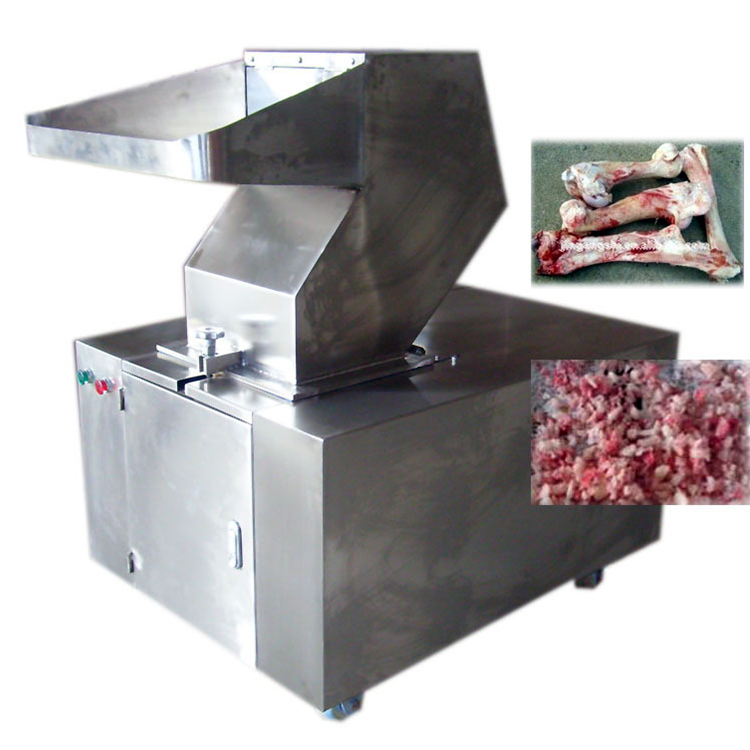

Stainless steel commercial animal chicken cow pig cattle meat bone grinder and crusher
Bone crusher machine is a new type of meat processing equipment developed by our company, which is suitable for the crushing dry and fresh cow bone , pig bone, sheep bone, donkey bone, chicken bone fish bone and other animal bone. The crushing range is 5-80mm .The machine is made of 304 stainless steel, with environmental protection and health, high production efficiency, safe and reliable work, uniform crushing and other characteristics.
The bone crusher is made of stainless steel and has a food hygiene level. It can crush meat materials such as cattle, sheep, pigs, rabbits, ducks, and fish bones.
Precautions: After the fresh bones are broken with meat, it is easy to cause sticky joints. After a period of use, the broken bones that do not enter the screen will block the knife, so that the newly inserted bone cannot touch the knife and break. It is especially recommended to open the feed inlet and the screen regularly to remove the broken bones. In this way, the cutting efficiency will be higher and the service life of the machine will be longer.
Characteristics: simple operation, convenient cleaning and maintenance, compact structure, stable work, large output, low temperature rise, and adjustable particle size. This machine is particularly suitable for the crushing of large bones of cattle, pigs, sheep, and other animal bones and fish bones.
This machine is widely used in various sausages, ham sausages, luncheon meats, meatballs, quick-frozen foods, salty flavors, bone marrow extraction, bone meal, bone mineral, bone broth, bone peptide extraction, biological products, convenient fabric packages, composite seasonings, crushing of hard materials such as catering ingredients, pet food and frozen meat.
Advantage
1.
Double-layer
sound insulation of the fuselage, thickened plates on both sides
2.
SUS304
stainless steel body, in line with food safety standards, clean and hygienic
3. Simple disassembly and assembly, convenient cleaning and maintenance
4.
SKD-11
blade, high hardness, high temperature resistance, sharp and durable
5.
Pure copper
motor, more powerful, equipped with overload protection and reverse rotation device, and power supply chain protection to ensure the safety of operators
6. The knives are
easy
to
install
, can be adjusted telescopically, and can be removed and sharpened repeatedly after being blunt.
7. The operation control panel is clear, simple and easy to understand, and quickly learn how to use it
8.
Wide
feed inlet, no residue left
9. Optimized design of the tool holder, the tool disperses the force, which improves the shear force and impact resistance of a single blade
10. The front blade increases the cutting angle of the blade, improves the cutting efficiency, and crushes the particles evenly.
11. The size of the screen aperture can be customized to meet the needs of different discharge sizes
12. Enlarge and lengthen the receiving drawer to store more materials and make it easier to pick up materials
13. Material baffle design to prevent material splashing
14. Equipped with universal wheels, easy to move
15.
A variety of
blade numbers to choose from: 2-7 blades
16. The cutting tool is made of 3Cr13 special plate, and after vacuum heat treatment, the hardness of the blade reaches
50
degrees.
Parameters
| Model | Capacity(kg/h) | Power(kw) | Weight(kg) | Inlet diameter(mm) | Dimension(mm) |
| PG-180 | 20-60 | 3 | 160 | 180*165 | 450*720*900 |
| PG-300 | 80-200 | 5.5 | 330 | 310*230 | 1080*740*1160 |
| PG-400 | 150-400 | 7.5 | 380 | 410*235 | 1080*840*1160 |
| PG-500 | 200-600 | 11 | 750 | 520*250 | 1450*980*1380 |
| PG-600 | 300-900 | 15 | 1250 | 600*300 | 1600*1100*1480 |
| PG-800 | 800-2200 | 37 | 2500 | 800*650 | 1700*1320*1500 |
| PG-1000 | 1000-4000 | 45 | 4000 | 1000*800 | 1800*1500*1550 |
