Quick Details
-
Installation:
-
Internal
-
Place of Origin:
-
Guangdong, China
-
Colour:
-
Black
-
Weight:
-
150g
-
Certifications:
-
FCC, CE, ROHS, IP64 etc.
-
Superiority:
-
programmable pos magnetic card reader
-
Swipe speeds:
-
From 3 to 60 inches per second
-
Feature:
-
Hi/Lo- co magnetic stripe card reader 3 tracks with software
-
Shell material:
-
High-strength plastics
-
About us:
-
Magnetic Card Reader OEM
-
Operation:
-
Manual Bi-directional swiping
Quick Details
-
Type:
-
CF Card, Memory Stick Card, MMC CARD, SD Card, SM Card, XD Card
-
Interface:
-
usb
-
Card Slots:
-
Single
-
Installation:
-
Internal
-
Place of Origin:
-
Guangdong, China
-
Colour:
-
Black
-
Weight:
-
150g
-
Certifications:
-
FCC, CE, ROHS, IP64 etc.
-
Superiority:
-
programmable pos magnetic card reader
-
Swipe speeds:
-
From 3 to 60 inches per second
-
Feature:
-
Hi/Lo- co magnetic stripe card reader 3 tracks with software
-
Shell material:
-
High-strength plastics
-
About us:
-
Magnetic Card Reader OEM
-
Operation:
-
Manual Bi-directional swiping

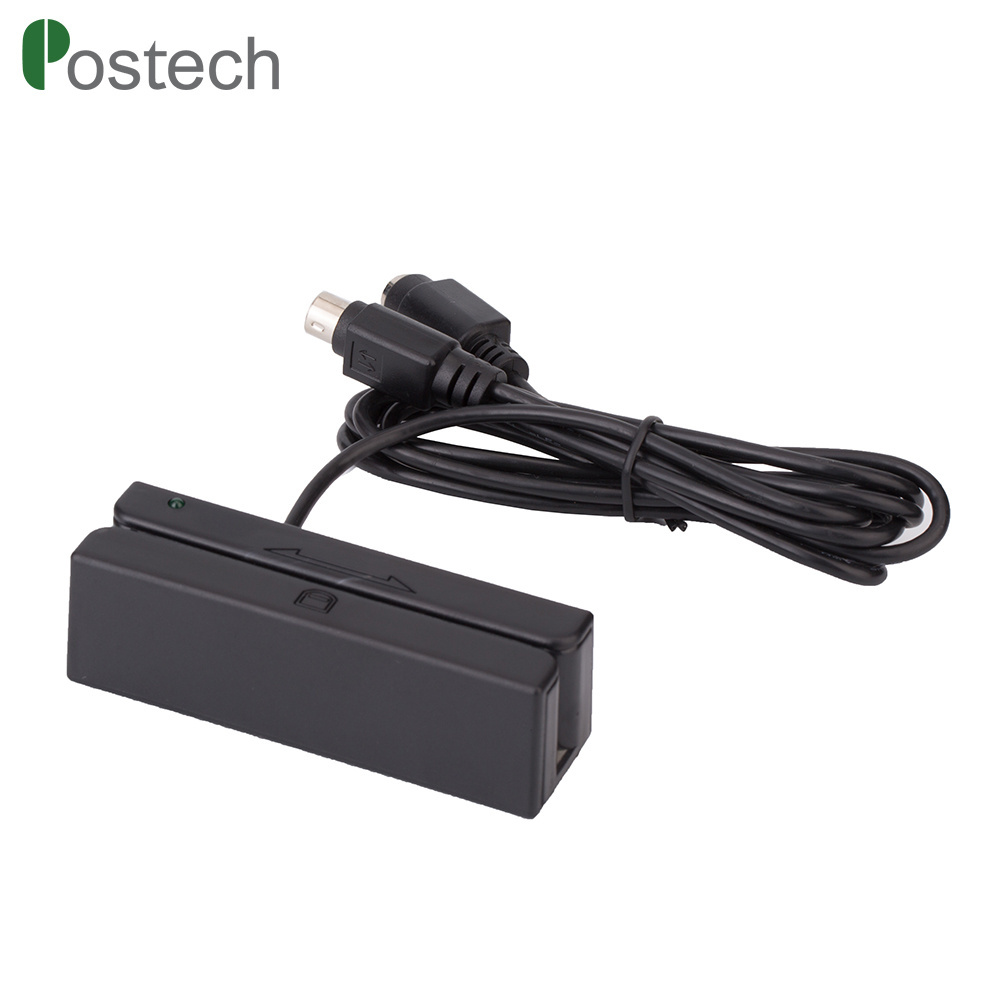

MSR100 USB magnetic card reader
Magnetic Stripe Card Reader MSR100 can read Track 1, 2 and 3 hi/lo-co magnetic cards in Bi-direction and is designed to offer a card reading solution for ISO 7811/12 formats.
1, With indication of light
2, Low power consumption, good compatibility
3, ISO 7811/12/13/14
4, Easy Programmable
5, RS232/PS2/USB
6, Cards can be swiped and read in both directions.
7, Readers can be affixed to most computer keyboards or to any flat surface,
8, Can be connected to any PC or Mac via keyboard wedge or USB interface.
| Technic Details: | Recording Density: 201 BPI, 75 BPI or 210 BPI |
| Recording Capacity: | 79 Characters, 40 Characters or 107 Characters |
| Power Supply: | +5V DC ±5% |
| Power Consumption: | 65mA(max.) |
| Head Function: | Read only 1.5mm |
| Card Thickness: | Plastic 0.76 ± 0.08mm |
| Operation Speed: | 10- 150cm/sec |
| Error Rate: | Less than 0.5% |
| Interface: | RS232, PS2, USB or TTL is available |
| Dimension: | 90 x 26 x 28mm |
| Operation Locus: | Indoors only |
| Cable Length: | 150cm |
| Lifetime of Header: | 800,000 card passes (1 pass : one swipe) |
| Weight: | Appro. 100g |
1. Our company has the lowest price with the same quality among the brothers' manufactures
2. 2 Year warranty
3. The existence of quality, a replacement freight from ourfull commitment
