GIS data collection T17 with 3G, blue tooth and NFC, handheld gps survey

GIS data collection T17 with 3G, blue tooth and NFC, handheld gps survey

FOB Reference Price: Get Latest Price

≥1 Pieces

US $580

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Processor:: 806 MHz

RAM:: 512MB

OS:: Windows mobile 6.x

Keyboard:: 27 Numeric+ programmable keys

Frequency:: GPS L1, BeiDou B1

Channel:: 167 channels

Quick Details

Place of Origin:: Shanghai, China

Product name:: NCT T17

ROM:: 4GB

Processor:: 806 MHz

RAM:: 512MB

OS:: Windows mobile 6.x

Keyboard:: 27 Numeric+ programmable keys

Frequency:: GPS L1, BeiDou B1

Channel:: 167 channels

Description:

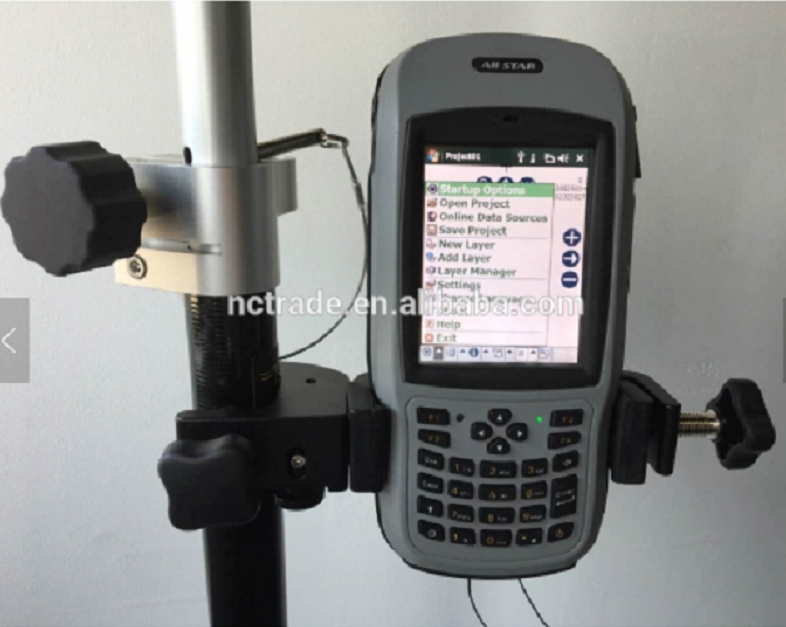

The Thunder industrial handheld features a combination of connectivity options and standard features such as a dedicated GNSS receiving board, DB9 Series COM Port, Long Range Bluetooth, NFC, Wi-Fi and 3G. This provides a complete solution for high-accuracy GIS applications in any environment. The IP rating of this receiver makes it suitable for field use. The Thunder Industrial Handheld comes ready for work with application possibilities ranging from power, agriculture and geological industries to forestry, field service and GIS/Surveying

Specifications:

Handheld GPS/GPS Controller
NCT T17
Overview
	Processor	806MHz
	ROM	4GB
	RAM	512MB
	Operation System	Windows Mobile 6.X
	Multi-Language	√
	Keypad	27 numeric + programmable keys
	Mic	√
	Speaker	√
	Display	3.7" sunlight readable with integrated touch screen
	Display resolution	480 x 640
	Camera	5 megapixel
	Dimension	200mm x 96mm x 32mm
	Weight	515g with battery
GNSS Performance
	GPS L1	√
	BDS B1	√
	GLONASS L1	√
	Channels	167
	NMEA-0183	√
	External antenna	√
Accuracy (Internal Accord accuracy)
	Autonomous	3m
	SBAS	2.5m
Time to First Fix
	Hot start	1s
	Warm start	29s
	Cold start	29s
	Re-acquisition	1s
Communications and Data Storage
	Bluetooth 2.1 class II Long range Bluetoot	Optional (along with standard bluetooth)
	NFC	Optional
	GSM/3G (WCDMA)	3G (WCDMA)
	WIFI	√
	USB port	Type B USB
	Serial port	BD9
	Storage extension	TF card, up to 32GB
Power
	DC input	DC 5V,1A
	Detachable Li-ion battery	6,500mAh, 3.7V
Environment Specification
	Operating temperature	-20℃ ~ +60℃
	Storage temperature	-30℃ ~ +70℃
	Sand, dust&water	IP54
	Drop	1.2m protection
Accessory
	Standard accessory	DC adapter, USB cable, Serial cable, Battery, Strap with Stylus, Screen protection film and User guid(Electronic Edition)

	Optional accessory	Mounting bracket and Pole (Claw) Clamp, External GNSS antenna, External antenna cable

Software Detail:

Package

Our Service

Our warranty policy:

1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.

2.Product in warranty please send us photos to show the problem . And then we will decide to send you parts or you send the instrument back to us to repair . We are responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct ly to us.

3.For problem out of the warranty period or warranty liability,we will judge the prob le m and quoted for you.You need to pay double-run freight and the maintena n ce cost.

4. For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man-made damage of the instrument is not cover e d in warranty liab i lity.Warranty only aimed at the problem caused by the product quality.

Our Technical Support:

Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).

For all GNSS and optical instrument, you will get the user manual and operating video.

For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.

For all of the products we offer lifelong and 24 hours technical support.

Special services:

If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.

We offer GNSS raw data process and CAD drawing for survey field end users.

If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.

FAQ

1.Whats your payment method ?

We accept T/T in advance,L/C at sight,Western Union,Paypal ,Secure Payment(Alibaba) and Credit Card.For L/C payment ,some countries and some models are not ava i lable,for PayPal payment,you need to pay additional charge by Ebay company about 4% of the total Amount.

2.How can you guarantee the safety of my funds?

Trust is always a big problem for international trade,we believe good busine s s credit and reputation is the most important for businessman.We recommend Trade Assurance service by Alibaba Group.We wont get the fund unless you get the product and confirm the payment.

3.What Countries do you ship to?
We ships goods to almost all countries by express ,air or sea. And we will inform you if we cant ship to your country.

4.Does NCT sell second hand renewed instruments ?
We do not sell any second hand or renewed equipment. Everything we sell is brand new.For some instrument we may need to test or check the language before delivery,but we do it very carefully.
