Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
6500X800X1200MM
-
Weight:
-
6000 kg, about 5 tons
-
Feeding width:
-
customized
-
Marketing Type:
-
cheap price
-
Material thickness:
-
0.3-0.8mm galvanized steel
-
Producting speed:
-
5-12m/min
-
Roller station:
-
About 16 stations
-
Main Power:
-
7.5KW
-
Cutting method:
-
Hydraulic Cutting Cr12mov
-
Material of Shaft:
-
45# steel
-
Way Of Drive:
-
Chain drive
-
Roller material:
-
45# forged steel, surface coated with chrome
-
Hydraulic Station Power:
-
7.5KW
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Galvanized steel sheet
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
380v/220v
-
Dimension(L*W*H):
-
6500X800X1200MM
-
Weight:
-
6000 kg, about 5 tons
-
Feeding width:
-
customized
-
Marketing Type:
-
cheap price
-
Material thickness:
-
0.3-0.8mm galvanized steel
-
Producting speed:
-
5-12m/min
-
Roller station:
-
About 16 stations
-
Main Power:
-
7.5KW
-
Cutting method:
-
Hydraulic Cutting Cr12mov
-
Material of Shaft:
-
45# steel
-
Way Of Drive:
-
Chain drive
-
Roller material:
-
45# forged steel, surface coated with chrome
-
Hydraulic Station Power:
-
7.5KW
Product Description
Galvanized k-style steel gutters are the strongest of all the different metals that are commonly available for gutter systems. Thickness of gutter is 0.4mm-0.8mm, raw material: Aluminum, Galvanized steel, Painted steel, Galvalume, etc.
We also make Half Round Gutter, C-Square Gutter, Velley Gutter, S Gutter, Half Round Gutter or according to your profile drawing.
In rainwater goods system, we could offer you square pipe roll forming machine (rectangular downspouts roll forming machine) and round pipe roll forming machine (round corrugated downspouts roll forming machine) also a separate elbow machine. We also can make forming and bending in one machine, it will help you to improve the production efficiency and the labor cost.
We can make different solutions according to your requirement and drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.
Main features of
Downpipe Roll Forming Machine
1.Material thickness:0.3-0.6mm
2.Forming speed: 5-12m/min (EXCLUDING CUTTING STOP TIME)
3.Forming roller: about 16 groups
4.Main motor power: 7.5KW
5.Hydraulic station power:4KW
6.Roller material: 45# forged steel, surface coated with chrome
7.Main shaft material: 45# steel,70mm
8.Hydraulic cutting pressure: 10-12Mpa
9.Cutting method: hydraulic powered, cutting after roll forming.
10.Cutting blade material: Cr12Mov quenching treatment
11.Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm
12.Drive method:Chain drive, made in China
Profile we can make
Detailed Images
Decoiler:3 ton passive coiler
Coil inner Diameter: ￠460mm～520mm
Max out diameter of the coil: ￠800mm
Expansion: with 4 palms, with brake
Max Coil Width: 500mm

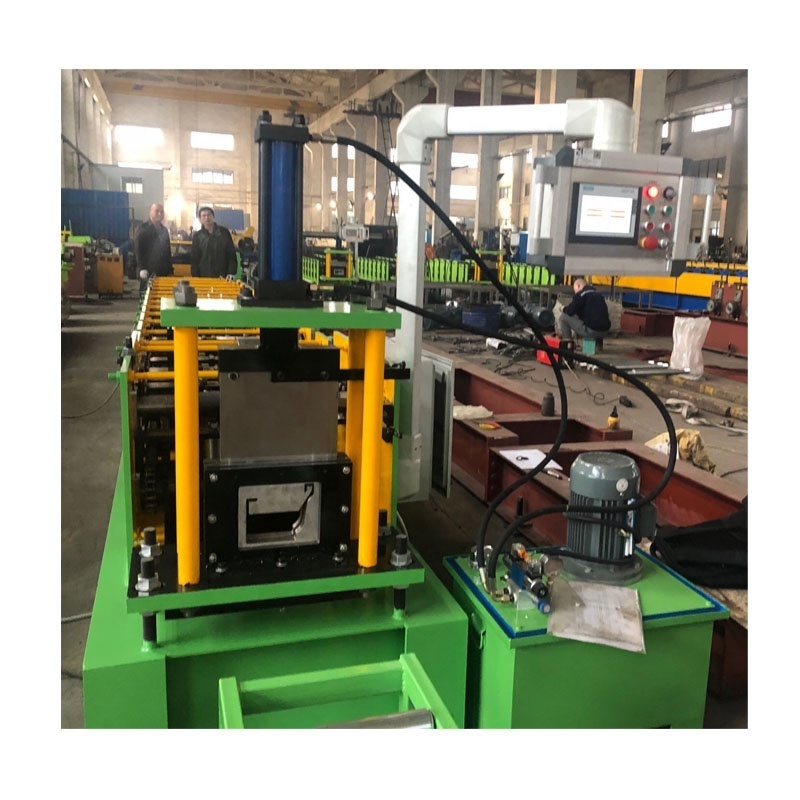

Cutting system
1. The cutter blade material: Cr12mov HRC58-62 degree
2. Cutting after forming: Cut the sheet after roll forming to required length
3. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
4. Length measuring: Automatic length measuring
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
It adopts welded steel and supported roller to transmit the products.
Size：4000*1350*1000mm
Product Application
Rain gutter is
a channel at the lower edge of a roof for carrying away rain, or a side of a road that is lower than the center of the road, where water and garbage collectstters.
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Our Company
Our customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, Rwanda,UNITED ARAB EMIRATES,Tanzania,Kenya,Philippines, Indonesia,South Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers’ requirements when and where they need.
