Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1300*900
-
Cutting Thickness:
-
20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
looke
-
Weight (KG):
-
1500 KG
-
Configuration:
-
ipg laser source
-
Model:
-
1390
-
Working area:
-
1300*900mm working area
-
Laser source:
-
1000/1500/2000/3000W Raycus/ MAX fiber laser source
-
Laser cutting head:
-
Raytools or WSX laser head
-
Bed structure:
-
High rigidity welded steel framework
-
Guide rail:
-
Taiwan Hiwin linear square guide rail 25mm
-
Transmission:
-
X,Y with helical gear rack ,Z with TBI ball screw
-
Laser power:
-
1000W / 1500W/2000W / 3000W/4000W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Color:
-
Other
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1300*900
-
Cutting Thickness:
-
20mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
looke
-
Weight (KG):
-
1500 KG
-
Configuration:
-
ipg laser source
-
Model:
-
1390
-
Working area:
-
1300*900mm working area
-
Laser source:
-
1000/1500/2000/3000W Raycus/ MAX fiber laser source
-
Laser cutting head:
-
Raytools or WSX laser head
-
Bed structure:
-
High rigidity welded steel framework
-
Guide rail:
-
Taiwan Hiwin linear square guide rail 25mm
-
Transmission:
-
X,Y with helical gear rack ,Z with TBI ball screw
-
Laser power:
-
1000W / 1500W/2000W / 3000W/4000W
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Color:
-
Other
Product Description

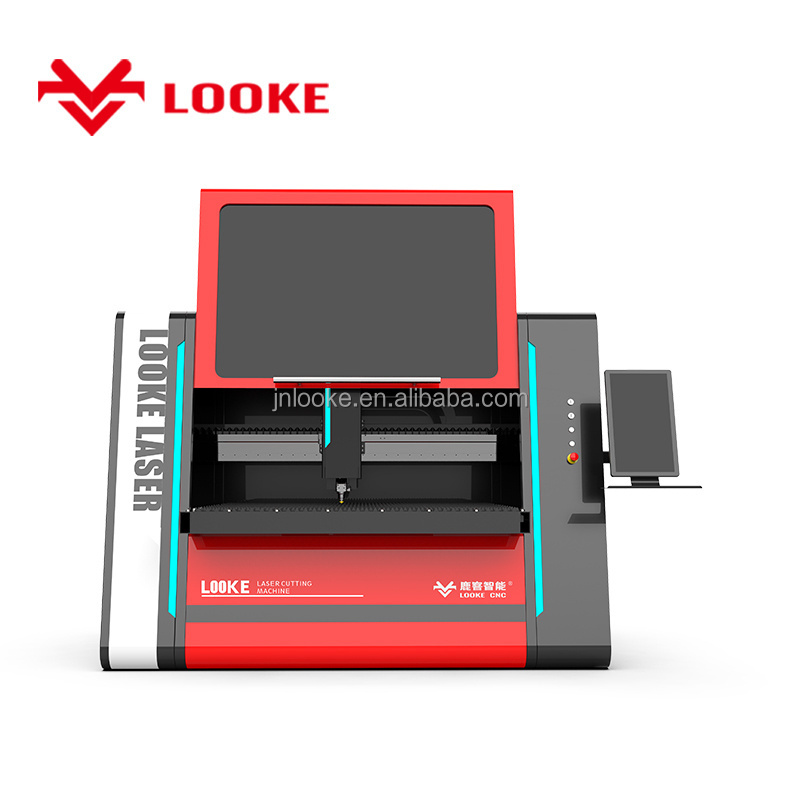

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system,
it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber ,it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming,
with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Specification
|
Model
|
LOOKE-1390 1310 1313 Fiber laser cutting machine
|
|
Working area
|
1300*900mm working area
|
|
Laser source
|
1000/1500/2000/3000W Raycus/ MAX fiber laser source
|
|
Laser cutting head
|
Raytools or WSX laser head
|
|
Bed structure
|
High rigidity welded steel framework
|
|
Table surface
|
Blade table
|
|
Guide rail
|
Taiwan Hiwin linear square guide rail 25mm
|
|
Transmission
|
X,Y with helical gear rack ,Z with TBI ball screw
|
|
Motors and drivers
|
FUJI servo motor & driver, X,Y axis 750w, Z axis 400w
|
|
Control system
|
FSCUT 1000S/2000C control system
|
|
Software
|
CypOne laser cutting software with BMC 1603 control card
|
|
Chiller
|
S&A, Dual Temperature Control or Hanli brand chiller
|
|
Reducer
|
Japan imported SHIMPO reducer
|
|
Tool sensor
|
Automatic tool sensor
|
|
Lubrication system
|
Electric automatic lubrication system
|
|
Pressure valves
|
High-pressure(N2,air):2.5MPa(Shuoda)
|
|
|
Low-pressure(O2):1MPa(SMC)
|
|
Electronic Proportional Valve
|
SMC from Japan
|
|
Electronic Components
|
SCHNERDER, Omron
|
|
Max. idling speed
|
80m/min
|
|
Positioning Accuracy
|
±0.03mm
|
|
Re-Positioning Accuracy
|
±0.02mm
|
|
Instruction format
|
G code *.u00 *.mmg *.plt
|
|
Working voltage
|
AC380V, 3 phase,50-60hz(for more than 1000w)
AC220V, single phase, 50-60hz(for 1000w) |
|
Others
|
Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc
|
