Quick Details
-
Insulation Material:
-
none
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MICC
-
Model Number:
-
Nickel Chrome Heating Wire
-
Brand:
-
MICC
-
product name:
-
Nickel Chrome Heating Wire
-
temperature:
-
1200
-
shape:
-
wire or strip
-
Warranty:
-
1 year
-
Diameter(mm):
-
customized
-
type:
-
all types available
-
color:
-
bright o oxidized
-
origin:
-
china
-
usage:
-
industrail usage
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Aluminum Clad Steel
-
Conductor Type:
-
Solid
-
Insulation Material:
-
none
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MICC
-
Model Number:
-
Nickel Chrome Heating Wire
-
Brand:
-
MICC
-
product name:
-
Nickel Chrome Heating Wire
-
temperature:
-
1200
-
shape:
-
wire or strip
-
Warranty:
-
1 year
-
Diameter(mm):
-
customized
-
type:
-
all types available
-
color:
-
bright o oxidized
-
origin:
-
china
-
usage:
-
industrail usage

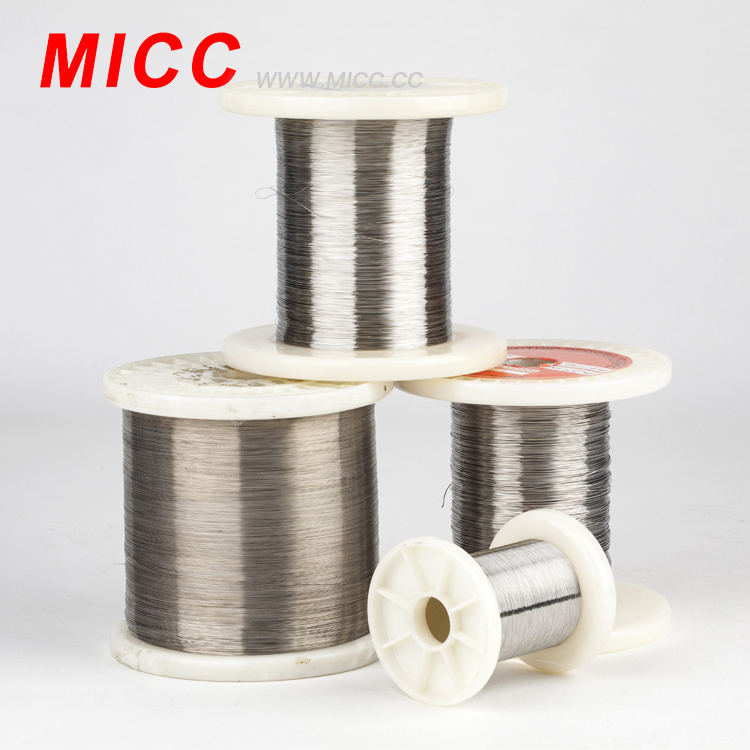

MICC High temperature strength Strong plasticity Nickel Chrome Heating Wire
Resistance wire(heating wire) used at operating temperatures up to 1200. Its chemical composition gives
good oxidation resistance especially under conditions of frequent switching or wide temperature fluctuations.
good oxidation resistance especially under conditions of frequent switching or wide temperature fluctuations.
Applications include heating elements in both domestic and industrial appliances and in control resistors.
Ni-Cr materials are widely used in industrial electric furnaces, household appliances and far-infrared devices
because of their high temperature strength and strong plasticity.
Ni-Cr materials are widely used in industrial electric furnaces, household appliances and far-infrared devices
because of their high temperature strength and strong plasticity.
| Main property of NiCr electric heating alloy | ||||||||
| property | type | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | ||
|
Main chemical
composition% |
Ni | Rest | Rest | 55~61 | 34~37 | 30~34 | ||
| Cr | 20~23 | 28~31 | 15~18 | 18~21 | 18~21 | |||
| Fe | Rest | Rest | Rest | |||||
|
Max continuous
Temp.of element(℃) |
1200 | 1200 | 1150 | 1100 | 1100 | |||
| resistivity(mm²/m) | 1.09 | 1.09 | 1.12 | 1 | 1.04 | |||
| Density((g/cm³)) | 8.4 | 8.4 | 8.2 | 7.9 | 7.9 | |||
| Thermal conductivity(KJ/M.h℃) | 60.3 | 60.3 | 45.2 | 43.8 | 43.8 | |||
|
Coefficient of liner
expansion(a*10-5/℃) |
18 | 18 | 17 | 19 | 19 | |||
| Melting point (℃) | 1400 | 1400 | 1390 | 1390 | 1390 | |||
| Elongation(%) | 720 | 720 | 720 | 720 | 720 | |||
| Micrographic structure | Austenitic | Austenitic | Austenitic | Austenitic | Austenitic | |||
| Magnetic property | NONE | NONE | NONE | NONE | NONE | |||
