Quick Details
-
Band range:
-
visible light
-
Mode of operation:
-
continuous
-
Incentive mode:
-
electric excitation type
-
Work matter:
-
semiconductor
-
Light path::
-
reflection type outer light path
-
Output:
-
power type
-
Channel:
-
single pass
-
Transmission signal:
-
single power type
Quick Details
-
Place of Origin:
-
China
-
Model:
-
YD - D635P5 - A10-30
-
Type:
-
laser head
-
Band range:
-
visible light
-
Mode of operation:
-
continuous
-
Incentive mode:
-
electric excitation type
-
Work matter:
-
semiconductor
-
Light path::
-
reflection type outer light path
-
Output:
-
power type
-
Channel:
-
single pass
-
Transmission signal:
-
single power type
635NM 1MW 5MW Red light point laser Red light point laser with glass lens DC2.8V-5.2V
Specification:
| Product model | YD - D635P5 - A10-30 |
| Overall dimensions | 10 * 30 mm |
| output power | 5 mw |
| power supply voltage | DC2.8-5.2 V |
| output wavelength | 635 nm |
| Speckle pattern | Red light point (adjustable line width) |
| Working current | 40 ma or less |
| Divergence Angle | 0.5-1 mard |
| Working temperature | - 10 ℃ ~ 50 ℃ |
| Storage temperature | - 40 ℃ ~ 55 ℃ |
| Working medium | Semiconductor laser |
| Laser way | Electric excited laser |
| works | Continuous laser |
| The service life of the | Continuous use is greater than 6000 hours |
| Lens material | High quality glass cylinder lens/high quality acrylic lens |
Selling point:
1. All-metal packaging, improved heat dissipation performance and long service life
Pure copper assembly is adopted in the product, which can be quickly cooled by laser diode. The external aluminum parts can be treated with anodic oxidation, which can effectively prevent static electricity, and the copper parts can be oxidized and blackened to achieve insulation effect.
2. Strong line effect
The product is specially designed for optical system, high quality optical glass lenses or high quality acrylic lenses.
3. The service life of the precision laser is up to 10,000 hours, and some products are raised to 5000 hours
The company adopts the original imported (mitsubishi, QSI) laser diode or domestic original quality diode, with stable performance and long service life.

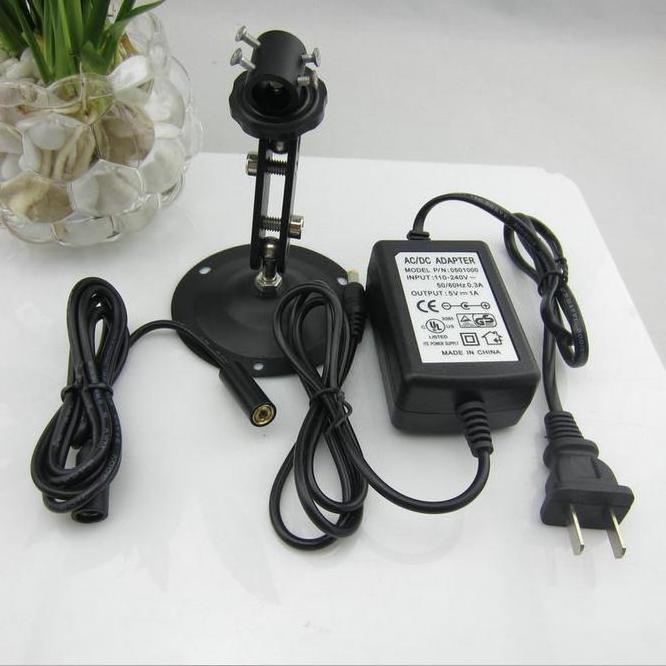

4. Provide more convenient and convenient laser selection accessories for customers
The company's laser products provide special power adaptor and heat sink support, which is recommended to be used together with better effect.
