Quick Details
-
Certificate:
-
CE
-
OEM/ODM:
-
Supported
-
Motor Type:
-
DC motor
-
Motor core:
-
pure copper
-
Boom Length:
-
Max 6 Meters
-
Arm Type:
-
Straight,folding,fencing
-
Name:
-
DC motor LED barrier gate
-
Feature:
-
Run speed adjustable,arm auto reverse
-
Usage:
-
Parking lots/toll gate/high way
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zongshen
-
Speed:
-
1.5s-6s
-
Certificate:
-
CE
-
OEM/ODM:
-
Supported
-
Motor Type:
-
DC motor
-
Motor core:
-
pure copper
-
Boom Length:
-
Max 6 Meters
-
Arm Type:
-
Straight,folding,fencing
-
Name:
-
DC motor LED barrier gate
-
Feature:
-
Run speed adjustable,arm auto reverse
-
Usage:
-
Parking lots/toll gate/high way

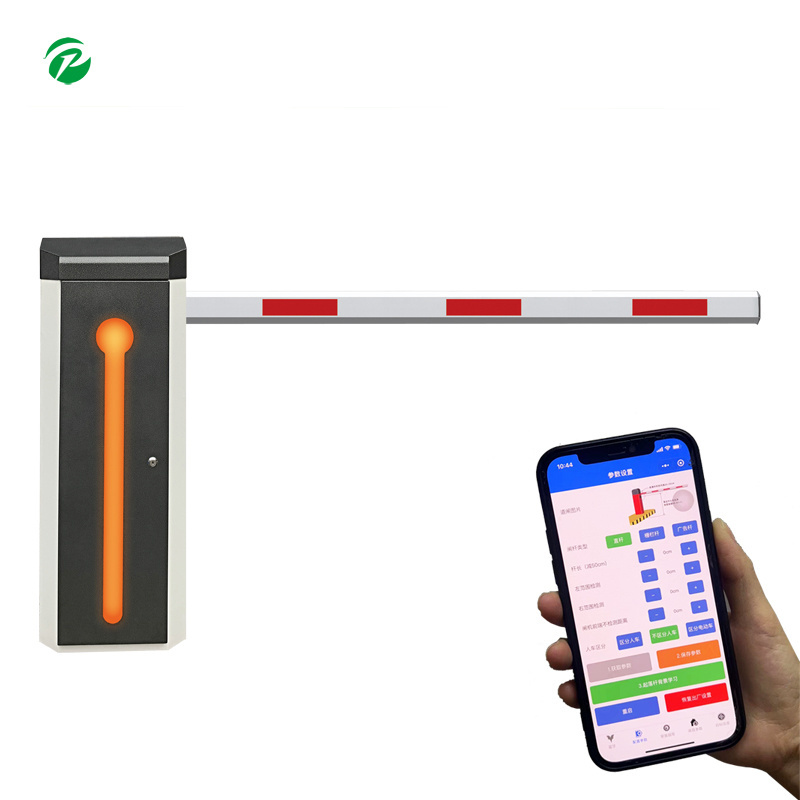

1.5s LED barrier gate DC24V brushless motor led parking barriers high torque copper motor core automatic boom barrier gates
LED barrier gate specification:
|
Product Name |
1 .5s LED barrier gate DC24V brushless motor led parking barriers high torque copper motor core automatic boom barrier gates |
|
Housing material |
1.5 mm cold-roller sheet |
|
Housing Painting |
Powder coating |
|
Housing size |
3 65 mm * 2 93 mm * 9 80 mm |
|
Arm material |
Aluminum Alloy |
|
Arm length |
Max 6m |
|
MTBF |
5 million cycles |
|
Duty Cycle |
100% |
|
Weight |
50 kg |
|
Power |
1 6 0 W |
|
Open/close time |
1.5s-6 s |
|
Remote control distance |
≥ 30meters |
|
IP Grade |
IP54 |
|
Operating Temperature |
-35 ° C to +80 ° C |
|
Motor |
High performance DC24V brushless motor |
|
Power supply input |
AC 220/110V ± 10%, 50/60Hz |
|
Package Size |
102.5 *3 6.5 cm* 47 cm |
|
LED light |
Green and red led are used inside for indicating the position of the beam |
LED barrier gate Feature:
♣Count mode interface.
♣Loop detector connector is available.
♣Auto-delay when closing(adjustable).
♣Remote control to operate the barrier gate.
♣Automatic arm lift function when power off.
♣Infrared sensor signal anti-smashing interface.
♣The operation speed can be adjusted 0.6s to 6s.
♣High-sensitivity arm auto reverse function(intersity can be adjustable).
♣Arm automaticlly locking when power off and open the barrier gate by motor wheel.
♣Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage on the vehicle and barrier machine core.
LED barrier gate Details:
LED barrier gate Service:
Service for free:
♣Technical service is supplied.
♣One year free service is supplied(not including the arm and remote).
♣OEM:we can customized machine case,color,logo,which according to you detailed requirements.
Service for charging:
♣Broken by wrong installation improper voltage.
♣Overdue service items are out of our promise.
♣The surfaces of the barrier destroyed by wrong installation usage.
FAQ:
1.Are you trading company or manufacturer?
We are a professional barrier gate manufacturer,industry and trade integration.
2.How long is your delivery time?
Generally it is 2-5days if the goods are in stock.And delivery time can be negotiable when you have big order quantity.
3.Do you provide samples?
The MOQ of our products is 1pcs.so we welcome sample order to test and check quality.
4.How can we guarantee quality?
Always a pre-production sample before mass production and always final inspection before shipment.
5.Do you provide quality guarantee and after sale service?
We have 1 year quality guarantee,our well-trained and passionate sales and professional engineers can provide you with timely help.
6.Accepted Delivery Terms:DHL/Fedex/TNT/SEA/AIR or your requirments.quantity over 10 sets better to choose by sea to reduce cost
Accepted payment:Western Union,Paypay,TT or ALIBABA.
Any question,pls feel free to contact me by email or skype!
