Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
YYPS-1
-
Max. Current:
-
20mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
hydraulic mechanical water oil pressure switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
36VDC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
YYPS-1
-
Max. Current:
-
20mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
hydraulic mechanical water oil pressure switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Description hydraulic mechanical water oil pressure switch
The built-in piston is connected with a precision spring. When the pressure changes, the amount of expansion and contraction of the spring changes accordingly. When the pressure reaches the set value, the preset mechanical structure is triggered and a switch signal is issued

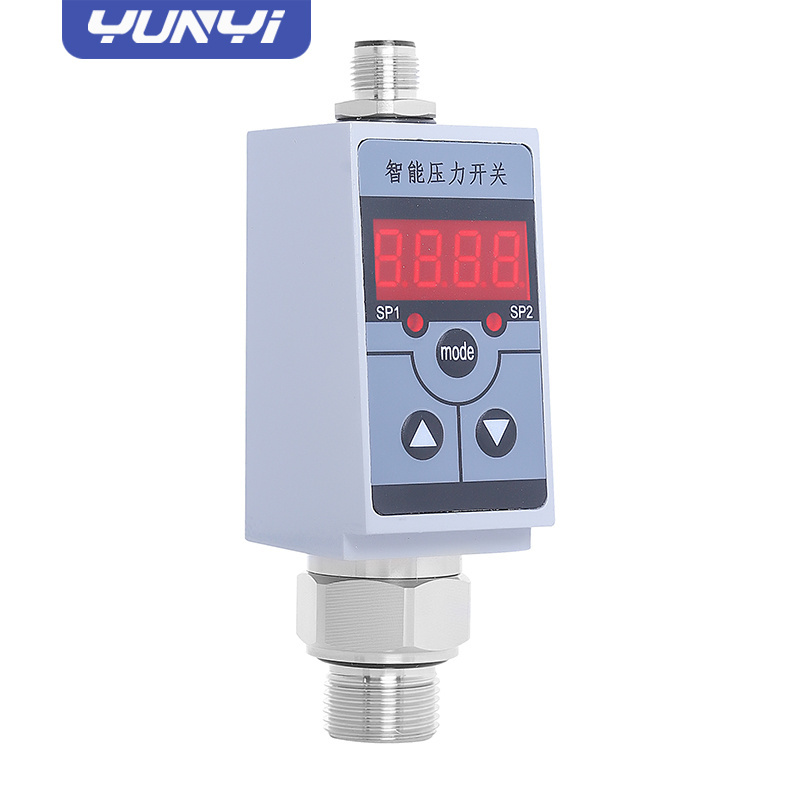

Detailed Images hydraulic mechanical water oil pressure switch
Specification hydraulic mechanical water oil pressure switch
|
Measuring range: |
See technical data below for details |
|
Hysteresis |
10…20% (Optional 25%-35%) |
|
Measuring error: |
3% |
|
Output: |
NO / NC programmable |
|
≤ DC 42V , 1A |
|
|
≤ DC 115V , 0.15A |
|
|
≤ AC 42V , 3A |
|
|
≤ AC 125V , 3A |
|
|
≤ AC 250V , 0.5A |
|
|
Medium temp. |
-20…85℃ (Optional -40…160℃) |
|
Protection class: |
IP65 (Optional IP67) |
|
Electrical connect. |
Terminals |
|
Material: |
Diaphragm (≤12bar): NBR |
|
Piston (>12bar): Steel with NBR sealing |
|
|
Process connection: Zinc plated steel |
|
|
Housing: Engineering plastic |
|
|
Wiring |
|
|
Connecting thread material |
Model |
Max. Pressure (bar) |
Burst Pressure (bar) |
Measuring range |
Measuring error (bar) |
Fixed hysteresis (bar) |
Weight (kg) |
|
Brass |
-02,5M… |
25 |
55 |
0.2…2.5 |
3% |
10%…20% / Optional 25%...35% |
0.1 |
|
-005M… |
25 |
55 |
0.8…5.0 |
||||
|
-012M… |
25 |
55 |
1…12 |
||||
|
Steel |
-050S… |
200 |
900 |
5…50 |
0.1 |
||
|
-100S… |
300 |
900 |
10…100 |
||||
|
-200S… |
300 |
900 |
20…200 |
||||
|
-400S… |
500 |
1230 |
50…400 |
Note: 1 bar=1.02kg/cm2=0. 1 Mpa
Features hydraulic mechanical water oil pressure switch
Compact structure, using DIN standard plugs, extremely convenient wiring, wide measuring range (0...400bar), high overload capacity (up to 1230bar), high repeatability, with normally open or normally closed contacts, gold-plated contacts, touch Point capacity is large. Can be used for: water, oil, gas pressure measurement.
Dimension hydraulic mechanical water oil pressure switch
