Quick Details
-
Dimension(L*W*H):
-
5500*1800*2000
-
Voltage:
-
380v
-
Power:
-
45kw
-
Weight (KG):
-
3500
-
Inner wall material:
-
304 stainless steel plates
-
Kiln body outer plate:
-
aluminium alloy orange peel embossed corrugated board
-
control mode:
-
touch screen automatic
-
fan circulation mode:
-
top bolwing,forced convection circulation
-
heating mode:
-
electrical heating or Thermal oil boiler heating
-
steam treatment:
-
dynamic condensation
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sawmill-world
-
Effective Volume:
-
4200*1300*1600
-
Dimension(L*W*H):
-
5500*1800*2000
-
Voltage:
-
380v
-
Power:
-
45kw
-
Weight (KG):
-
3500
-
Inner wall material:
-
304 stainless steel plates
-
Kiln body outer plate:
-
aluminium alloy orange peel embossed corrugated board
-
control mode:
-
touch screen automatic
-
fan circulation mode:
-
top bolwing,forced convection circulation
-
heating mode:
-
electrical heating or Thermal oil boiler heating
-
steam treatment:
-
dynamic condensation
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
Product Description

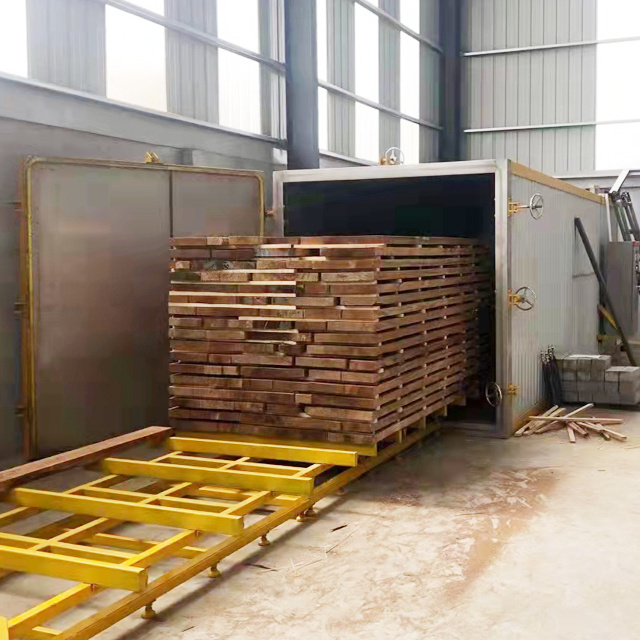

Carbonized Kiln
High Temperature Heat Treatment Equipment
Inner wall material：304 stainless steel plates；3.0mm thickness
Kiln body outer plate：aluminium alloy orange peel embossed corrugated board
Kiln body skeleton：Carbon steel square pipe and I-beam steel structure
Single open kiln door：aluminium alloy structure
control mode：touch screen automatic
management style：no need special person look after, only occasionally inspection
fan circulation mode：top blowing ,forced convection circulation
heating mode：electrical heating or Thermal oil boiler heating
conditioning humidity：physical automatically is main, electric steam is assistant
cooling mode：forced cooling
steam treatment：by dynamic condensation
transfer mode：electric kiln truck
equipment platform：I-beams steel structure
loading timber mode：all stainless steel rail car
transport mode: whole machine（40-50 m³is parts）
field installation :（40-50 m³is on- site manufacture）
Kiln body outer plate：aluminium alloy orange peel embossed corrugated board
Kiln body skeleton：Carbon steel square pipe and I-beam steel structure
Single open kiln door：aluminium alloy structure
control mode：touch screen automatic
management style：no need special person look after, only occasionally inspection
fan circulation mode：top blowing ,forced convection circulation
heating mode：electrical heating or Thermal oil boiler heating
conditioning humidity：physical automatically is main, electric steam is assistant
cooling mode：forced cooling
steam treatment：by dynamic condensation
transfer mode：electric kiln truck
equipment platform：I-beams steel structure
loading timber mode：all stainless steel rail car
transport mode: whole machine（40-50 m³is parts）
field installation :（40-50 m³is on- site manufacture）
|
Model
|
SH5
|
SH10
|
SH15
|
|
Internal Size
|
5500*1800*2000MM
|
8500*1800*2200MM
|
11700*1800*2200MM
|
|
Wood Pile Size
|
4200*1300*1600MM
|
7200*1300*1950MM
|
1000*1300*1950MM
|
|
Volume
|
5 CBM
|
10 CBM
|
15 CBM
|
|
Electric Power
|
3KW
|
4.4 KW
|
6KW
|
|
Hot Power
|
45KW
|
54KW
|
72KW
|
European Beech
Red Oak
Poplar Wood at different temperature
Rubber Wood
Russia pinus sylvestris
Teak
