Quick Details
-
Applicable Models:
-
Many Cars
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P200
-
Warranty:
-
12 Months
Quick Details
-
Car Fitment:
-
ABG, Abarth
-
Voltage:
-
9V 30V
-
Power:
-
W
-
Applicable Models:
-
Many Cars
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P200
-
Warranty:
-
12 Months
Product Description

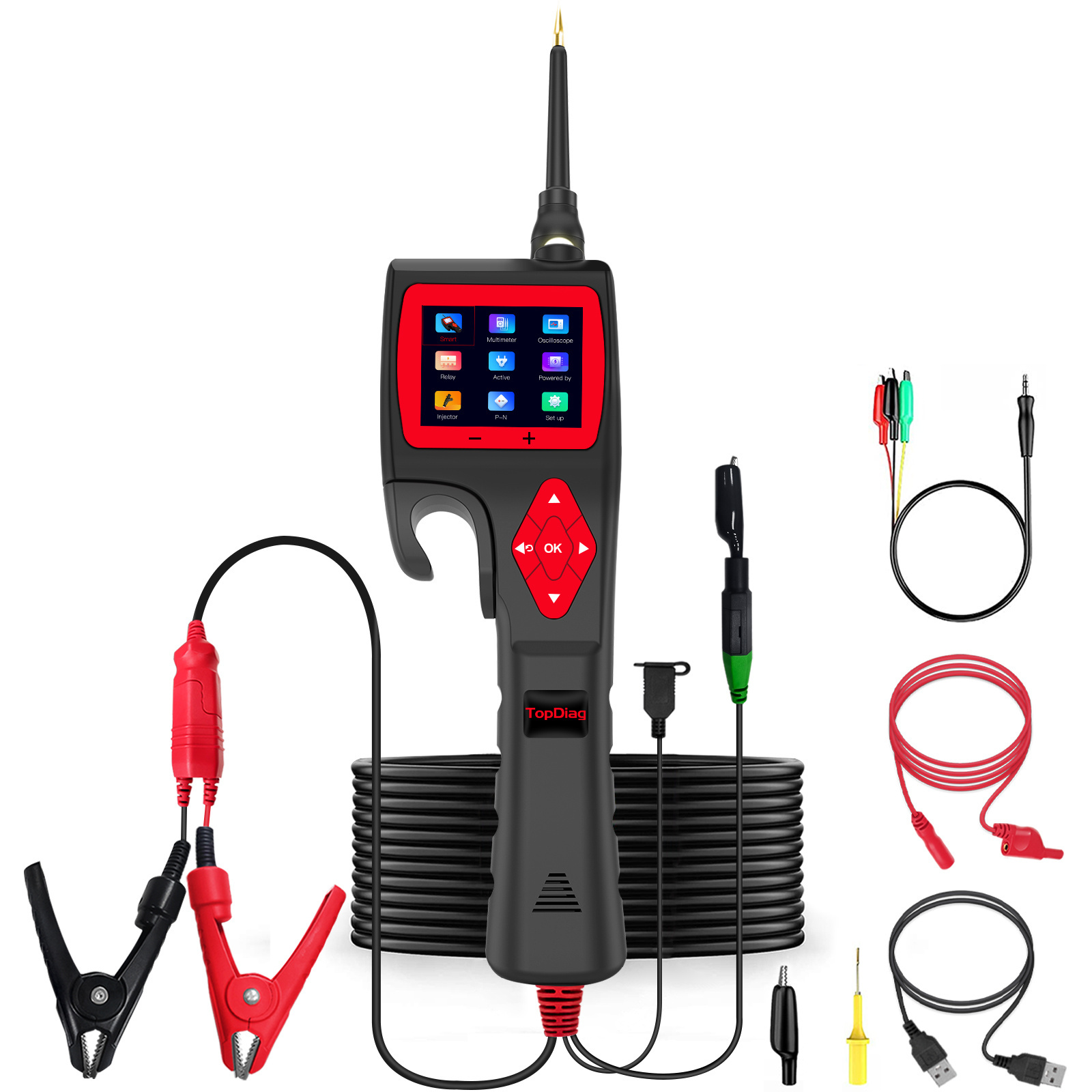

P200 SMART HOOK Powerful Probe
P200 SMART HOOK Powerful Probe new generation of intelligent circuit analyzer is the only one upgradeable circuit tester on the market. It is a tool for quickly testing all 9V-30V electronic systems. The test time is greatly shortened, convenient, fast and smarter!
1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3.Relay test
4.Injector test
5.Diode test
6.Oscilloscope function
7.0-5V adjustable power supply
8. Activation of vehicle components
9.Positive and negative polarity test
10.Intelligent circuit breaker protection (adjustable overload)
11.Screen style background optional
12.Network online upgrade
13.Built-in Multi Lingual.
Product specifications and parameters
① Display:............ (320*240 DPI) TFT true color display
② Working temperature: ........... 0-60°C (32-140 F°)
③ Storage temperature:...........40-70°C (-40-185 F°)
④ External power supply: ... 12V or 24V powered by battery
⑤ Minimum working voltage:...9V
⑥ Maximum working voltage: 30V
⑦ Maximum measuring voltage: 150V
⑧ Minimum measuring voltage: .....................0.1V
⑨ Resistance measurement range:... 1 ohm~200K ohm
⑩ Current measuring range: ..................... 0~18A
⑩ Maximum continuous current: ..................... 18A
Product packing list:
1) Main unit
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox
Language:English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thai, Indonesian, Filipino, Malay, Arabic, Korean, Japanese, Traditional Chinese;
Weight: 2.6KG
Size：38.5*29.2*10.7 CM
