Material: C arbon steel Q235,Q235B,Q195,aluminum plate and checker steel plate
- Product Details
- {{item.text}}
Quick Details
-
hall retractable tribue seats system:
-
Material: steel
-
Usage:
-
metal steel bleachers for football field
-
Color:
-
Customized Color
-
Application:
-
Sports Center
-
Function:
-
save space, can move grandstand to other place by pallet trucks
-
Key words:
-
Retractable Tribune
-
Suitable places:
-
Outdoor Location
-
Certificate:
-
ISO9001,CE and test report
-
Warranty:
-
5 Years
-
Combo Set Offered:
-
3
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongli Sports
-
Model Number:
-
ZL-101
-
hall retractable tribue seats system:
-
Material: steel
-
Usage:
-
metal steel bleachers for football field
-
Color:
-
Customized Color
-
Application:
-
Sports Center
-
Function:
-
save space, can move grandstand to other place by pallet trucks
-
Key words:
-
Retractable Tribune
-
Suitable places:
-
Outdoor Location
-
Certificate:
-
ISO9001,CE and test report
-
Warranty:
-
5 Years
-
Combo Set Offered:
-
3
Product Description

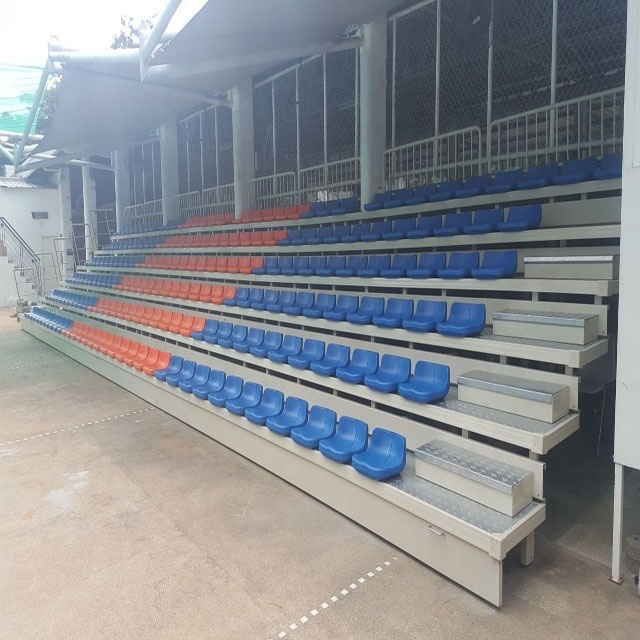

metal steel bleachers for football field
Product Application
1. Bleacher floor plate is checker plate. Thickness: >3.5mm
2. Bleacher fence is steel pipe. Pipe diameter: 38mm. Pipe thickness:2mm
After shot blast treatment , powder coating steel pipe.Color is according to customer’s requirement.
3.Various pipe of bleacher can meet national standard.Use black pipes.Then powder coating.
4.Bleacher colunm can be adjusted. Size:300mm*32mm.The whole grandstand has five levels.
The first level to fifth level: each levle’s width is 700mm.
The topest level: level width is 500mm
5.Bleacher’s frame use 50mm*30mm*2mm high quality steel pipe.
6.Main bleacher colunm steel pipe diameter is 48mm,thickness:3mm
|
SPECIFICATIONS
|
|
|
|
|||
|
Product Type
|
|
metal steel bleachers for football field
|
|
|||
|
Material
|
|
Carbon Steel Q235B,Q235,Q195 etc.
|
|
|||
|
Length and width
|
|
According to customer site to design
|
|
|||
|
Surface treatment
|
|
Hot galanized or powder coating
|
|
|||
|
Seat size
|
|
465mm- 520mm
|
|
|||
|
Loading capacity
|
|
can load 200kg-400kg/ seat
|
|
|||
|
Aisle
|
|
800mm-1000mm or customized
|
|
|||
|
Each level width
|
|
700mm-1000mm or customized
|
|
|||
Main Features
1. Easy installation
2. Strong and stable under structure
3. Unique design
4. Comfortable and pratical seat
5.Flexible seats configuration
6. Elegant appearance
Detailed Images
Bleacher front part
Chair part
Bleacher seat :can use plastic bucket seat, foldable seat etc.
Bleacher back part
Locking and handling system
: The locking system uses the equipment in the column foot position, designed to prevent the cart from moving, automatically locking and by releasing the device control panel. The telescopic system is automatic.
Certifications
Our Service
Production equipment
* View our Factory.
Installation site
* Engineers available to help customer to finish installation overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Packaging Details
|
If grandstand is small, we will finish installation,then load it into container.
If grandstand dimension is over container size,seats will be package with plastic bags then put into wooven bags or carton. Granstand structure will packed with plastic film.
|
|
