Quick Details
-
Speed:
-
350RPM
-
Frequency:
-
58.3Hz
-
Product:
-
500W 350RPM Maglev Generator
-
Rated power:
-
500W
-
Voltage:
-
12V/24/48V
-
Rated speed:
-
350rpm
-
Diameter:
-
260mm
-
Weight:
-
15kg
-
Starting torque:
-
less than 0.1NM
-
Rated torque:
-
13.64NM
-
Generator type:
-
AC 3 phase rare earth maglev generator
-
Item:
-
magnetic levitation generator
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ENGELEC
-
Rated Voltage:
-
500W
-
Speed:
-
350RPM
-
Frequency:
-
58.3Hz
-
Product:
-
500W 350RPM Maglev Generator
-
Rated power:
-
500W
-
Voltage:
-
12V/24/48V
-
Rated speed:
-
350rpm
-
Diameter:
-
260mm
-
Weight:
-
15kg
-
Starting torque:
-
less than 0.1NM
-
Rated torque:
-
13.64NM
-
Generator type:
-
AC 3 phase rare earth maglev generator
-
Item:
-
magnetic levitation generator
ENGELEC maglev generator 500w 350rpm low start torque for wind turbine high efficiency PMG Disc magnetic levitation generator
Price online is for type 500W 350RPM 12V
Features:
- Coreless, no hysteresis and cogging, no ion loss, low starting torque
- Axial magnetic field structure design is adopted to greatly improve the power density and torque volume ratio.
- The winding adopts unique precision winding process and new polymer material casting, which effectively reduces the copper loss o the winding
- The use of rare earth neodymium iron bring high-strength magnets. High power density and large output power.
- The generator adopts Class F Insulation, which has high protection level and strong overload capacity.
- Cast aluminum alloy housing and built-in compact structure make lighter weight and better stability
Data Sheet:
Pls note we can custom make different specficiation, like rated power, voltage, and rpm. Below data for general reference only
50W - 1000W
| Rated Power(KW) | 0.05KW | 0.1KW | 0.2KW | 0.5KW | 1KW |
| Rated Speed(RPM) | 250RPM | 200RPM | 300RPM | 350RPM | 300RPM |
| Rectified Rated Voltage(V) | 14V | 14V | 14/28V | 28/56V | 220V/56V |
| Rectified Rated Current(A) | 3.57A | 7.14A | 14.3/7.14A | 18/9A | 4.5/17.8A |
| Generator diameter(MM) | 160MM | 220MM | 260MM | 260MM | 320MM |
| Weight(kg) | 5KG | 9KG | 13KG | 15KG | 25KG |
| Start torque(Nm) | <0.1Nm | <0.1Nm | <0.1Nm | <0.1Nm | <0.12Nm |
| Rated torque(Nm) | 1.91Nm | 4.76Nm | 6.37Nm | 13.64Nm | 31.83Nm |
| Efficiency | >85% | ||||
| Winding Type | Y | ||||
| Insulation Resistance | 100Mohm Min(500V DC) | ||||
| Leakage Current(mA) | <5 mA | ||||
| Insulation | F class | ||||
| Working Temperature Rise | ≤70°C | ||||
| Working Temperature | -40°C — 120°C | ||||
| Generator | AC 3 phase rare earth maglev generator | ||||
| Structure | Outer rotor | ||||
| Stator type | coreless | ||||
| Housing material | Aluminum Alloy | ||||
| Shaft material | Carbon Steel/Stainless Steel | ||||
| Bearing | NSK or SKF | ||||
| Desigh lifetime | >20 | ||||
magnetic levitation generator
2000W - 10KW
| Rated Power(KW) | 2KW | 3KW | 4KW | 5KW | 10KW |
| Rated Speed(RPM) | 300RPM | 200RPM | 200RPM | 150RPM | 150RPM |
| Rectified Rated Voltage(V) | 220/380V | 220/380V | 380V | 380V | 380V |
| Rectified Rated Current(A) | 9/5.3A | 13.6/7.9A | 10.5A | 13.1A | 26.3A |
| Generator diameter(MM) | 380MM | 450MM | 550MM | 700MM | 770MM |
| Weight(KG) | 40KG | 50KG | 110KG | 160KG | 200KG |
| Start torque(Nm) | <0.12Nm | <0.12Nm | <0.15Nm | <0.15Nm | <1Nm |
| Rated torque(Nm) | 63.67Nm | 143.25Nm | 191Nm | 318.33Nm | 636.67Nm |
| Efficiency | >85% | ||||
| Winding Type | Y | ||||
| Insulation Resistance | 100Mohm Min(500V DC) | ||||
| Leakage Current(mA) | <5 mA | ||||
| Insulation | F class | ||||
| Working Temperature Rise | ≤70°C | ||||
| Working Temperature | -40°C — 120°C | ||||
| Generator | AC 3 phase rare earth maglev generator | ||||
| Structure | Outer rotor | ||||
| Stator type | coreless | ||||
| Housing material | Aluminum Alloy | ||||
| Shaft material | Carbon Steel/Stainless Steel | ||||
| Bearing | NSK or SKF | ||||
| Desigh lifetime | >20 | ||||
magnetic levitation generator
Pls you can tell us the rated power&rpm for quoting; and better with rated voltage; want inner rotor or outer rotor?
Custom made specification is also welcomed.
magnetic levitation generator

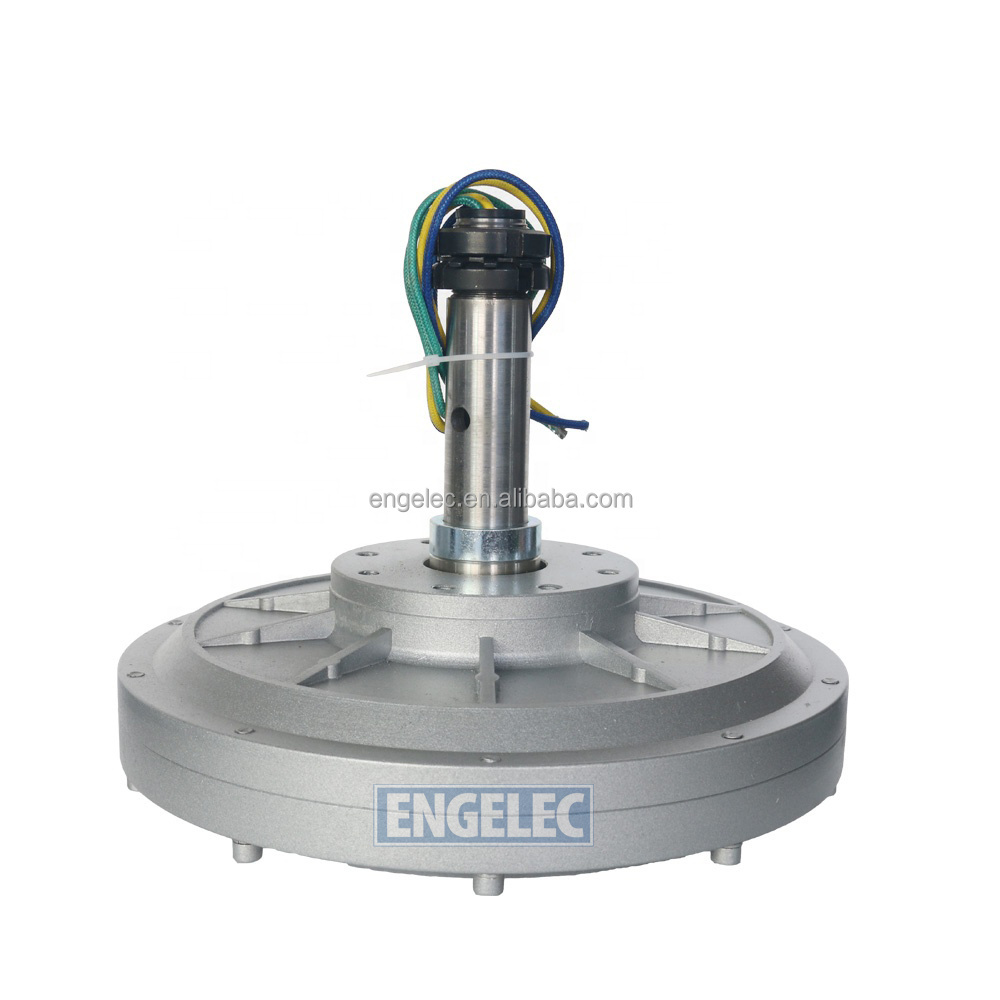

Generator Photos for reference
Generator with Flanges
Generator with Flanges painting in white
C ustom made different sizes of flanges
Custom made 8 holes bolts flanges
In wooden case packing
Application:
magnetic levitation generator
If you are interested in the generator, welcome to contact me!
