Quick Details
-
Hose Inner Diameter:
-
38 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Be focus
-
Voltage:
-
380V/220V/400V/110V
-
Power:
-
9/11kw, 9kw /11kw
-
Dimension(L*W*H):
-
2100*700*1200mm
-
Weight:
-
500 kg
-
Application:
-
Construction
-
After-sales Service Provided:
-
Engineers
-
Model:
-
06
-
Driven type:
-
Diesel /Electric
-
Capacity:
-
Available)
-
Spray height:
-
50m
-
Spray horizon distance:
-
100m
-
The diameter of pipe:
-
38mm
-
The max size of material:
-
6mm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Max. Conveying Distance:
-
100m
-
Max Aggregate Size:
-
6mm
-
Hose Inner Diameter:
-
38 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Be focus
-
Voltage:
-
380V/220V/400V/110V
-
Power:
-
9/11kw, 9kw /11kw
-
Dimension(L*W*H):
-
2100*700*1200mm
-
Weight:
-
500 kg
-
Application:
-
Construction
-
After-sales Service Provided:
-
Engineers
-
Model:
-
06
-
Driven type:
-
Diesel /Electric
-
Capacity:
-
Available)
-
Spray height:
-
50m
-
Spray horizon distance:
-
100m
-
The diameter of pipe:
-
38mm
-
The max size of material:
-
6mm
Products Description

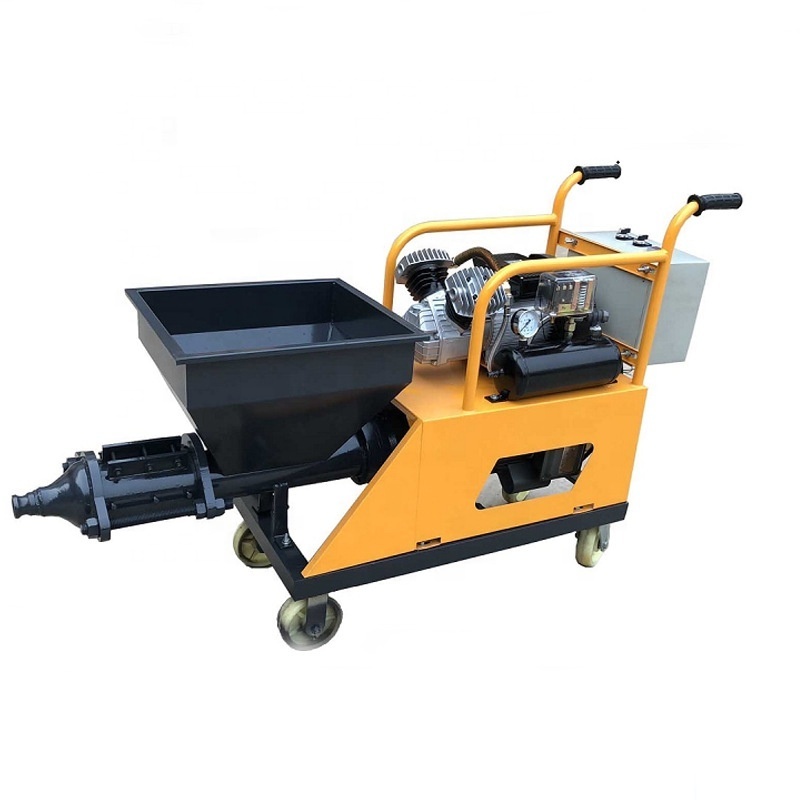

Mortar spraying machine can not only be used to spray, but also can be used to fill mortar, mortar spraying machine because of the high efficiency of the spraying speed commonly known as fast mortar spraying machine, because it can spray cement, also known as fast cement mortar spraying machine.
Product structure
Product details
Strong power and stable blanking
Simple operation and high security
Product model
311 screw spray machine
511
screw spray machine
711 screw spray machine
711 plunger spray machine
Product parameter
|
Model
|
Type 311
|
Type 511
|
Type 711 screw
|
Type 711 plunger
|
|
Total weight
|
150kg
|
300kg
|
350kg
|
500kg
|
|
Motor power
|
4kw
|
7.5kw
|
9kw
|
9/11kw
|
|
Air pump power
|
2.2kw
|
2.3kw
|
1.5*2kw
|
1.5*2kw
|
|
Overall dimension
|
1.52*0.68*0.95m
|
1.7*0.68*1.1m
|
1.93*0.68*0.8m
|
2.1*0.7*1.2m
|
|
Vertical conveying distance
|
12m
|
18m
|
25m
|
50m
|
|
Level conveying distance
|
20m
|
30m
|
40m
|
100m
|
|
Maximum sggregate size
|
4mm
|
6mm
|
6mm
|
6mm
|
|
Conveying pipe diameter
|
32mm
|
32mm
|
38mm
|
38mm
|
|
Standard arrangement
|
10 meters conveying pipe
1 airbrush gun
4 nozzles
|
10 meters conveying pipe
1 airbrush gun
4 nozzles
|
20 meters conveying pipe
1 airbrush gun
4 nozzles
Vibrating screen *1 set
|
40 meters conveying pipe
1 airbrush gun
4 nozzles
Vibrating screen *1 set
|
Usage scenario
Exterior wall spraying
Interior wall spraying
Waterproof material
Slope spray protection
Rockery landscape
Real stone spraying
Pruduct Show
