Quick Details
-
Warranty:
-
6 months
-
Brand Name:
-
ANBEN
-
Model Number:
-
JBQ4.8/9.5
-
Place of Origin:
-
ZHEJIANG
-
Horsepower:
-
13HP
-
Outlet Size:
-
65mm
-
Power:
-
5A
-
Item:
-
Fire Pump
-
Motor:
-
Four-stroke single cylinder air-cooled
-
Model:
-
JBQ4.8/9.5
-
Liquid:
-
Water
-
Impeller:
-
Single suction
-
Pump Type:
-
Vacuum pump
-
Weight:
-
50kg
-
inlet size(mm):
-
65mm
-
Outlet size(mm):
-
65mm
-
Oil capacity:
-
1.1L
-
Certification:
-
CCCF
Quick Details
-
Application:
-
FireFighting Pump
-
Pressure:
-
0.55Mpa
-
Voltage:
-
12v
-
Warranty:
-
6 months
-
Brand Name:
-
ANBEN
-
Model Number:
-
JBQ4.8/9.5
-
Place of Origin:
-
ZHEJIANG
-
Horsepower:
-
13HP
-
Outlet Size:
-
65mm
-
Power:
-
5A
-
Item:
-
Fire Pump
-
Motor:
-
Four-stroke single cylinder air-cooled
-
Model:
-
JBQ4.8/9.5
-
Liquid:
-
Water
-
Impeller:
-
Single suction
-
Pump Type:
-
Vacuum pump
-
Weight:
-
50kg
-
inlet size(mm):
-
65mm
-
Outlet size(mm):
-
65mm
-
Oil capacity:
-
1.1L
-
Certification:
-
CCCF

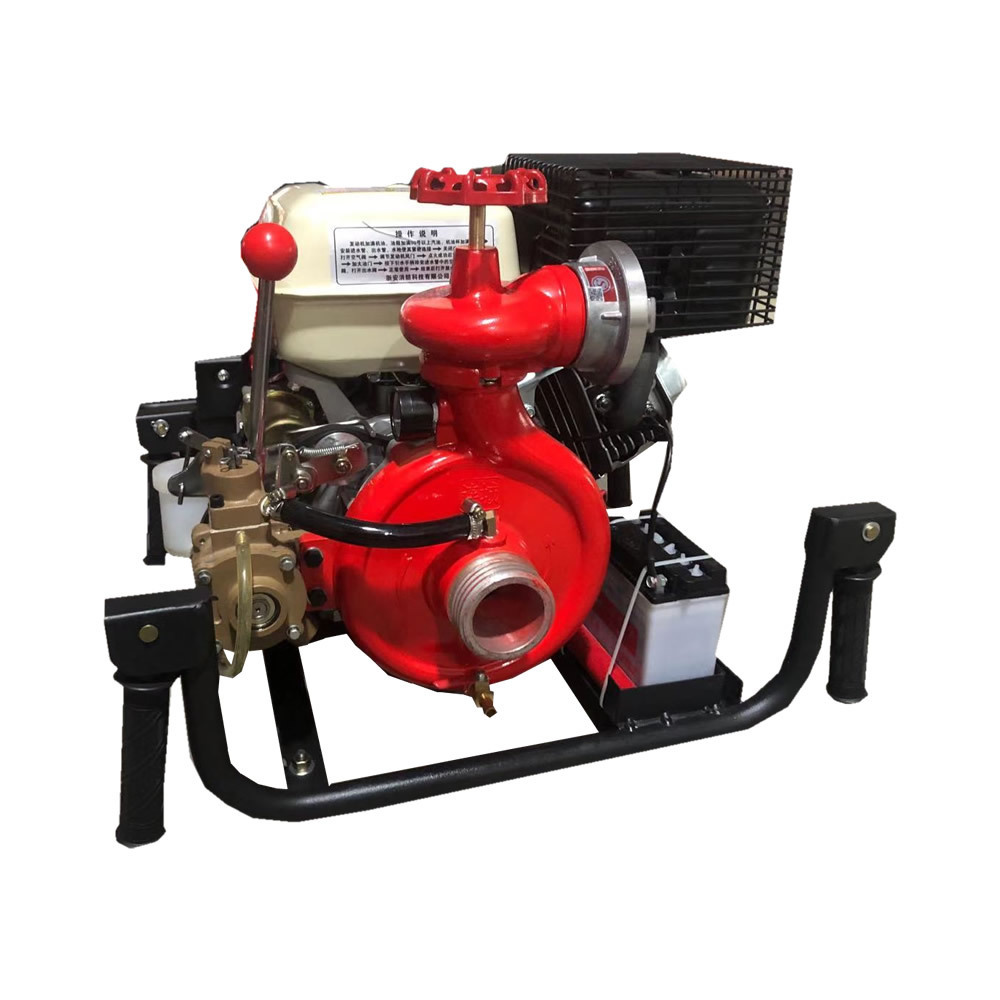

Mobile Fire Fighting Equipment 6.8KW 13 Horse Power Fire Pump Fire Fighting Pump Water Pump
The Mobile fire pump can be carried by human hands and is composed of gasoline engine and fire pump system.
The whole machine is composed of engine, water pump, water diversion device, water outlet pipe and water gun, etc.
It has the characteristics of small size, light weight, simple structure, quick start, reliable use, convenient maintenance, water diversion depth, and water diversion speed.
The hand-carried fire pump is mainly suitable for fire fighting in fire brigades, industrial and mining enterprises, counties, villages and towns, etc. It is more advantageous in areas where fire-fighting vehicles cannot pass. The hand-carried fire pump can also drain water, drought resistance, green irrigation, water supply and emergency disasters. Ideal equipment for rescue.
Product Paramenters
|
Pump Parameter
|
|
|
|
|||
|
Inlet size(mm)
|
65mm(2.5in)
|
Outlet Size(mm)
|
65mm(2.5in)
|
|||
|
Inlet Link type
|
Thread connect
|
Outlet Link type
|
Quick connect
|
|||
|
Rated flow
|
600L/min
|
Max Rated Flow
|
630L/min
|
|||
|
Rated pressure
|
0.55Mpa
|
Max Rated pressure
|
0.65Mpa
|
|||
|
Rated range
|
60m
|
Maximum range
|
70m
|
|||
|
Motor Parameter Model JBQ4.8/9.5
|
|
|
|
|||
|
Horse power
|
13HP/6.8KW
|
Displacement
|
389ML
|
|||
|
Diameter Stroke
|
88mm*65mm
|
Pump shaft speed(r/min)
|
3600r/min±50
|
|||
|
Enginee model
|
188FD(LIFAN)
|
Max torque
|
20.0N.M 2500r/min
|
|||
|
Idling(rpa)
|
1500rpa±150
|
pump Motor
|
Single-stage centrifugal pump
|
|||
|
Engine oil capacity
|
1.1L
|
Engine oil model
|
5W-40
|
|||
|
Fuel oil capacity
|
6L
|
Fuel oil model
|
#92
|
|||
|
Compression ratio
|
19:1
|
Cooling system
|
force air cooling
|
|||
|
Water Diversion Device Parameter
|
|
|
|
|||
|
Diversion method
|
Vacuum, rotating
|
Diversion time
|
20s-25s
|
|||
|
MAX DEPTH
|
7m
|
Vacuum pressure
|
0.085Mpa
|
|||
Customer Photos
Warning
1.In order to avoid damage to the machine, please do not start when the lubricating oil is not added or not enough.
2.The exhaust gas of the engine contains CO and CH compounds (the content is within the emission standards) during the operation of the engine. In order to avoid causing poisoning accidents, it is strictly forbidden to operate this fire pump in poorly ventilated indoor, underground and other places, if it must be used indoors , The exhaust gas should be discharged to the outdoors while maintaining indoor air circulation.
3.When the fire pump is operating, do not fill the fuel tank. It is best to refuel in an open air and well-ventilated place. During the refueling process, no oil is allowed to overflow. If it overflows, the oil must be removed before the engine is started.
4.Avoid contact with hot parts such as hot muffler, cylinder block, and even rotating parts.
Product packaging
|
Weight
|
50kg/set
|
Packing Size
|
620*590*525cm
|
Use Place
Maintenance
1,Check the lubricating oil level before each use of the machine and whether the moving parts are tight and reliable.
2,Change the oil for the first 20 hours of use, change the oil for the second 50 hours, and change after 100 hours of use.
3,Regularly clean the air filter sponge (filter) and fuel injection device.
4,If it is not used for a long time, drain the water in the pump body, clean the machine, and cover it with plastic sheet.
Q:Are you manufacturer？
A:Yes,We have been producing fire fighting equipment since 2007.
Q:About Price and Sample？
A:Price base on your order qty,and we can send you samples.
Q:About OEM？
A:We have a lot of overseas OEM customerss,so we accept it.
Q:About Payment and Delivery time？
A:We accept TT/LC/PAYPAL/WU/ALIPAY/WECAHTPAY.Delivery time base on order qty.
Q. How does your factory do regarding the quality control?
A : quality is priority.We always attach qreat importance quality control from the very beginning to the end ofproduction.Every will be full assembled and carefully before packing and shippino.
Q. How long for delivery time?
A: For sample order. Our delivery time is 30 to 35 days, for one full container, it's 35 to 40 days.
