Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OHMALLOY/OEM
-
Model Number:
-
SP-K-PT-PT-0.08
-
Product name:
-
40 AWG PVC Coated Thin Wire Type K Thermocouple Cable
-
Color:
-
+ Yellow -Red
-
Material:
-
KP: Chromel KN: Alumel
-
Size:
-
0.05mm/2*7*0.08mm(40 AWG)
-
Insulation:
-
Fiberglass/PTFE/PFA/FEP
-
Accuracy Class:
-
Class I
-
Feature:
-
High Accuracy/High temperature
Quick Details
-
Application:
-
temperature control
-
Conductor Material:
-
Chromel/ Alumel
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OHMALLOY/OEM
-
Model Number:
-
SP-K-PT-PT-0.08
-
Product name:
-
40 AWG PVC Coated Thin Wire Type K Thermocouple Cable
-
Color:
-
+ Yellow -Red
-
Material:
-
KP: Chromel KN: Alumel
-
Size:
-
0.05mm/2*7*0.08mm(40 AWG)
-
Insulation:
-
Fiberglass/PTFE/PFA/FEP
-
Accuracy Class:
-
Class I
-
Feature:
-
High Accuracy/High temperature

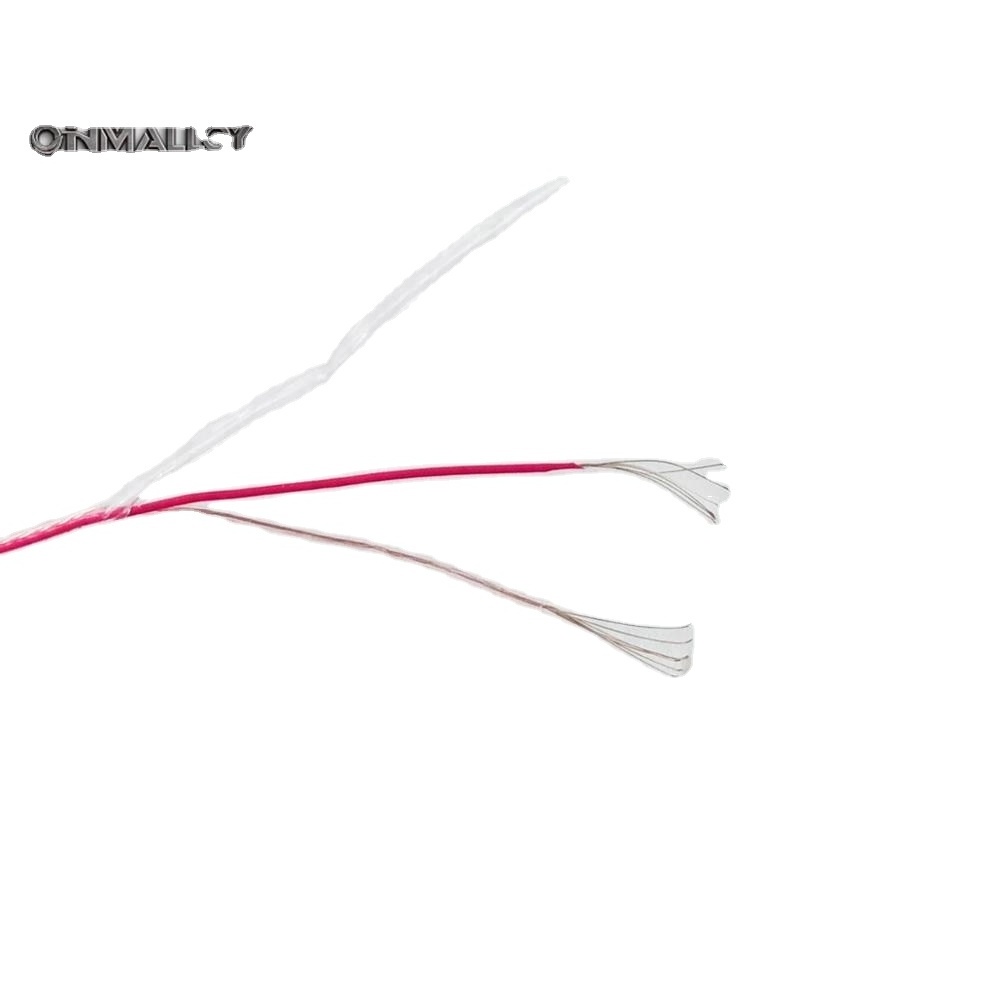

40 AWG PVC Coated Thin Wire Type K Thermocouple Cable 44AWG 0.05mm/2*7*0.08mm Ultra-thin Wire
TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
1. Product Details
1. Chemical C omposition
|
Material |
Chemical composition (%) |
||||
|
Ni |
Cr |
Si |
Mn |
Al |
|
|
KP(Chromel) |
90 |
10 |
|
|
|
|
KN(Alumel) |
95 |
|
1-2 |
0.5-1.5 |
1-1.5 |
2. Physical Properties and Mechnical Properties
|
Material |
Density(g/cm 3 ) |
Melting point℃) |
Tensile Strength(Mpa) |
Volume resistivity(μΩ.cm) |
Elongation rate (%) |
|
KP(Chromel) |
8.5 |
1427 |
>490 |
70.6(20℃) |
>10 |
|
KN(Alumel) |
8.6 |
1399 |
>390 |
29.4(20℃) |
>15 |
3. EMF Value Range at Different Temperature
|
Material |
EMF value Vs Pt(μV) |
|||||
|
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
600℃ |
|
|
KP(Chromel) |
2816~2896 |
5938~6018 |
9298~9378 |
12729~12821 |
16156~16266 |
19532~19676 |
|
KN(Alumel) |
1218~1262 |
2140~2180 |
2849~2893 |
3600~3644 |
4403~4463 |
5271~5331 |
|
EMF value Vs Pt(μV) |
||||
|
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
|
22845~22999 |
26064~26246 |
29223~29411 |
32313~32525 |
35336~35548 |
|
6167~6247 |
7080~7160 |
7959~8059 |
8807~8907 |
9617~9737 |
2. Size Range Reference
|
Alloys Name |
Type |
Dimension |
|
|
SP-K - W |
Wire |
D =0.03mm~8mm |
|
|
SP-K-R |
Ribbon |
W= 0.4~40 |
T= 0.03~2.9mm |
|
SP-K-S |
Strip |
W= 8~2 50 mm |
T= 0.1~3.0 |
| SP-K-F |
Foil |
W= 6~120mm |
T= 0.003~0.1 |
|
SP-K-B |
Bar |
Dia= 8~100mm |
L= 50~1000 |
