Quick Details
-
Application:
-
ebike, e-scooter,electric motorcycle etc.
-
Color:
-
black
-
Warranty:
-
27 Months
-
Cycle life:
-
After 500 cycles, residual capacity is over 80% of its original
-
Certificate:
-
UN38.3,MSDS
-
Battery type:
-
18650 Rechargeable Li-ion
-
Protection:
-
Built-in 13S30A BMS
-
Size:
-
370*90*110mm
-
Combo Set Offered:
-
0
Quick Details
-
Type:
-
Lithium Battery
-
Voltage:
-
48V
-
Capacity:
-
10 - 20Ah
-
Application:
-
ebike, e-scooter,electric motorcycle etc.
-
Color:
-
black
-
Warranty:
-
27 Months
-
Cycle life:
-
After 500 cycles, residual capacity is over 80% of its original
-
Certificate:
-
UN38.3,MSDS
-
Battery type:
-
18650 Rechargeable Li-ion
-
Protection:
-
Built-in 13S30A BMS
-
Size:
-
370*90*110mm
-
Combo Set Offered:
-
0

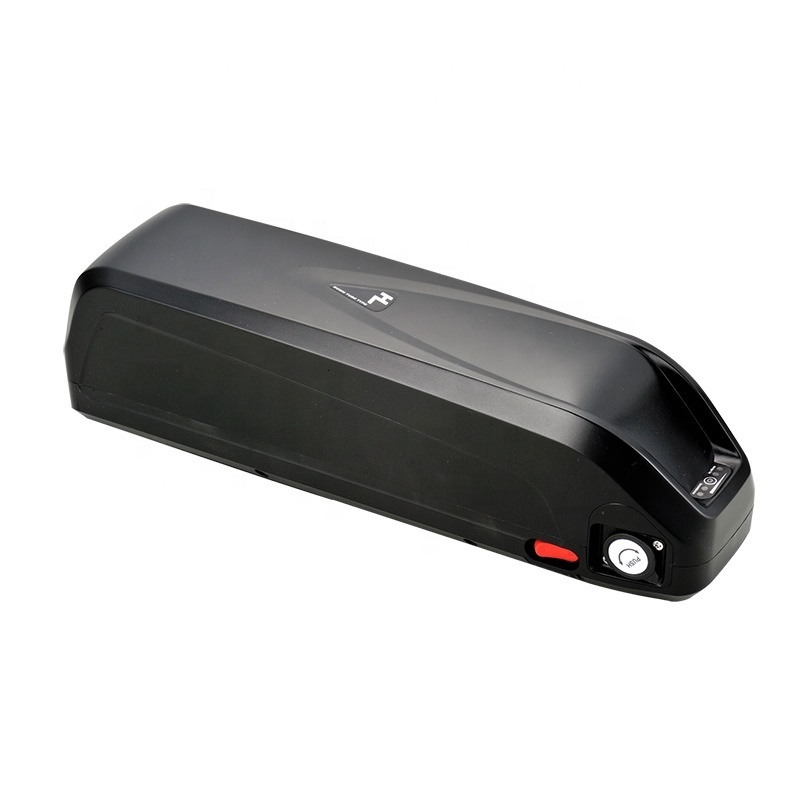

48V Hailong Electric Bicycle lithium ion batterty with USB port
| Battery Parameter | |
| Model | HC-014-A |
| Battery type | Down tube battery type |
| Battery chemicals | Lithium-ion 18650 13s5p |
| Rated Voltage | 48 V |
| Rated Capacity | 10 ah |
| Battery cell | Chinese |
| Dimension | 370*110*90mm |
| Battery weight | 5 kg |
| Over discharge protection | 36.4±0.5V |
| Over charge protection | 54.±0.01V |
| Max. constant discharge current | 30A |
| Max.charge current | 5 A |
| Material of battery box | Full plastic |
1.Battery Indicator : 1 red +3 green display lamps
2.Charge Port : XLR port, it can fit 2A-5A charge
3.Power Switch :turn on or off the battery power
4.USB Port :5V/1A Output, it can be used to charge the phone
5.Lock : lock the battery on the frame
Our service
* Your inquiry related to our products or price will be replied within 24 hours.
* OEM & ODM ,also provide customized service.
*According to your design for you the most suitable products
* 27 months warranty
1. FedEx/UPS/DPD, Door-to-Door
2. Customers specifying freight forwarders or negotiable shipping methods
3. Delivery Time: by Express will take 3-6 working days;by special line will take 12-15 working days;by sea will take 30-45 days
1.Q: Do you have PI?
A: Yes, we will make a PI(proforma invoice) for you once the order confirmed.
2.Q:How long will be the delivery?
A:Usually delivery in 15-20 days, but could be change according to the quantity or other things.
3.Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
4.Q:What safety protection function does the BMS have?
A: Short circuit protection, over-current protection, over-load protection, over-charging/discharge protection, temperature control, balance etc.
