Quick Details
-
Material:
-
Marine wooden box with internal lining
-
Weight:
-
8.2KG
-
Size:
-
46*37*15CM
-
Power:
-
0.08
-
Productivity:
-
1Og/hour
-
Weight (KG):
-
9 kg
-
Product name:
-

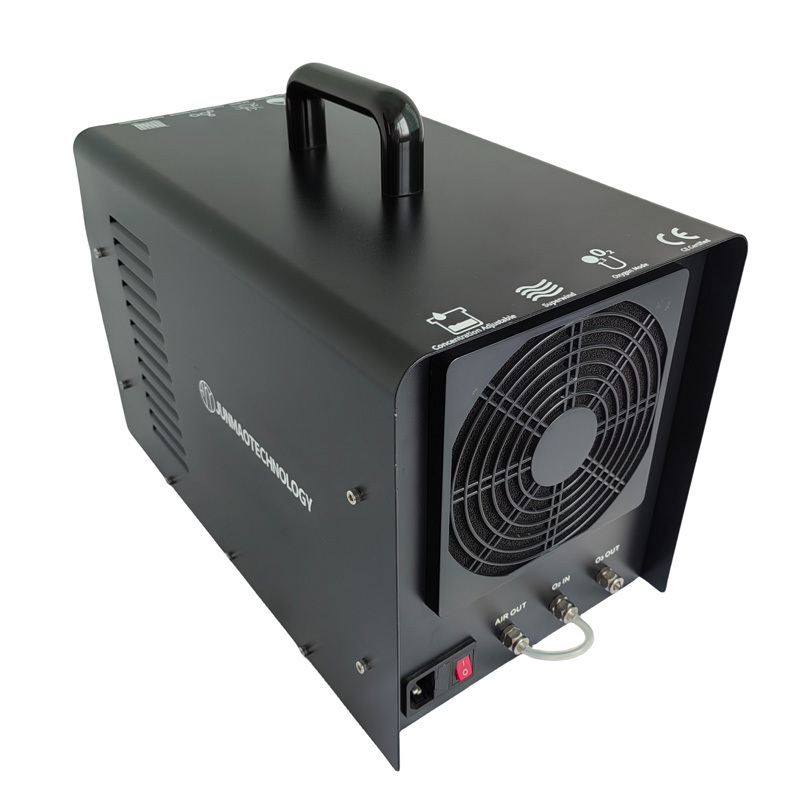

Experimental dedicated ozone generator
-
Power (W):
-
90
-
Voltage:
-
110/220V
-
Ozone tube cooling method:
-
Air cooling
-
After Warranty Service:
-
Video technical support
-
Case:
-
Carbon steel
-
Certification:
-
CE
-
ozone output:
-
3/5/6/7/10g/hr
-
MOQ:
-
1
-
Ozone concentration:
-
0-80mg/L
Quick Details
-
Marketing Type:
-
Hot product 2024
-
Place of Origin:
-
shaanxi
-
Brand Name:
-
JUNMAO
-
Material:
-
Marine wooden box with internal lining
-
Weight:
-
8.2KG
-
Size:
-
46*37*15CM
-
Power:
-
0.08
-
Productivity:
-
1Og/hour
-
Weight (KG):
-
9 kg
-
Product name:
-
Experimental dedicated ozone generator
-
Power (W):
-
90
-
Voltage:
-
110/220V
-
Ozone tube cooling method:
-
Air cooling
-
After Warranty Service:
-
Video technical support
-
Case:
-
Carbon steel
-
Certification:
-
CE
-
ozone output:
-
3/5/6/7/10g/hr
-
MOQ:
-
1
-
Ozone concentration:
-
0-80mg/L
Feel Free to Contact us
Free sample, Free offering professional consulting, Free making design plan, Free giving individuation Service!
Product Paramenters
Product name: Laboratory professional ozone generator
◈Scope of application: universities/laboratories/research institutions/medical institutions ◈Function: It can provide high purity
ozone for various scientific research experiments.
◈Control panel:Flow meter, Ozone adjuster, Oxygen input, Ozone output, Ampmeter, Switch, Timer, Working light, Power light
ozone for various scientific research experiments.
◈Control panel:Flow meter, Ozone adjuster, Oxygen input, Ozone output, Ampmeter, Switch, Timer, Working light, Power light
Product specification
Experimental dedicated ozone generator
Adjustable ozone level Accurgte concentration and constant numerical value Both air and oxygen sources are available
|
Model
|
Unit
|
ZTW3G
|
ZTW5G
|
ZTW6G
|
ZTW7G
|
ZTW10G
|
||||
|
ozone output
|
g/H
|
0-3
|
0-7
|
0-7
|
0-7
|
0-7
|
||||
|
Ozone concentration
|
mg/L
|
0-80
|
0-80
|
0-80
|
0-80
|
0-80
|
||||
|
OxygenFlow Rate
|
L/min
|
0.1-2
|
0.1-3
|
0.1-3
|
0.1-3
|
0.1-4
|
||||
|
AirFlow Rate
|
L/min
|
0.1-10
|
0.1-15
|
0.1-15
|
0.1-15
|
0.1-20
|
||||
|
Power
|
W
|
80
|
90
|
110
|
120
|
140
|
||||
|
Inlet and outletpipe diameter
|
mm
|
Diameter 6mm
|
|
|
|
|
||||
|
Power requirements
|
AC
|
AC220V/50Hzor AC110V/60Hz
|
|
|
|
|
||||
|
Fuse
|
A
|
3
|
|
|
|
|
||||
|
Dimensions
|
mm
|
460*370*150
|
|
|
|
|
||||
|
Wight
|
kg
|
8.2
|
8.3
|
8.4
|
8.5
|
8.7
|
||||
Note:The above oxygen production is detected underthe condition of 99.5%oxygen sources,and the specific parameter con-figuration is subject to the actual product.
Experimental dedicated oxygen generator host
Adjustable flow rate,high concentration purity,and built-in air source for more durable drying treatment
|
Model
|
Unit
|
XOG3L
|
X0G5L
|
X0G10L
|
||
|
Oxygen Flow Rate
|
L/min
|
3
|
5
|
10
|
||
|
Oxygen concentration
|
%
|
93±3
|
|
|
||
|
Power
|
W
|
380
|
520
|
800
|
||
|
Exhaust pressure
|
Kpa
|
40
|
|
|
||
|
Outlet pipe diameter
|
mm
|
Diameter 8mm
|
|
|
||
|
Power requirements
|
AC
|
(Customizable) 220V/50HZ 0r110V/60Hz
|
|
|
||
|
Dimensions
|
mm
|
379*240*397
|
430*258*461
|
450*258*586
|
||
|
Wight
|
kg
|
16.5
|
22
|
30
|
||
0zone Gas 0nline Analyzer
Dual path Uv absorption method,Long-life light source system
High measurement accuracy
|
Equipment model
|
UV2300
|
|
|
||
|
Range(Choose any one)
|
0-300g/Nm³
|
0-200g/Nm³
|
0-100g/Nm³
|
||
|
|
0-14%WT
|
0-1000ppm
|
0-100ppm
|
||
|
Light source lifespan
|
30000-50000Hour
|
|
|
||
|
Display interface
|
4.3 inch touch screen operation
|
|
|
||
|
Auxiliary functions
|
Temperature compensation and pressure compensation
|
|
|
||
|
Sampling flow rate
|
0.5L±0.2L/mn
|
|
|
||
|
Input pressure
|
≤0.1MPa
|
|
|
||
|
Concentration misnourishment
|
<0.5%FS
|
|
|
||
|
Linear error
|
G0.5%FS
|
|
|
||
|
Zero drift
|
C±0.3%FS
|
|
|
||
|
Reaction time
|
Signal 0.03 seconds.Display 0.3 seconds
|
|
|
||
|
Ambient temperature
|
-20~50℃
|
|
|
||
|
Communication methods
|
RS-485
|
|
|
||
|
Output method
|
4-20mA(active)
|
|
|
||
|
Relay signal
|
High alarm point signal,low pressure alarm point signal
|
|
|
||
|
Input power supply
|
AC110-220V
|
|
|
||
|
Instrument size
|
230mm(H)×330mm(W)×150mm(D)
|
|
|
||
|
Free warranty
|
Free 3-year warranty for light sources; Host 2 years (excluding oil intake, water ingress, and improper use)
|
|
|
||
Ozone Annihilator
|
Equipment model
|
Unit
|
A
|
B
|
|
Process mode
|
-
|
adsorption
|
heat
|
|
Rated processing gas
|
L/min
|
5
|
25
|
|
Rated power
|
W
|
-
|
800
|
|
Maximum Temperature
|
℃
|
-
|
210
|
|
Inlet and outlet pipe diameter
|
mm
|
8
|
8
|
|
Power Requirement
|
AC
|
-
|
220V/50Hz
|
|
Size
|
mm
|
Diameter 50 length 387
|
Diameter 170 length 550
|
|
Weight
|
kg
|
0.87
|
8
|
Adapt to any country
For the convenience of your use in any country and region, we have prepared power plugs in various country standards. You can tell us your needs when purchasing, and we will ship according to your needs.
Product Applications and Features
Application:
Laboratory:
Chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
Pharmaceutical industry: Water, air conditioner, workshop, dressing room, sterile room etc.
Medical: Ward, operating room, medical devices, sterile room etc.
Pharmaceutical industry: Water, air conditioner, workshop, dressing room, sterile room etc.
Medical: Ward, operating room, medical devices, sterile room etc.
Features:
1. Corona Discharge technology 2. Built in Domestic Patent-Ceramic ozone tube with electric board
2. Feed outside oxygen source only with high ozone concentration
3. Ozone adjustable range: 20%-100%
4. Digital Timer : one or two recycle working time
5. Stylish, small size, plug& play
6. Changeable plug for different country.
7. Output : 3G/Hr, 5G/Hr, 6G/Hr, 7G/Hr.
8. Suitable used for the line which required high ozone concentration.
2. Feed outside oxygen source only with high ozone concentration
3. Ozone adjustable range: 20%-100%
4. Digital Timer : one or two recycle working time
5. Stylish, small size, plug& play
6. Changeable plug for different country.
7. Output : 3G/Hr, 5G/Hr, 6G/Hr, 7G/Hr.
8. Suitable used for the line which required high ozone concentration.
Characterization of on-line continuous ozone degradation by solid catalyst
Ozone treatment for aquaculture wastewater
Ozone-catalyzed oxidation degrades organic matter in water
Ozone participates in atomic layer deposition reaction (ALD) to prepare nanomaterials
ozonizer in the treatment of printing and dyeing wastewater
The ozone machine is used to catalyze the oxidation luminescence reaction
Observation of ozone and material reaction test
Ozone degradation experiment
Ozone generators are used for advanced oxidation
Ozone is used in anti-aging Chinese herbs
