Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JZ
-
Model Number:
-
JZ-M008
-
Type:
-
Other Furniture Hardware
-
Item name:
-

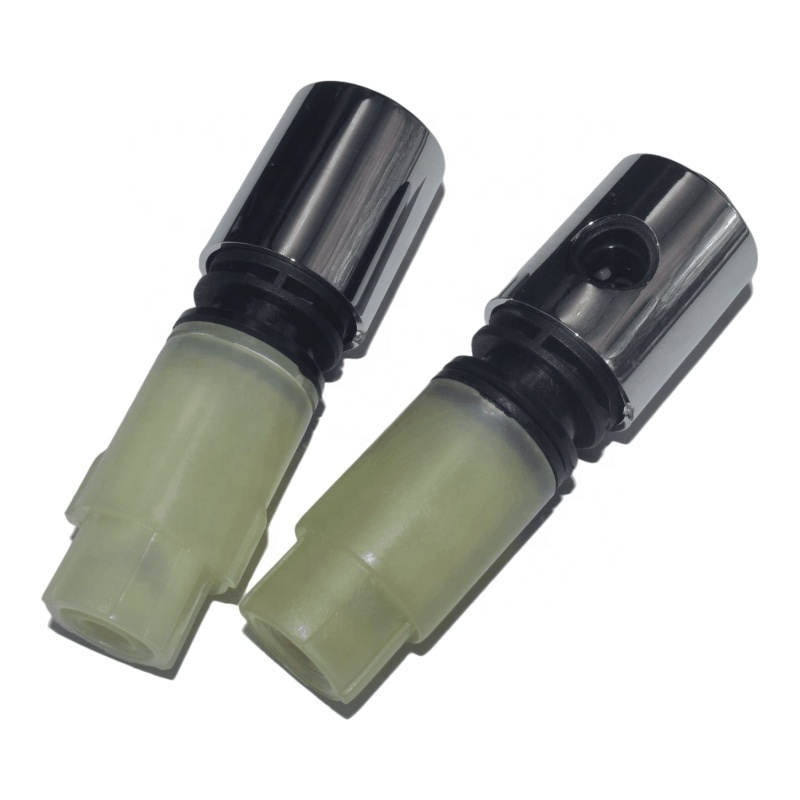

Toilet Seat Cover Hinge set
-
Material:
-
PA66
-
Temperature:
-
-5-50℃
-
oil Used:
-
Silicon oil
-
Product Application:
-
toilet seat cover/washing machine/dishwasher
-
OEM:
-
Accpetable
-
Production lead time:
-
10-15 days
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JZ
-
Model Number:
-
JZ-M008
-
Type:
-
Other Furniture Hardware
-
Item name:
-
Toilet Seat Cover Hinge set
-
Material:
-
PA66
-
Temperature:
-
-5-50℃
-
oil Used:
-
Silicon oil
-
Product Application:
-
toilet seat cover/washing machine/dishwasher
-
OEM:
-
Accpetable
-
Production lead time:
-
10-15 days
| Model | Torsion |
damping direction |
Max. angle |
Operating
temperature |
Weight
(set) |
Body material | Oil type |
| JZ-M008 |
3Nm |
clockwise | 115° | -5~50℃ | 63.6g ± 1g |
PBT+POM |
Silicone oil |
Product Application : PP/UF toilet seat cover
Max. angle 115°
Operating temperature -5 - 50°C
Weight(set) 63.6g±1g
Body material PBT+POM
This product is manufactured in Xiamen,China.
| Damper characteristics vary according to the ambient temperature.In general, | ||||
| the damper characterics become weaker as rhe temperature increase,and become | ||||
| stronger as the tempereture decrease.This is because the viscosity of the oil inside | ||||
| the damper varies according to the temperature.When the temperature return to | ||||
| normal,the damper characteristics will return to normal as well. The changes in the | ||||
| time it takes for the lid to close are shown in the graph down below. | ||||
| The JZ-M008 series is a fixed type,its torque is non-adjustable.However,a customized | ||||
| order for torque between the range of 1~3Nm is possible by changing the oil viscosity. | ||||
| The damper's working angle is 115°,as shown delow. | ||||
| Rotating the damper beyond this angle will cause damage to the damper.Pls ensure | ||||
| that an external stopper is in place.The working angle based on the width across flat | ||||
| for fixing,located towards the rear end of the main body.The position where the rotation | ||||
| is complete is at 90° with respect to the width accross flat. |
