- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
wmtcnc
-
Model Number:
-
ZSK-30(L)
-
Voltage:
-
Customer appoint
-
Dimension(L*W*H):
-
900x756x1813mm
-
Power (kW):
-
1.1
-
Weight (KG):
-
355 KG
-
Marketing Type:
-
Hot Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Drill color:
-
Customer appoint
-
Logo printing:
-
OEM service
-
Table drill:
-
Drill press
-
Max. Drilling capacity:
-
30/25mm
-
Max.spindle travel:
-
130mm
-
Power:
-
1.1kw
-
Certification:
-
CE ISO9001
-
Size of base worktable:
-
320x350mm
-
Positioning accuracy:
-
0.06mm
Quick Details
-
type:
-
Pillar Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
216 - 2730 rpm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
wmtcnc
-
Model Number:
-
ZSK-30(L)
-
Voltage:
-
Customer appoint
-
Dimension(L*W*H):
-
900x756x1813mm
-
Power (kW):
-
1.1
-
Weight (KG):
-
355 KG
-
Marketing Type:
-
Hot Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Drill color:
-
Customer appoint
-
Logo printing:
-
OEM service
-
Table drill:
-
Drill press
-
Max. Drilling capacity:
-
30/25mm
-
Max.spindle travel:
-
130mm
-
Power:
-
1.1kw
-
Certification:
-
CE ISO9001
-
Size of base worktable:
-
320x350mm
-
Positioning accuracy:
-
0.06mm
Product Description

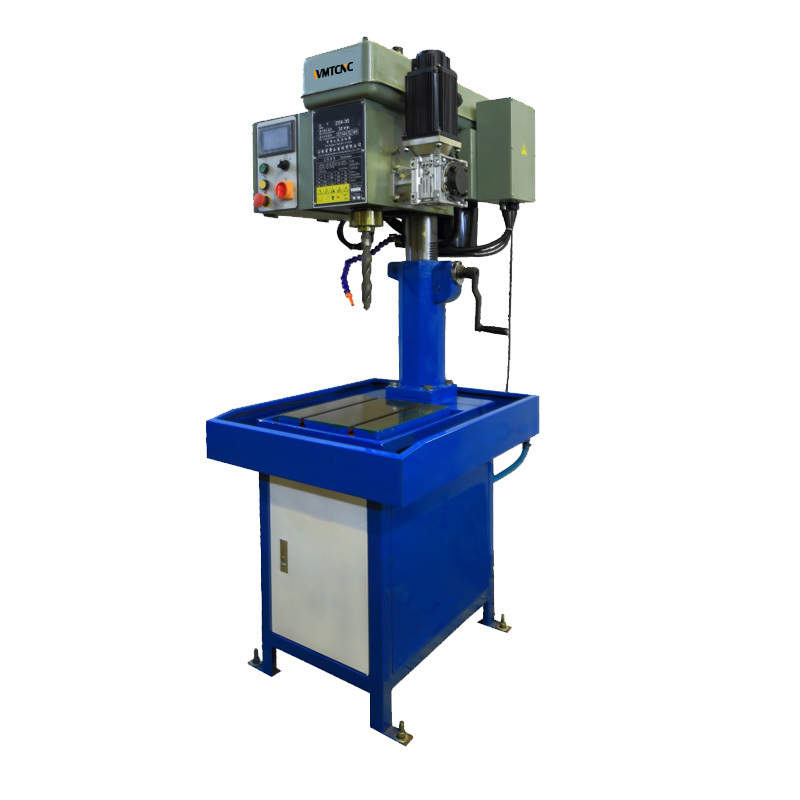

Rigid Tapping
Machine
ZSK-30(L)
|
Model
|
ZSK-30(L)
|
|
Max. Drilling capacity(mm)
|
30/25
|
|
Max. Tapping capacity(mm)
|
M24/M20
|
|
Diameter of column(mm)
|
100
|
|
Max.spindle travel(mm)
|
130
|
|
Morse taper of spindle nose
|
MT.3
|
|
Spindle speeds(r/min)
|
140-220-320-370-460 -550-1100-1170-1780
|
|
Feed motor
|
Servo motor: 6N.m(1:20)
|
|
Rapid feed(mm/min)
|
Stepper motor: W4500, servo motor: W7500
|
|
Positioning accuracy(mm)
|
0.06
|
|
Repeat positioning accuracy(mm)
|
0.03
|
|
Operating system
|
Single axis (servo)
|
|
Size of base worktable(mm)
|
320x350
|
|
Distance from spindle axis to column surface(mm)
|
235
|
|
Distance from spindle nose to base surface(mm)
|
Vertical: 1015, horizontal: 350-700
|
|
Main Motor power(kw)
|
1.1 (6steps)
|
|
G.W/N.W(kg)
|
355/315
|
|
Ship measurement(cm)
|
90x75.6x181.3
|
Company profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
