Quick Details
-
Dimension(L*W*H):
-
Customized Made
-
Weight (T):
-
0.01 T
-
Power (kW):
-
70
-
After-sales Service Provided:
-
No after-sales service
-
Weight:
-
320KG
-
Working theory:
-
Electromagnetic induction melting smelting
-
Temperature:
-
2500 degree
-
Melting material:
-
Iron Steel Aluminum Gold Copper etc.
-
Crucible:
-
Graphite crucible
-
H.S code:
-
8514200090
-
Max input current:
-
105A
-
Keyword:
-
Induction Melting Heating
-
Name:
-
Melting Furnace
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jinlai
-
Voltage:
-
3 phase 380V
-
Dimension(L*W*H):
-
Customized Made
-
Weight (T):
-
0.01 T
-
Power (kW):
-
70
-
After-sales Service Provided:
-
No after-sales service
-
Weight:
-
320KG
-
Working theory:
-
Electromagnetic induction melting smelting
-
Temperature:
-
2500 degree
-
Melting material:
-
Iron Steel Aluminum Gold Copper etc.
-
Crucible:
-
Graphite crucible
-
H.S code:
-
8514200090
-
Max input current:
-
105A
-
Keyword:
-
Induction Melting Heating
-
Name:
-
Melting Furnace
Best Price Mini Lead Platinum Iron Steel Aluminum Gold Metal Induction Melting Furnace
Product Description
Main parts of the melting furnace system
1. M.F Induction Heating Power.
2. Tilting Type Melting Furnace.
Characteristics of M.F Melting Furnace
- Better Heating penetration and even temperature inside the melting metal.
- M.F field force can stir the melting pool to achieve better melting quality.
- Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.
- Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.
Main Technical Data
| Model | JLZ-70KW |
| I nput power desire | 3 phase 380V 50/60HZ |
| Input power | 70KVA |
| M ax input current | 105A |
| Output voltage | 70-550V |
| Output current | 20-130A |
| O scillate frequency | 1-20KHZ |
| C ooling water desire (heating power) | ≥ 0. 2 MPa ≥ 4 L/Min |
| D uty cycle | 10 0% 4 0°C |
| Net Dimensions(L*W*G) | H eating power: 620*560*1350mm |
| N et weight | 120Kg |
| C able length | 2-6(Meters) |
Machine Photo

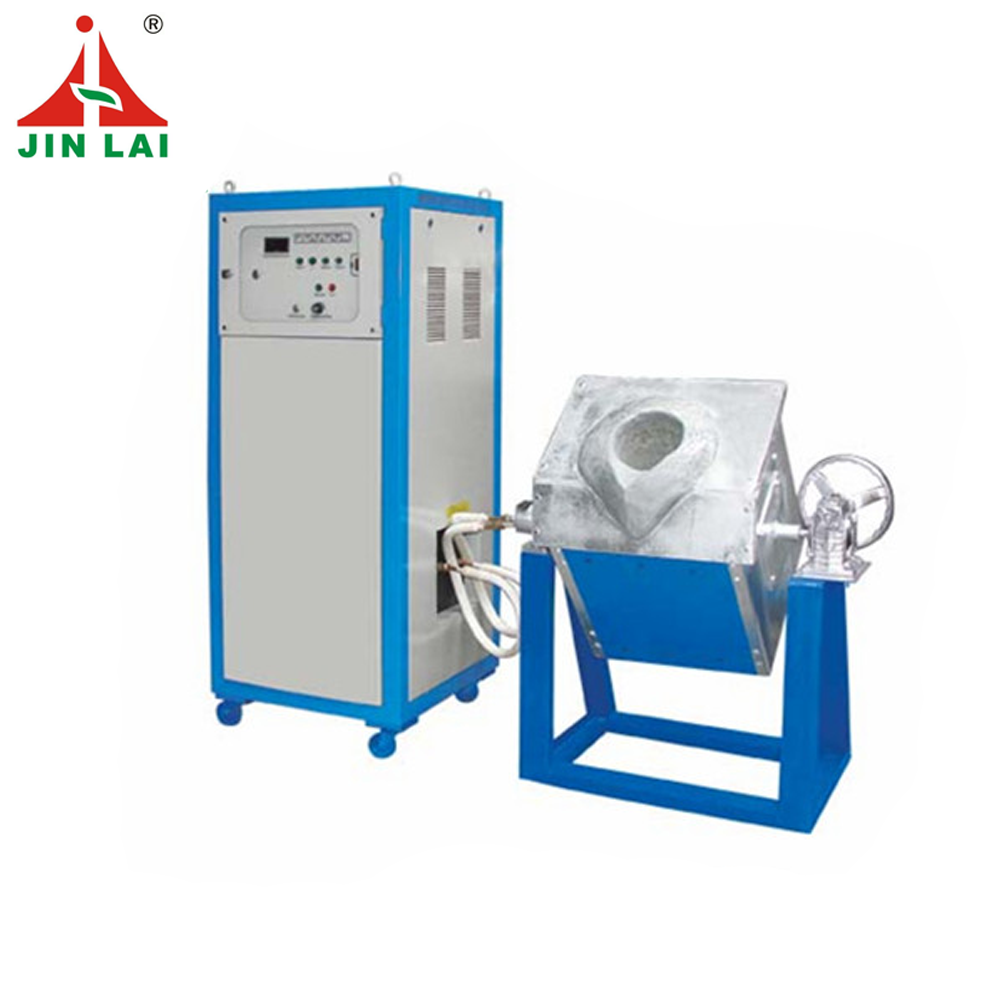

Induction heating power and Furnace:
Graphite Cruible
Working Photos
Packaging & Shipping
The list items for whole set machine
| Item | Name of machine or parts | Specification | Amount |
| 1 | JL Z-70 KW heating power | - | 1 pcs |
| 2 | Tilting type melting furnace | 1 set | |
| 3 | Foot pedal | 3 core | 1 pcs |
| 4 | G raphite crucible | Inside furnace | 1 set |
| 5 | C onnect cable | - | 1 set |
| 6 | Instruction Manual | - | 1 pcs |
| 7 | Product catalog | - | 2 sets |
