Quick Details
-
Brand Name:
-
OEM
-
Use:
-
fibre optical communication, FTTH
-
Warranty Time:
-
1 Year
-
Center Wavelength:
-
1310nm 1550nm 1064nm
-
Port Type:
-
3 Port or 4 Port
-
Min. Cross Talk:
-
50dB
-
Operating temperature:
-
-5~+70
-
Storage temperature:
-
-40~+85
-
Application:
-
EDFA&RamanAmplifier;Fiber Sensor;Fiber Instrument
-
No. of Fiber:
-
1.
Quick Details
-
Type:
-
Optical Fibers
-
Model Number:
-
PMCIR-1111-23456-77
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Use:
-
fibre optical communication, FTTH
-
Warranty Time:
-
1 Year
-
Center Wavelength:
-
1310nm 1550nm 1064nm
-
Port Type:
-
3 Port or 4 Port
-
Min. Cross Talk:
-
50dB
-
Operating temperature:
-
-5~+70
-
Storage temperature:
-
-40~+85
-
Application:
-
EDFA&RamanAmplifier;Fiber Sensor;Fiber Instrument
-
No. of Fiber:
-
1.

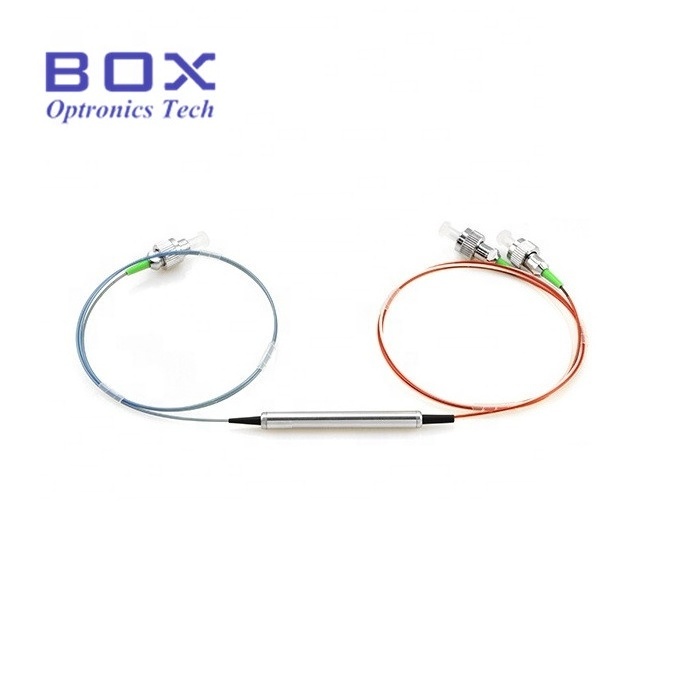

Low Insertion Loss Optical PM Circulator
Features:
Low Insertion Loss;
High Return Loss;
High Isolation;
High Extinction Ratio;
High Reliability& Stability.
Application:
EDFA&RamanAmplifier;
Fiber Sensor;
Fiber Instrument.
Specifications:
|
Parameter |
Unit |
Value |
|||||
|
Type |
- |
Type A |
Type B |
||||
|
Port Type |
- |
3 Port |
4 Port |
3 Port |
4 Port |
3 Port |
4 Port |
|
Center Wavelength
|
nm |
1310 or 1550 |
1310 or 1550 |
1064 |
|||
| Operating Wavelength Range |
nm |
±30 |
±20 |
±5 |
|||
|
Typ. Insertion Loss at 23 °C |
dB |
0.7 |
1.1 |
0.6 |
1.0 |
1.8 |
2.2 |
|
Max. Insertion Loss at 23 °C |
dB |
0.9 | 1.3 | 0.8 | 1.2 | 2.1 | 2.5 |
|
Typ. Peak Isolation 23 °C |
dB | 46 | 30 | 30 | |||
|
Min. Isolation at 23 °C |
dB | 40 | 20 | 25 | |||
|
Min. Extinction Ratio at 23 °C |
dB | 22 | 20 | 20 | |||
|
Min. Cross Talk |
dB | 50 | |||||
|
Min. Return Loss |
dB | 50 | |||||
|
Max. Optical Power(CW) |
mW | 300 | |||||
|
Max. Tensile Load |
N | 5 | |||||
|
Fiber Type |
- |
PM Panda fiber |
|||||
|
Operating Temperature |
°C |
-5~+70 |
|||||
|
Storage Temperature |
°C |
-40~+85 |
|||||
Package Dimensions:
Packaging
Original Carton Package.
As customers' requirement.
Shipping
5-10 Working days after receive the payment.
Shipment: Air transportation ( DHL / UPS / TNT / Fedex / EMS/CHINA POST )
S hipping fee depends on the weight and size.
