Wanlong Bridge round saw block cutter stone cutting machine

Wanlong Bridge round saw block cutter stone cutting machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $29925

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Brand Name:: Wanlong

Dimension(L*W*H):: 8000*4350*6000mm

Weight:: 12000 kg

Marketing Type:: New Product 2022

Function:: Cutting Granite Block Cutter

Max Cutting Length:: 3600mm

No. of balde:: 14 pieces

Pillar Diameter:: 160 mm

Water consumption:: 35 m3/h

Control method:: PLC

Application:: Stone Industrial

After-sales Service Provided:: Service Machinery Overseas

After Warranty Service:: Technical Support Online

Machine type:: Block Cutting Cutter Machine

Quick Details

Type:: Stone Cutting Machine

Power:: 45 KW/55KW

Cutting thickness (max):: 400mm

Place of Origin:: Fujian, China

Brand Name:: Wanlong

Dimension(L*W*H):: 8000*4350*6000mm

Weight:: 12000 kg

Marketing Type:: New Product 2022

Function:: Cutting Granite Block Cutter

Max Cutting Length:: 3600mm

No. of balde:: 14 pieces

Pillar Diameter:: 160 mm

Water consumption:: 35 m3/h

Control method:: PLC

Application:: Stone Industrial

After-sales Service Provided:: Service Machinery Overseas

After Warranty Service:: Technical Support Online

Machine type:: Block Cutting Cutter Machine

Product Overview

Wanlong Bridge round saw block cutter stone cutting machine

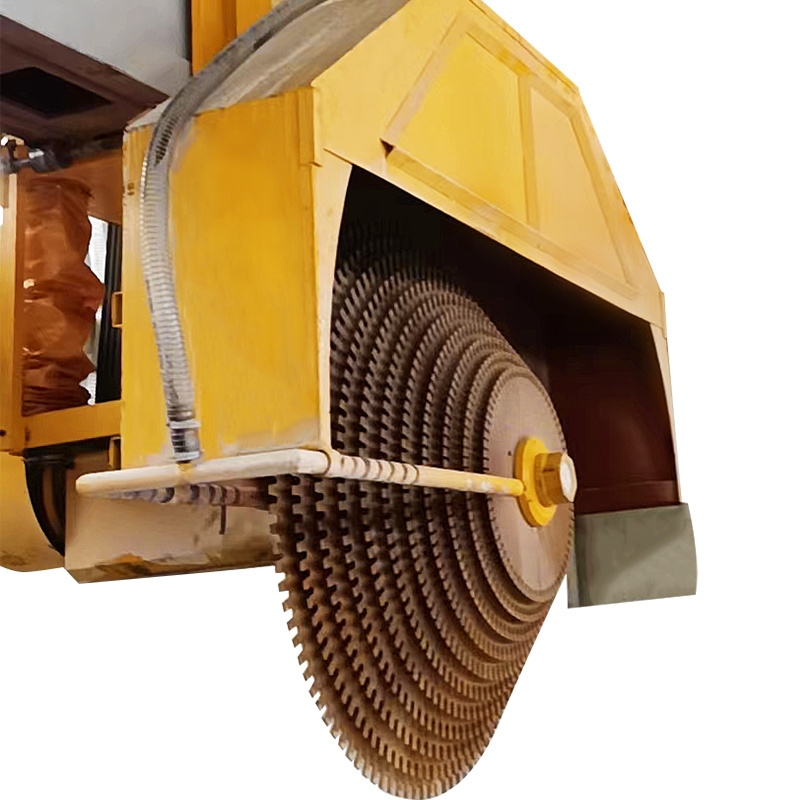

QSQ-2200/2500 /2800/3000 combines different diameters of blades working simultaneously as multiblade cutting with 4 pillars hydraulic lifting system. The crossbeam moves for feeding so that the table for block is not necessary (which does not supply along with machine（ only available upon request ）Heavy duty structure, logical control system, easy operation together with "Wanlong blade give high production and also make the finish slab with flat surface, no tapper. It is also flexible in modification for Single blade cutting.

FEATURES AT A GLANCE

marble block cutting saw blade and marble cutting machine block cutting machine

* Using Taiwan Qiyang hydraulic components

* Using SIEMENS

* Using Panasonic PLC

* Using Panasonic Inverter

* Using encoder for X,Y,Z movement

* Easy-operation

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Model	Unit	QSQ-2200	QSQ-2500
1	Length of Crossbeam	mm	7500	7500/8000
2	Water consumption	m3/h	25	25
3	Pillar Diameter	mm	160	210
4	Main motor power	kw	45(55)	45(55)
5	no. of blade	pcs	9	9
6	Max. cutting size	mm	36002000950	380020001100
7	Approximate weight	kg	12000	26000
8	Overall dimensions	mm	800043506000	850043506200
