Quick Details
-
Brand Name:
-
WKD
-
Dimension(L*W*H):
-
720*660*850mm
-
Weight:
-
600 KG
-
Product name:
-
Jaw Crusher Machine
-
Inlet size:
-
150*250mm
-
Max feeding granularity:
-
125mm
-
Capacity:
-
1-3t/h
-
Adjustable range of discharge:
-
125mm
-
Power:
-
5.5kw
-
Test&Installation:
-
Pofessional Engineer Assigned
-
Price:
-
Competitive
-
Quality:
-
China Standard
-
Shipping way:
-
By Sea, DHL, FedEx, UPS, TNT, EMS
Quick Details
-
Application:
-
Ore
-
Capacity(t/h):
-
85-185t/h
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
WKD
-
Dimension(L*W*H):
-
720*660*850mm
-
Weight:
-
600 KG
-
Product name:
-
Jaw Crusher Machine
-
Inlet size:
-
150*250mm
-
Max feeding granularity:
-
125mm
-
Capacity:
-
1-3t/h
-
Adjustable range of discharge:
-
125mm
-
Power:
-
5.5kw
-
Test&Installation:
-
Pofessional Engineer Assigned
-
Price:
-
Competitive
-
Quality:
-
China Standard
-
Shipping way:
-
By Sea, DHL, FedEx, UPS, TNT, EMS
Product Overview
Jaw Crusher
Jaw Crusher is the one of the most popular stone-crushing equipments in the world, Jaw crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 350Mpa. Our design and production are of high position both at home and abroad. Jaw crusher can be used as the primary crusher to the medium size crushing of various ores and large-size materials , with the
anti-crushing pressure of less than 350Mpa.And the jaw crusher can be divided into two kinds such as coarse and fine crushing .And this series of jaw crusher have complete specifications with the feeding particle size of 125mm~750mm
anti-crushing pressure of less than 350Mpa.And the jaw crusher can be divided into two kinds such as coarse and fine crushing .And this series of jaw crusher have complete specifications with the feeding particle size of 125mm~750mm
FEATURES AT A GLANCE
Working Principle
This jaw crusher uses motor as its power, through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Main Features
a. High efficiency with uniform particle size.
b. Simple structure, and easy to operate, reduce the operation cost.
c. Crushing chamber is deep and has no dead space, which helps improve the feeding capacity and productivity.
d. Adjustment device of gasket type discharging end is reliable and convenient to use.
e. The discharging end has wide adjusting range which can increase the flexibility of our equipment.
f. Lubrication system is safe and reliable.
g. Over loading protection.
h. Accessories are convenient to replace, and little maintenance is needed.
b. Simple structure, and easy to operate, reduce the operation cost.
c. Crushing chamber is deep and has no dead space, which helps improve the feeding capacity and productivity.
d. Adjustment device of gasket type discharging end is reliable and convenient to use.
e. The discharging end has wide adjusting range which can increase the flexibility of our equipment.
f. Lubrication system is safe and reliable.
g. Over loading protection.
h. Accessories are convenient to replace, and little maintenance is needed.
PRODUCT SPECIFICATIONS
|
PE-150*250
|
150*250
|
125
|
1-5
|
5.5
|
0.8
|
950*1100*1100
|
|
PE-200*300
|
200*300
|
180
|
2-10
|
7.5
|
1.2
|
1400*900*1200
|
|
PE-250*400
|
250*400
|
210
|
4-15
|
15
|
2.8
|
1450*1350*1500
|
|
PE-400*600
|
400*600
|
350
|
5-22
|
30
|
7
|
1700*1800*1650
|
|
PE-500*750
|
500*750
|
425
|
43-102
|
55
|
10.6
|
2270*2370*2145
|
|
PE-600*900
|
600*900
|
500
|
51-180
|
75
|
16.5
|
3000*2500*2600
|
|
PE-750*1060
|
750*1060
|
630
|
80-195
|
110
|
29
|
2526*2410*2780
|
|
PE-900*1200
|
900*1200
|
780
|
140-270
|
132
|
52
|
2960*2760*3530
|
|
PE-1000*1200
|
1000*1200
|
850
|
190-310
|
132
|
55
|
3889*2826*3025
|
|
PE-1200*1500
|
1200*1500
|
1020
|
260-510
|
180
|
100.9
|
4930*3548*3702
|
|
PEX-150*750
|
150*750
|
120
|
8.5-28
|
18.5
|
3.8
|
1300*1750*1200
|
|
PEX-200*750
|
250*750
|
210
|
15-35
|
22
|
5.5
|
1400*1750*1400
|
|
PEX-250*1000
|
250*1000
|
210
|
20-65
|
37
|
7
|
1400*1980*1440
|
|
PEX-250*1200
|
250*1200
|
210
|
20-75
|
45
|
8.5
|
1400*2180*1440
|
|
PEX-300*1300
|
300*1300
|
250
|
30-105
|
70
|
11
|
1560*2350*1600
|
Details Images
Details about primary crushing, medium and fine crushing
1.Crushing: feed particle size is 300~900mm, the grain size is 100~550mm;
2.Pieces: feed particle size is 100~350mm, the grain size is 20~100mm;
3.Fine: feed particle size is 50~100mm, the grain size is 5~15mm.
2.Pieces: feed particle size is 100~350mm, the grain size is 20~100mm;
3.Fine: feed particle size is 50~100mm, the grain size is 5~15mm.
Application
Let us know
1. What kind of stone you want to crushing ? the max size ?
2. what's your expect capacity ?
3. Do you have some request for final products size ?

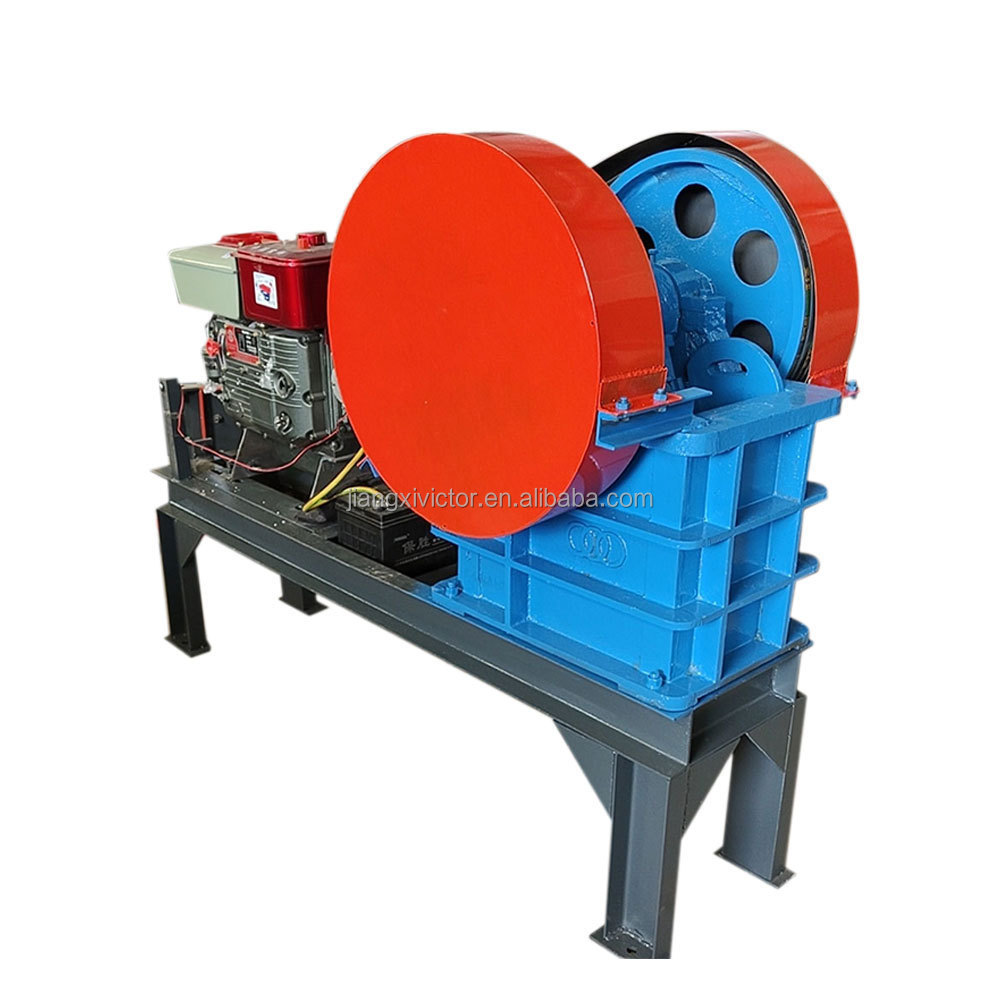

4. We have diesel engine and electric machinery type for you choose.
5.We also manufacture fixed and portable diesle engine type for you choose.
2. what's your expect capacity ?
3. Do you have some request for final products size ?
4. We have diesel engine and electric machinery type for you choose.
5.We also manufacture fixed and portable diesle engine type for you choose.
