Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HX-600
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
5*1.15*1.8m
-
Weight:
-
1500 KG
-
Keywords:
-
plastic t-shirt bag making machine
-
bag-making width:
-
100-500mm
-
bag-making thickness:
-
0.1mm
-
bag-making speed:
-
50-120pcs/min
-
material:
-
plastic film
-
system:
-
Stepping motor
-
Total power:
-
5kw
-
characteristic:
-
fully automatic
-
advantage:
-
economical and pratical
-
application:
-
shopping bag
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HX-600
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
5*1.15*1.8m
-
Weight:
-
1500 KG
-
Keywords:
-
plastic t-shirt bag making machine
-
bag-making width:
-
100-500mm
-
bag-making thickness:
-
0.1mm
-
bag-making speed:
-
50-120pcs/min
-
material:
-
plastic film
-
system:
-
Stepping motor
-
Total power:
-
5kw
-
characteristic:
-
fully automatic
-
advantage:
-
economical and pratical
-
application:
-
shopping bag
Product Description
Single line heat cutting sealing biodegradable t-shirt plastic bag making machine price manufacture

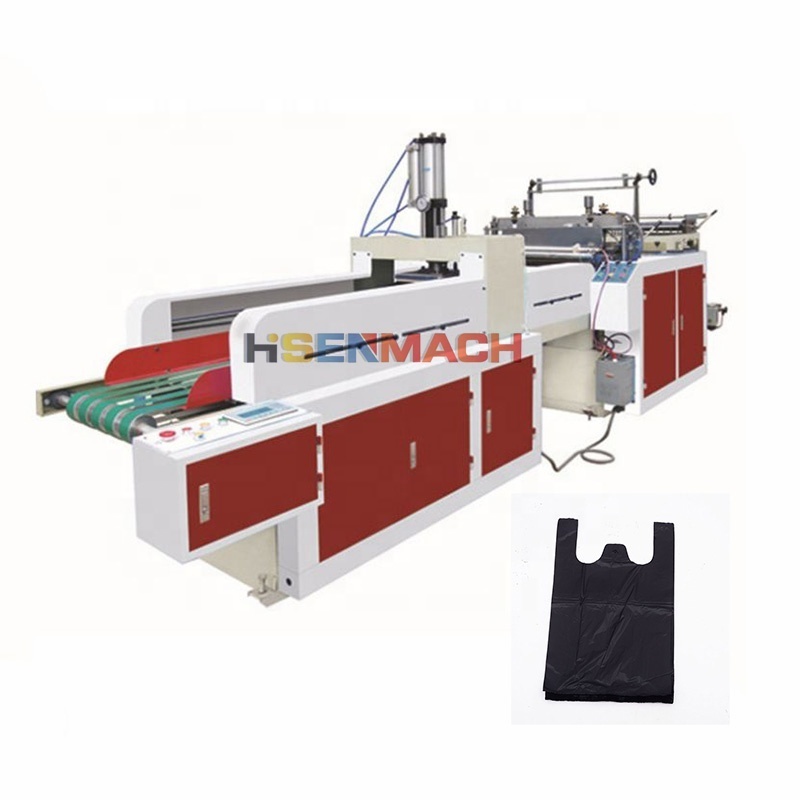

T-shirt Bag Making Machine
Use
This machine is used for hot sealing material such as HDPE, LDPE and PP. It is the ideal equipment for making plastic flat bag.
Characteristic
1. The whole machine is controlled by micro computer, and the stepping motor is used to tow materials (optional servo motor control system).
2. Arbitrary fixed length, step long photoelectric tracking, accurate, stable, automatic stop, photoelectric controlled feeding.
3. Automatic counting and programmable counting alarm.
4. Automatic constant temperature to seal the bag mouth firmly and smoothly.
Optional Equipment
1.Automatic Tension (Use: Standard match is manual adjustment tension, added is for automatic setting control tension.)
2.Automatic Correction (Use: It can be corrected automatically if raw materials are not in order.)
3.Gas Expansion Shaft (Use: Standard match is mechanical shaft that needs to remove screw, inflatable shaft do not need screw.)
4.Pneumatic Automatic Loading (Use: No manual lifting, direct pneumatic push button can be automatically up and down by press.)
Specification
|
Model
|
600mm
|
800mm
|
|
Bag Making Line
|
one line
|
one line
|
|
Bag Width
|
50-500mm
|
50-700mm
|
|
Bag Length
|
100-1000mm
|
100-1000mm
|
|
Speed of Bag Making
|
80-150pcs/min
|
80-150pcs/min
|
|
Main Motor
|
1.5KW
|
1.5KW
|
|
Heating Power
|
2.5KW
|
2.5KW
|
|
Required Air Pressure
|
0.5-0.6Mpa
|
0.5-0.6Mpa
|
|
Power Supply
|
220V, 50Hz
|
220V, 50Hz
|
|
Overall Dimension(mm)
|
3500*1250*1600
|
3500*1450*1600
|
|
Weight of Machine
|
800kg
|
900kg
|
