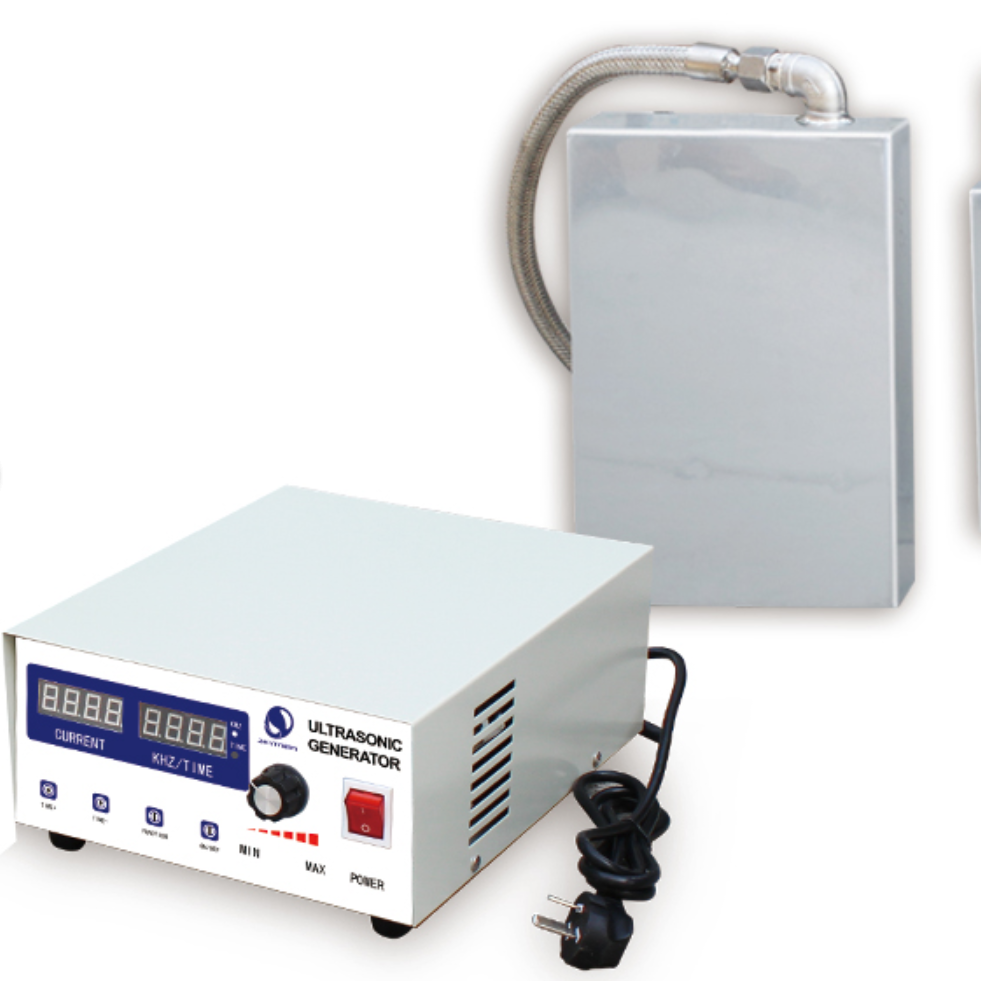

28k/40kHz Immersible Ultrasonic Transducer Box 1800W Waterproof Submersible Ultrasonic Cleaner ultrasonic cleaning machine

28k/40kHz Immersible Ultrasonic Transducer Box 1800W Waterproof Submersible Ultrasonic Cleaner

Model No.	JP-1036I
Ultrasonic model	Ultrasonic Frequency	40 kHz
	Material	Stainless Steel SUS304
	Timer	1~99min adjustable
	Heater	N/A
	Degas	No
	Semiwave	No
	Power Supply	AC 100 ~ 120V, 50 / 60Hz
		AC 220 ~ 240V, 50 / 60 Hz
	Ultrasonic Power	1800W
	Transducer	36pcs
	Basket& cover	No
	Tank Size	550*450*100mm ( L x W x H )
	Max Power	1800W
Packing	Warranty	1 year
Features.	1. Using high-quality high-performance transducers and unique ultrasonic generators, strong cleaning power and stable performance. 2. Using high-quality stainless steel plate, acid and alkali resistance, beautiful appearance. 3. Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements. 4. Integral bending forming, straight seam double-sided protective welding, small deformation and thorough leakage prevention. 5. The shape, power lead-out method, and fixed position can be designed and customized according to needs.
Application.	Manufacture line,Electronics,Aerospace and marine parts, Machinery,Plating and Painting,Food industry
Certificates	CE/ROHS/FCC/PSE/ISO2008 9001

How does the ultrasonic vibration plate works?
The application principle of the ultrasonic vibration plate is that the high-frequency oscillation signal sent by the ultrasonic generator is converted into high-frequency mechanical oscillation by the transducer and propagated to the medium. The flow of liquid produces tens of thousands of tiny bubbles. The tiny bubbles (cavitation nuclei) in the liquid vibrate under the action of the sound field. When the sound pressure reaches a certain value, the bubbles grow rapidly, and then suddenly close, and the bubbles close When a shock wave is generated, thousands of atmospheric pressures are generated around it, destroying insoluble dirt and dispersing them in the cleaning fluid. When the group particles are wrapped in oil and adhere to the surface of the cleaning part, the oil is emulsified, and the solid particles are Separation, so as to achieve the purpose of cleaning the surface of the cleaning part.


Features:
1. Using high-quality high-performance transducers and unique ultrasonic generators, strong cleaning power and stable performance.
2. Using high-quality stainless steel plate, acid and alkali resistance, beautiful appearance.
3. Split structure design, easy to install and use, easy to maintain, suitable for a variety of cleaning requirements.
4. Integral bending forming, straight seam double-sided protective welding, small deformation and thorough leakage prevention.
5. The shape, power lead-out method, and fixed position can be designed and customized according to needs.

Immersible ultrasonic transducer unit can be installed in the tank by three ways:

side, top and bottom.

More details:




Application:
Immersible ultrasonic transducers are sealed stainless steel enclosures, to make a exist tank become a ultrasonic tank.
The number and placement of the submersible ultrasonic cleaning transducers is primarily determined by the volume of liquid in the tank, geometric layout of the existing tank, and load size of the parts. Depending on the size of the tank and parts cleaning application, the Watts of ultrasonic power per gallon or Watts/gal can vary from 30 to 100+ W/gal.

1. Easily adapted to existing process lines;
2. Industrial Design, and Durability;
3. High efficienty magnetostrictive transducers;
4. 40K Or 28KH for varies cleaning objects.
