Quick Details
-
Weight:
-
78000 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
64/56m
-
Mobility:
-
yes
-
Max.Drilling Dia.:
-
1800mm
-
Max.Drilling Depth:
-
64m
-
Speed of rotation:
-
6.9-23rpm
-
Crowd force:
-
210kN
-
Engine displacement:
-
6373L
-
Max.output torque:
-
205kN.m
-
Engine power:
-
261/1800 kw/rpm
-
Crowd stroke:
-
6000mm
-
Swing radius:
-
5060mm
-
Track shoe width:
-
800mm
Quick Details
-
Place of Origin:
-
Hunan, China
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
22300*3000*3600mm
-
Weight:
-
78000 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
64/56m
-
Mobility:
-
yes
-
Max.Drilling Dia.:
-
1800mm
-
Max.Drilling Depth:
-
64m
-
Speed of rotation:
-
6.9-23rpm
-
Crowd force:
-
210kN
-
Engine displacement:
-
6373L
-
Max.output torque:
-
205kN.m
-
Engine power:
-
261/1800 kw/rpm
-
Crowd stroke:
-
6000mm
-
Swing radius:
-
5060mm
-
Track shoe width:
-
800mm
Contact Way
Alune Xie —— Sales Manager
Mobile/Wechat/WhatsApp: +86 193-1332-9653
Email: alune@richmchn.com
Email: alune@richmchn.com
Products Description

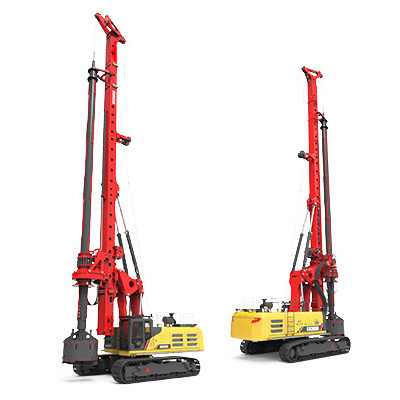

Rotary Drilling Rig SR205C
14m friction Kelly, 13-14m interlocking Kelly made of high strength steel tubes are available; Maximum output torque reaches 205kN.m, the maximum pile depth is 64m down, maximum pile diameter is 1800mm. Engine with the rated power of 212kW@2000rpm, six gears control provides strong power to the machine, improving the drilling capacity. The new design of the main winch delivers faster line speed of 75m/min, bigger lifting power with 185kN line pull.
Safe and reliable
The 5th generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety. Intelligent operation system, advanced hydraulic system and heavy wide chassis ensure efficient, safe, and stable operation. Advanced welding robots and CNC automatic cutting machines ensure high precision and quality of the core components.
Easy to transport&operate
Compact in transport height and weight, the drilling rig is easy to transport in cities. The tailored chassis with larger spaces for pumps and valves is for easy maintenance during work. A spacious cab with a panorama sunroof is designed to give the operator a comfortable environment and wide visibility.
Details Images
Product Paramenters
|
Model
|
SR205
|
|
||
|
Pile
|
Max.pile diameter
|
1800mm
|
||
|
|
Max.pile depth
|
64/56m
|
||
|
|
|
|
||
|
Rotary Drive
|
Max.output torque
|
205kN.m
|
||
|
|
Speed of rotation
|
6.9-23rpm
|
||
|
|
|
|
||
|
Crowd System
|
Crowd force
|
210kN
|
||
|
|
Line pull
|
300kN
|
||
|
|
Stroke
|
6000mm
|
||
|
|
|
|
||
|
Main Winch
|
Line pull
|
300kN
|
||
|
|
Rope diameter
|
36mm
|
||
|
|
Max.line speed
|
65m/min
|
||
|
|
|
|
||
|
Auxiliary Winch
|
Line pull
|
90kN
|
||
|
|
Rope diameter
|
24mm
|
||
|
|
Max.line speed
|
70m/min
|
||
|
|
|
|
||
|
Mast Inclination
|
Forward/Backward
|
5°
|
||
|
|
Lateral
|
±4°
|
||
|
|
|
|
||
|
Main Chassis
|
Engine power
|
261/1800 kw/rpm
|
||
|
|
Engine displacement
|
6373L
|
||
|
|
Chassis length
|
7715mm
|
||
|
|
Extended width
|
4300mm
|
||
|
|
Track shoe width
|
800mm
|
||
|
|
Swing radius
|
5060mm
|
||
|
|
|
|
||
|
Overall Machine
|
Overall height
|
22300mm
|
||
|
|
Operating weight
|
78t
|
||
|
|
Transport width
|
3000mm
|
||
|
|
Transport height
|
3600mm
|
||
