*We supplied clamping force ranges from 98ton to 3400ton injection molding machine. besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine,high speed injection machine.
- Product Details
- {{item.text}}
Quick Details
-
Mold Height(mm):
-
220 - 610 mm
-
Ejector Number:
-
13
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
88 kN
-
Theoretical Shot Volume(cm³):
-
452 cm³
-
Injection Rate (g/s):
-
606 g/s
-
Injection Weight (g):
-
1500 g
-
Screw Speed (rpm):
-
156 - 200 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
760x760
-
Weight (KG):
-
14000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
540 mm
-
Model Number:
-
CC
-
Brand Name:
-
ALPS
-
Power (kW):
-
67 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Keyword:
-
ballpoint pen injection molding machine
-
Controlled:
-
PLC (SIEMENS)
-
Drive type:
-
Hydraulic system
-
Voltage:
-
Customed Avaiable
-
Application:
-
Plastic products
-
LANGUAGE:
-
Language Customized
-
Motor:
-
Energy Saving Pump
-
Machine dimension(L*W*H):
-
7.3*1.85*1.4m
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
639mm
-
Distance between Tie Bars(Height)(mm):
-
590mm
-
Plasticizing Capacity(g/s):
-
32
-
Mold Height(mm):
-
220 - 610 mm
-
Ejector Number:
-
13
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
88 kN
-
Theoretical Shot Volume(cm³):
-
452 cm³
-
Injection Rate (g/s):
-
606 g/s
-
Injection Weight (g):
-
1500 g
-
Screw Speed (rpm):
-
156 - 200 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
760x760
-
Weight (KG):
-
14000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
540 mm
-
Model Number:
-
CC
-
Brand Name:
-
ALPS
-
Power (kW):
-
67 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Keyword:
-
ballpoint pen injection molding machine
-
Controlled:
-
PLC (SIEMENS)
-
Drive type:
-
Hydraulic system
-
Voltage:
-
Customed Avaiable
-
Application:
-
Plastic products
-
LANGUAGE:
-
Language Customized
-
Motor:
-
Energy Saving Pump
-
Machine dimension(L*W*H):
-
7.3*1.85*1.4m
Product Description

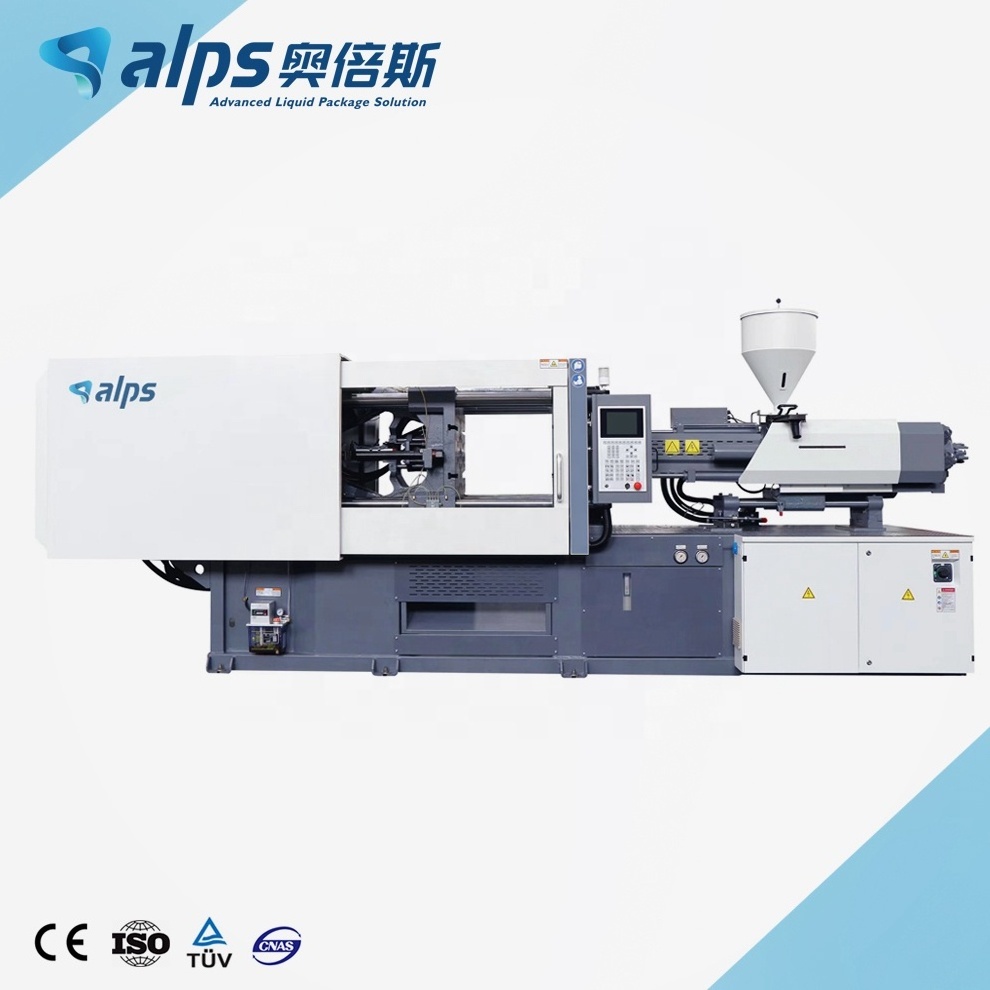

Good Quality Ballpoint Pen Injection Molding Machine / Plastic Making Machinery
Detail photos
|
Technical Parameter :Injection Molding Machine
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Clamping Force
|
Shot weight A/B
|
|
Heat power
|
Pump power
|
Oil tank capacity
|
Dimensional
|
Weight
|
||||||||
|
BST-1000A
|
1000KN
|
128g
|
162g
|
7.6KW
|
11KW
|
180L
|
4.3*1.5*1.6M
|
3.4t
|
||||||||
|
BST-1320A
|
1320KN
|
188g
|
205g
|
8.2KW
|
13KW
|
200L
|
4.5*1.6*1.7M
|
3.9t
|
||||||||
|
BST-1400A
|
1400KN
|
230g
|
252g
|
8.2KW
|
13KW
|
220L
|
4.8*1.6*1.7M
|
4.2t
|
||||||||
|
BST-1650A
|
1650KN
|
286g
|
326g
|
8.2KW
|
15KW
|
250L
|
5.0*1.6*1.7M
|
5t
|
||||||||
|
BST-1800A
|
1800KN
|
335g
|
378g
|
11KW
|
15KW
|
250L
|
5.3*1.6*1.8M
|
5.5t
|
||||||||
|
BST-2050A
|
2050KN
|
415g
|
472g
|
11.6KW
|
17KW
|
270L
|
5.4*1.6*1.8M
|
6t
|
||||||||
|
BST-2300A
|
2300KN
|
546g
|
592g
|
11.6KW
|
18.5KW
|
300L
|
5.7*1.8*2.0
|
6.5t
|
||||||||
|
BST-2600A
|
2600KN
|
650g
|
690g
|
15.5KW
|
25KW
|
350L
|
6.1*1.7*1.8
|
8t
|
||||||||
|
BST-3000A
|
3000KN
|
709g
|
760g
|
15.5KW
|
25KW
|
370L
|
6.5*1.8*1.8
|
9t
|
||||||||
|
BST-3400A
|
3400KN
|
772g
|
826g
|
17.5KW
|
30KW
|
400L
|
6.7*2.0*1.9
|
10.8t
|
||||||||
|
BST-3850A
|
3850KN
|
1008g
|
1072g
|
17.5KW
|
30KW
|
400L
|
7.0*2.2*2.0
|
11.8t
|
||||||||
|
BST-4500A
|
4500KN
|
1430g
|
1512g
|
20.5KW
|
37KW
|
450L
|
7.3*2.3*2.4
|
13.8t
|
||||||||
|
BST-4800A
|
4800KN
|
1590g
|
1670g
|
23.4KW
|
40KW
|
600L
|
8.3*2.2*2.2
|
16.2t
|
||||||||
|
BST-5200A
|
5200KN
|
1980g
|
2130g
|
28.1KW
|
43.5KW
|
750L
|
8.6*2.2*2.3
|
20t
|
||||||||
|
BST-5800A
|
5800KN
|
2230g
|
2430g
|
28.1KW
|
48.5KW
|
850L
|
8.75*2.2*2.3
|
21.8t
|
||||||||
|
BST-6500A
|
6500KN
|
2745g
|
2870g
|
37.1KW
|
55KW
|
1000L
|
9.2*2.2*2.4
|
26t
|
||||||||
|
BST-7500A
|
7500KN
|
3810g
|
3960g
|
40.9KW
|
67KW
|
1200L
|
10.7*2.3*2.7
|
38t
|
||||||||
|
BST-8500A
|
8500KN
|
4200g
|
4350g
|
42.5KW
|
74KW
|
1300L
|
11*2.4*2.8
|
45t
|
||||||||
Detailed Images
Injection Molding Machine
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
with imported and famous components !
Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.
Company Introduction
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
