- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SHOW L18B
-
Dimension:
-
W700x D620x H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000 W
-
Format:
-
N/A
-
The body material:
-
High quality birch plywood
-
Product Name:
-
18 inch subwoofer
-
System type:
-
1 unit line array subwoofer
-
Rated power:
-
1000w
-
Max power:
-
2000w
-
Peak power:
-
4000w
-
Nominal impedance:
-
8 Ω
-
Nominal sensitivity(1W@1m):
-
99dB
-
Max SPL(Pmax@1m):
-
129dB@1000w(132dB@2000w)
-
Frequency response (-10dB):
-
35Hz-250Hz
-
Crossover modes:
-
Passive
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
SHOW L18B
-
Dimension:
-
W700x D620x H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000 W
-
Format:
-
N/A
-
The body material:
-
High quality birch plywood
-
Product Name:
-
18 inch subwoofer
-
System type:
-
1 unit line array subwoofer
-
Rated power:
-
1000w
-
Max power:
-
2000w
-
Peak power:
-
4000w
-
Nominal impedance:
-
8 Ω
-
Nominal sensitivity(1W@1m):
-
99dB
-
Max SPL(Pmax@1m):
-
129dB@1000w(132dB@2000w)
-
Frequency response (-10dB):
-
35Hz-250Hz
-
Crossover modes:
-
Passive

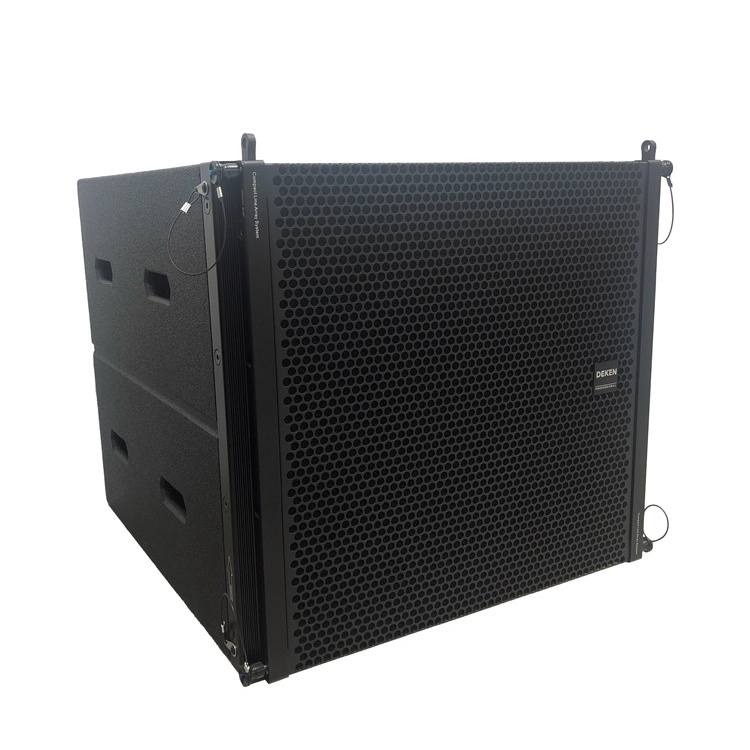

Deken SHOW L18B Line Array System dj Equipment Woofer 18 Inch 1 Unit Omnidirectional Bass Speaker Professional Subwoofer Box
Products Description
EX SHOW L18B line array 18 inch 1 unit omnidirectional bass speaker line array subwoofer
Descriptions
System type: 1 unit line array subwoofer
Rated power：1000 W
Max power：2000 W
Peak power：4000W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1500W@ 8 Ω
Nominal sensitivity（1W@1m）：99 dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response：35Hz—250Hz
Nominal coverage pattern（-6dB）：omnidirectional
Speaker component：LF driver 18″（460mm diameter 100 mm voice coil）×1
Connector：Speakon NL4×2 PIN1+/2+POS. PIN1-/2-NEG.
Enclosure：15mm（0.6″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions：W700mm x D620mm x H520mm
Weight：43.25 kg
Shipping weight：45.5kg
Reference applications:：Ultra-low frequency compensation for Show L210
Rated power：1000 W
Max power：2000 W
Peak power：4000W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1500W@ 8 Ω
Nominal sensitivity（1W@1m）：99 dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response：35Hz—250Hz
Nominal coverage pattern（-6dB）：omnidirectional
Speaker component：LF driver 18″（460mm diameter 100 mm voice coil）×1
Connector：Speakon NL4×2 PIN1+/2+POS. PIN1-/2-NEG.
Enclosure：15mm（0.6″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions：W700mm x D620mm x H520mm
Weight：43.25 kg
Shipping weight：45.5kg
Reference applications:：Ultra-low frequency compensation for Show L210
|
Model No.
|
SHOW L18B
|
|
|
System type
|
18 inch line array subwoofer
|
|
|
Rated power
|
1000W
|
|
|
Max power
|
2000W
|
|
|
Peak power
|
4000W
|
|
|
Nominal impedance
|
8 Ω
|
|
|
Recommended power amplifier output rating
|
1000W - 1500W@ 8 Ω
|
|
|
Nominal sensitivity（1W@1m）
|
99 dB
|
|
|
Max SPL（Pmax@1m）
|
129dB@1000W(132dB@2000W)
|
|
|
Frequency response(±6 dB)
|
35Hz - 250Hz
|
|
|
Nominal coverage pattern（-6dB）
|
Omnidirectional
|
|
|
Speaker component
|
LF driver 18″（460mm diameter 100 mm voice coil）× 1
|
|
|
Crossover modes
|
Passive
|
|
|
Connector
|
Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
|
|
|
Enclosure
|
15mm（0.6″）High quality birch plywood
|
|
|
Hanging hardware: professional adjustable Angle hanging parts
|
|
|
|
Color
|
Default is black, other colors can be customized
|
|
|
Dimensions
|
W700mm x D620mm x H520mm
|
|
|
Weight(each)
|
45.5kg
|
|
|
Reference applications:
|
Performance, theatre, ballroom, auditorium
|
|
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
