Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
BLS
-
Model Number:
-
BLS
-
Place of Origin:
-
China
-
Horsepower:
-
22kw`
-
Outlet Size:
-
model
-
Power:
-
22kw, 0.55KW-22KW
-
Theory:
-
Rotary Pump
-
Usage:
-
Colloid Pump type Lube Oil Transfer Pump/Lube Oil Pump
-
L/100R:
-
3-200L
-
Flow:
-
0.3--43 M3/H
-
Viscosity:
-
up to 1,000,000 cps
-
Material:
-
Stainless Steel 304/316
-
Flow Rate:
-
300-43000L/H
-
Rotation Speed:
-
200-400RPM
-
CONNECTION:
-
clamp, union, fange
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, Food and Beverage Industry, Wastewater Transport and Flood Control
-
Pressure:
-
0.6mpa
-
Voltage:
-
380V
-
Warranty:
-
1 year
-
Brand Name:
-
BLS
-
Model Number:
-
BLS
-
Place of Origin:
-
China
-
Horsepower:
-
22kw`
-
Outlet Size:
-
model
-
Power:
-
22kw, 0.55KW-22KW
-
Theory:
-
Rotary Pump
-
Usage:
-
Colloid Pump type Lube Oil Transfer Pump/Lube Oil Pump
-
L/100R:
-
3-200L
-
Flow:
-
0.3--43 M3/H
-
Viscosity:
-
up to 1,000,000 cps
-
Material:
-
Stainless Steel 304/316
-
Flow Rate:
-
300-43000L/H
-
Rotation Speed:
-
200-400RPM
-
CONNECTION:
-
clamp, union, fange
Product Description

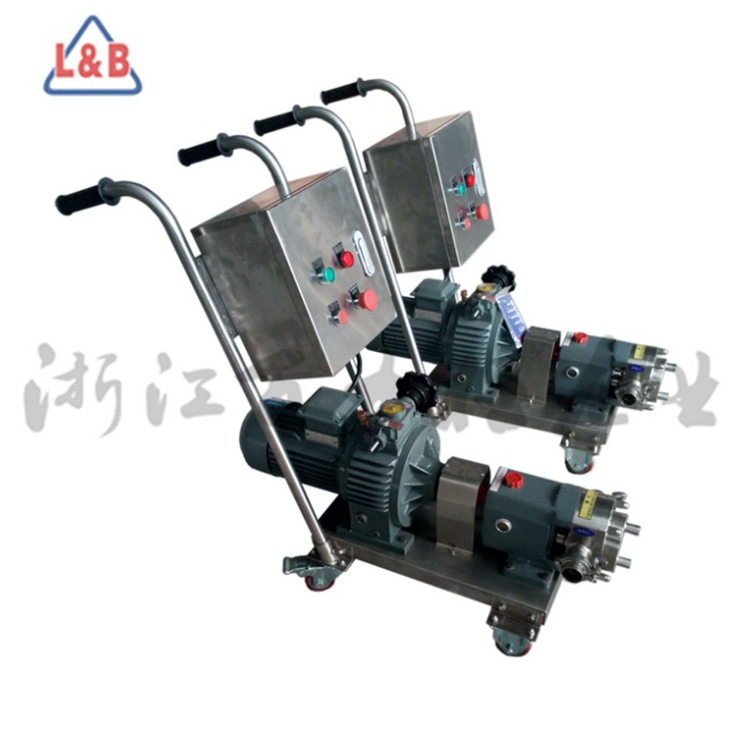

Food & Beverage Industries Transferring Honey lobe pumping machine, Colloid Chocolate Paste pump, Lube Oil/sugar syrup pumps
Brand: L&B
Material: sanitary SUS 304/316
Abstract
Stainless steel lobe pumps (also called as colloid pumps, rotor pumps, threeleaf pumps and etc.), are widely used on beer, food, dairy, beverage, and so on. For the special shape of the rotor and the high precision, we make rotor curve program composition by C Language and then input in machining centre to process, which confirms the high precision of the key parts and the strict requirement.
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump.
Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.
|
Product Name:
|
Colloid Pump type Lube Oil Transfer Pump/Lube Oil Pump
|
|
Description:
|
Designed according to ISO9001 standard, widely used for transfer liquid media in the food-processing, cosmetics industries, sometimes, the media can contain a little solids.
|
|
Construction:
|
pump body, gear box, different rotor shapes(tri-lobe rotors, butterfly type rotors, single impeller etc)
|
|
Material:
|
SS304/SS316L
|
|
Speed adjustment:
|
stepless and frequency control
|
|
Max. Flow:
|
43000L/H
|
|
L/100R
|
3L, 6L, 8L, 12L, 20L, ...200L
|
|
Max.outlet pressure:
|
0.6Mpa(media viscosity would make it different)
|
|
Highest media temperature:
|
80°c, more higher adopts Double mechanical seal
|
|
Speed range
|
200-500rpm
|
|
Rotor Type:
|
2-leaves(butterfly shape), 3-leaves, signal butterfly
|
|
Mechanical seal:
|
SIC/SiC/EPDM(Standard)
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Available connection:
|
Clamp, Union, Flange
|
|
Available standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electric
|
|
Application scope:
|
Dairy, food, beverage, cosmetic, etc
|
Technical parameters
based on 1000CTS liquid test
|
Model
|
L/100R
(L)
|
Rpm
|
Flow rate
(L/H)
|
Power
(kw)
|
Inlet
|
Connection
type |
|
BLS-3
|
3L
|
200-500
|
300-800
|
0.55
|
Φ25*1.5
|
union flange |
|
BLS-6
|
6L
|
200-500
|
650-1600
|
0.75
|
Φ25*1.5
|
|
|
BLS-8
|
8L
|
200-500
|
850-2160
|
1.5
|
Φ32*1.5
|
|
|
BLS-12
|
12L
|
200-500
|
1300-3200
|
2.2
|
Φ38*1.5
|
|
|
BLS-20
|
20L
|
200-500
|
2100-5400
|
3
|
Φ8*1.5
|
|
|
BLS-30
|
30L
|
200-400
|
3200-6400
|
4
|
Φ2*1.5
|
|
|
BLS-36
|
36L
|
200-400
|
3800-7600
|
4
|
Φ50.8*1.5
|
|
|
BLS-52
|
52L
|
200-400
|
5400-11000
|
5.5
|
Φ63.5*1.5
|
|
|
BLS-66
|
66L
|
200-400
|
7100-14000
|
7.5
|
Φ63.5*1.5
|
|
|
BLS-78
|
78L
|
200-400
|
9000-18000
|
7.5
|
Φ76*2
|
|
|
BLS-100
|
100L
|
200-400
|
11000-22000
|
11
|
Φ76*2
|
|
|
BLS-135
|
125L
|
200-400
|
15000-30000
|
15
|
Φ89*2
|
|
|
BLS-160
|
160L
|
200-400
|
17000-34000
|
18.45
|
Φ102*2
|
|
|
BLS-200
|
200L
|
200-400
|
21600-43000
|
22
|
Φ102*2
|
|
Detailed Images
Pump Materail:
1.SS304 and SS316 sanitary stainless steel
2. sanitary polishing, 3A standard
adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.
Various Rotors:
1. Single impeller: transfer medium with a little large grains, not serious to damage grains
2. Double impeller: transfer medium with middle or small grains, low damage rate, low impulse, the capacity is smaller than tri-impeller
3. Tri-impeller: common type, capacity and performance is better than other rotors
Speed adjustment:
Standard stepless and frequency control can be avaible
Sealing option:
1)Single machine seal (single machine seal below 80C)
2)Double machine seals (double machine seals above 80C, cooling water must be connected when starting up)
Available inlet/outlet connection:
Clamp, Union, Flange etc.
Motor device
Pure copper motor: low noise, stable dynamic, sustainable work.
Motor + mechanical friction stepless transmission
The speed change of this kind of gearbox relies on the manual adjustment to realize its characteristic is safe and reliable, the torque is big, the flow is stepless adjustable, the shortcoming is not automatic adjustment, is more troublesome, the speed adjustment carries on in the running process, must not in the stop state speed adjustment
Frequency motor + frequency converter
This way can realize the automatic adjustment of the speed, that is, the realization of the meteor stepless adjustment, its advantage is a high degree of automation.Low speed torque is short, the disadvantage is that the inverter price is higher
Characteristic
1)compared with centrifugal pump ( milk pump):
centrifugal pump is used widely for its simple construction and low cost. There are several main differences compared with lobe pump:
a) Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently. But the flow of centrifugal pump can not be controlled and falling as the increase of resistance; lobe pump has rather strong suction capacity but centrifugal pump has to be filled of liquid before operating.
b) The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed. The rotation speed of centrifugal pump is very high, the material is impacted strongly and for the effect of the centrifugal pull, the
component is often different when transfer mixture, it will decrease the quality of the finish product. So the lobe pump is the best choice to solve this problem, it is most suitable to used on transfer mixture even material that contains solid particles.
c) Lobe pump can transfer high viscosity material, so it also called colloid pump. But centrifugal pump has no this characteristic.
d) Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.
e) The production of lobe pump is more complicated, the cost is higher, it is the biggest defect compared with centrifugal pump.
2) Compared with screw pump ( underflow pump):
They all belong to positive-displacement pump, so they have similar performance——can transfer high viscosity material smoothly, have high discharge pressure.
But the biggest defect of screw pump is it is not sanitary grade, the abrasion of parietal rubber may pollute the material.
Lobe pump has streamline construction and there are no dead center and non-metal element in the rotor room, so it is more suitable to industries of higher hygiene requirement. Particularly as automatic degree of the production line is higher, and the adoption of CIP, it is better to choose lobe pump.
