Large and medium-sized pipe bending machine with boosting design,can solve the trouble of big radius,big angleand tin bending pipe.Adopting touched operation panel by single chip computer control,man-machine conversation operating, very convenient.
The angle of bending uses encoder tracking and vide and feedback with a high bending precision.
With automatic counting and power-off memory function.
Equipped with water cooling system to ensure the stability of the machine for a long time
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SXZG
-
Power (kW):
-
7.5
-
Weight (KG):
-
2000
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
Sheet / Plate Rolling
-
Product name:
-
square tube bender
-
Type:
-
semi-automatic
-
Color:
-
Optinal
-
Available bend profiles:
-
Round tube, square tube, angle steel and so on
-
Application:
-
car,bike,furniture and structures
-
Usage:
-
pipe bending
-
Voltage:
-
220V/380V/415V/440V/customized
-
Certification:
-
ce
Quick Details
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.01
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SXZG
-
Power (kW):
-
7.5
-
Weight (KG):
-
2000
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Raw Material:
-
Sheet / Plate Rolling
-
Product name:
-
square tube bender
-
Type:
-
semi-automatic
-
Color:
-
Optinal
-
Available bend profiles:
-
Round tube, square tube, angle steel and so on
-
Application:
-
car,bike,furniture and structures
-
Usage:
-
pipe bending
-
Voltage:
-
220V/380V/415V/440V/customized
-
Certification:
-
ce
DW75NC aluminum manual hydraulic pipe bender and 3 inch steel pipe bender for sale
Hydraulic pipe bender
Workpiece Samples
Customized according to customers' requirements
Product Description

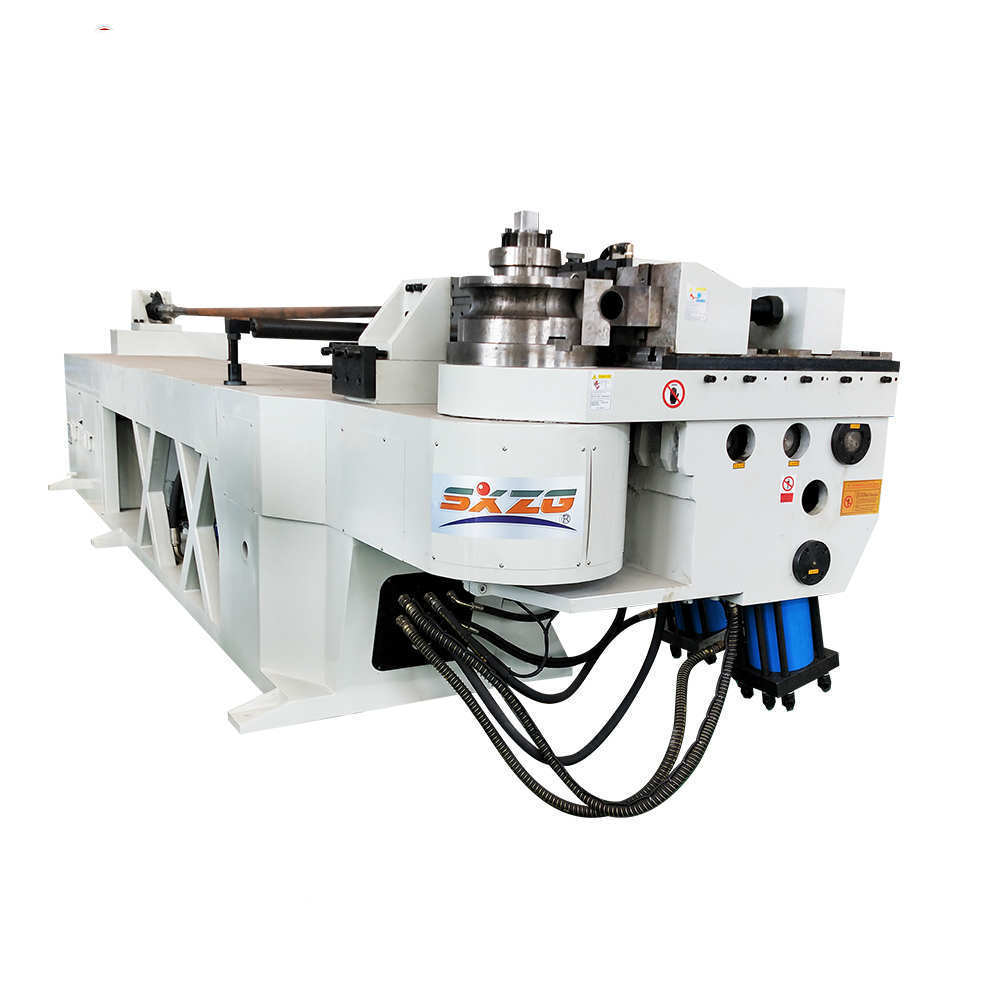

NC Pipe Bending Machine
Detailed Images
Pipe bending machine is used for making handcart, trolley, slide and fitness equipment
Main Components for Pipe Bending Machine
1.Main electrics: Schneider, France
2.Controller: Dingji ,Taiwan
3.Valve: Seven Ocean
1.Main electrics: Schneider, France
2.Controller: Dingji ,Taiwan
3.Valve: Seven Ocean
Mandrel Cylinder
Schneider Electrics, France
Air Cooler
Ensure the stability of the machine for a long time
Simens Motor
Size Information
|
Item
|
DW75NC
|
|
Max bending capability
|
Φ50×4 (mm)
|
|
Max bending radius |
R400 (mm)
|
|
Min bending radius |
According to diameter
|
|
Max bending degree |
190 (Degree)
|
|
Max effective distance of mandrel
|
2800 (mm)
|
|
Control system
|
NC Control
|
|
Max elbow bend pipe
|
16
|
|
Max storable sections
|
16x16
|
|
Motor power
|
7.5 (KW)
|
|
Max hydraulic pressure
|
12 (Mpa)
|
|
Hydraulic system control
|
Electromagnetic valve
|
Packing&Shipping
1. Our wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time
2. All the spare parts of the
machines were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
