Quick Details
-
Weight (KG):
-
0.2 KG
-
Product name:
-

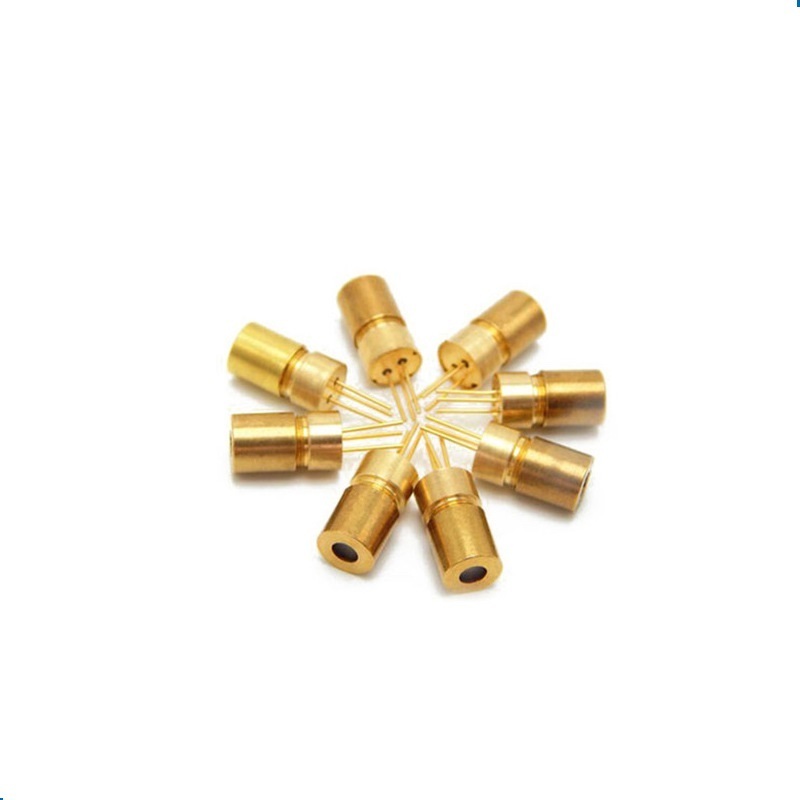

405nm 20mw point laser head low power blue violet laser module
-
Laser Wavelength:
-
405nm
-
Laser Power:
-
20mw
-
Working Current:
-
40-60mA
-
Operating Voltage:
-
4.8-5.6 V
-
Storage Temperature:
-
-40°C-85℃
-
working Temperature:
-
0°C-75°C
-
Operating temperature:
-
8000H
-
Threshold Current:
-
26-40mA
-
Wire length:
-
50mm
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Brand Name:
-
XinLand
-
Weight (KG):
-
0.2 KG
-
Product name:
-
405nm 20mw point laser head low power blue violet laser module
-
Laser Wavelength:
-
405nm
-
Laser Power:
-
20mw
-
Working Current:
-
40-60mA
-
Operating Voltage:
-
4.8-5.6 V
-
Storage Temperature:
-
-40°C-85℃
-
working Temperature:
-
0°C-75°C
-
Operating temperature:
-
8000H
-
Threshold Current:
-
26-40mA
-
Wire length:
-
50mm
Specification
|
PHOTOELECTRIC PARAMETER
|
|
|
|
|
|
|
||||||
|
TC=25℃
|
|
|
|
|
|
|
||||||
|
Items
|
|
Symbols
|
|
Values
|
|
Unit
|
||||||
|
Laser Diode Reverse Voltage
|
|
Vr1(D)
|
|
2
|
|
V
|
||||||
|
Working temperature
|
|
Topr
|
|
0℃-75℃
|
|
℃
|
||||||
|
Storage temnerature
|
|
Tstg
|
|
- 40℃-85C
|
|
℃
|
||||||
|
TC=25℃
|
|
|
|
|
|
|
||||||
|
Items
|
Symbols
|
Min
|
Type
|
Max
|
Unit
|
Condition
|
||||||
|
Optical Output
|
Po
|
/
|
7
|
/
|
mW
|
|
||||||
|
Threshold Current
|
Ith
|
/
|
26
|
40
|
mA
|
7mW
|
||||||
|
Working current
|
Iop
|
/
|
40
|
60
|
mA
|
7mW
|
||||||
|
Operating Voltage
|
Vop
|
/
|
4.8
|
5.6
|
V
|
7mW
|
||||||
|
Lasing Wavelength
|
λp
|
400
|
405
|
410
|
nm
|
7mW
|
||||||
|
Monitor Current
|
Im
|
0.1
|
0.2
|
0.5
|
mA
|
7mW
|
||||||
|
Wire length
|
W1
|
/
|
50
|
/
|
mm
|
|
||||||
|
Service Life
|
MTTF
|
|
8000h
|
|
Hrs
|
|
||||||
|
Lightspot Size
|
Φ
|
/
|
|
|
|
|
||||||
Products Description
pointing and positioning 405nm 20mw blue-violet point laser module
