Quick Details
-
Brand Name:
-
AISIKAI
-
Model Number:
-
SKT2-80A/4P
-
Rated Current:
-
80A
-
Model:
-
ATS
-
Rated frequency:
-
50hz/60hz
-
Rated voltage:
-
400V
-
keywords:
-
manuel transfer switch
-
Color:
-
Optional
-
Packing:
-
Plywood Packing or Plastic Packing
-
Noise:
-
65-65DB
-
Phase:
-
Single phase/3phase
-
Speed:
-
1500/1800RPM
-
Quality:
-
High Quatity
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AISIKAI
-
Model Number:
-
SKT2-80A/4P
-
Rated Current:
-
80A
-
Model:
-
ATS
-
Rated frequency:
-
50hz/60hz
-
Rated voltage:
-
400V
-
keywords:
-
manuel transfer switch
-
Color:
-
Optional
-
Packing:
-
Plywood Packing or Plastic Packing
-
Noise:
-
65-65DB
-
Phase:
-
Single phase/3phase
-
Speed:
-
1500/1800RPM
-
Quality:
-
High Quatity
PRODUCT DESCRIPTION

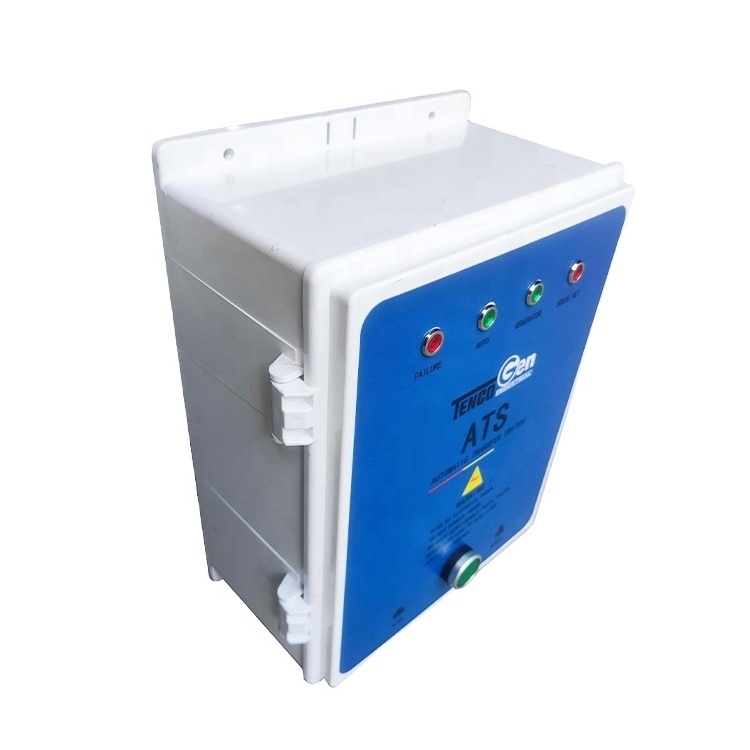

automatic transfer switch adopt high quality and reliable switch module which is designed for emergency power supply. It can transfer the load between mains power and mains power or between mains and generator in few seconds. It can automatically detect the voltage and frequency of mains power or generator power timely. The ATS has an intelligent integrated design with PC pole and zero position function. It has larger isolation distance to withstand higher impact voltage above 8KV. The technology and performance of the ATS conform with standard of IEC60947-6-1, GB14048.11 2002.
PRODUCT SPECIFICATIONS
|
model
|
ATS
|
|
Rated current Ie(A)
|
16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
|
|
Installation
|
Din rail
|
|
Rated insulation voltage Ui (V)
|
AC690, 50HZ
|
|
Rated working voltage Ue (V)
|
AC400, 50HZ
|
|
Rated impulse withstand voltage (KV )
|
8KV
|
|
Poles
|
2P 3P 4P
|
|
SCPD (FUSES )
|
RT16-00-63A
|
|
Control circuit
|
Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us |
|
Ancillary circuit
|
Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A |
|
Switching time
|
<50ms
|
|
Action time
|
<50ms
|
OUR SERVICES
Guangling strictly adopt the international warranty.
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
Warranty: Guarantee for one year or 1000 running hours (accord to whichever reach first) from shipment date.
During the guarantee period, guangling will provide the free easy-damaged spare parts for problems caused
by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-
made operation.
After expiration, Guangling provides cost spare-parts maintenance for gensets .
FQA
Q1: What is your MOQ of this item?
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
A: 1 pcs
Q2: What is the lead time?
A:2days after receiving your L/C or TT deposit.But if your order is some special engine and alternator, then the delivery time is longer.
Q3: Is it able to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: Where is your Loading Port?
A: Any port in China. Usually Fuzhou port.
Q5: What is your payment term?
A: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
Q6: What is your company's available production capacity?
A:1000 000000
For More details,can send us inqury to know Factory Pirce!
