Quick Details
-
Conveyor Speed:
-
0.22m/s
-
Conveyor Max Load:
-
150kg
-
Penetration:
-
30 to 40mm Steel
-
Dose per Inspection:
-
< 0.87μGy/h
-
X-ray Leakage:
-
0.09μGy/h
-
Film Safety:
-
Guarantee ISO1600 Film
-
Beam Direction:
-
Upward
-
Power supply:
-
220VAC(±10%)50±3Hz
-
Noise:
-
<65db
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HMW SAFETY
-
Tunnel Size:
-
600(W)*500(H)mm
-
Conveyor Speed:
-
0.22m/s
-
Conveyor Max Load:
-
150kg
-
Penetration:
-
30 to 40mm Steel
-
Dose per Inspection:
-
< 0.87μGy/h
-
X-ray Leakage:
-
0.09μGy/h
-
Film Safety:
-
Guarantee ISO1600 Film
-
Beam Direction:
-
Upward
-
Power supply:
-
220VAC(±10%)50±3Hz
-
Noise:
-
<65db

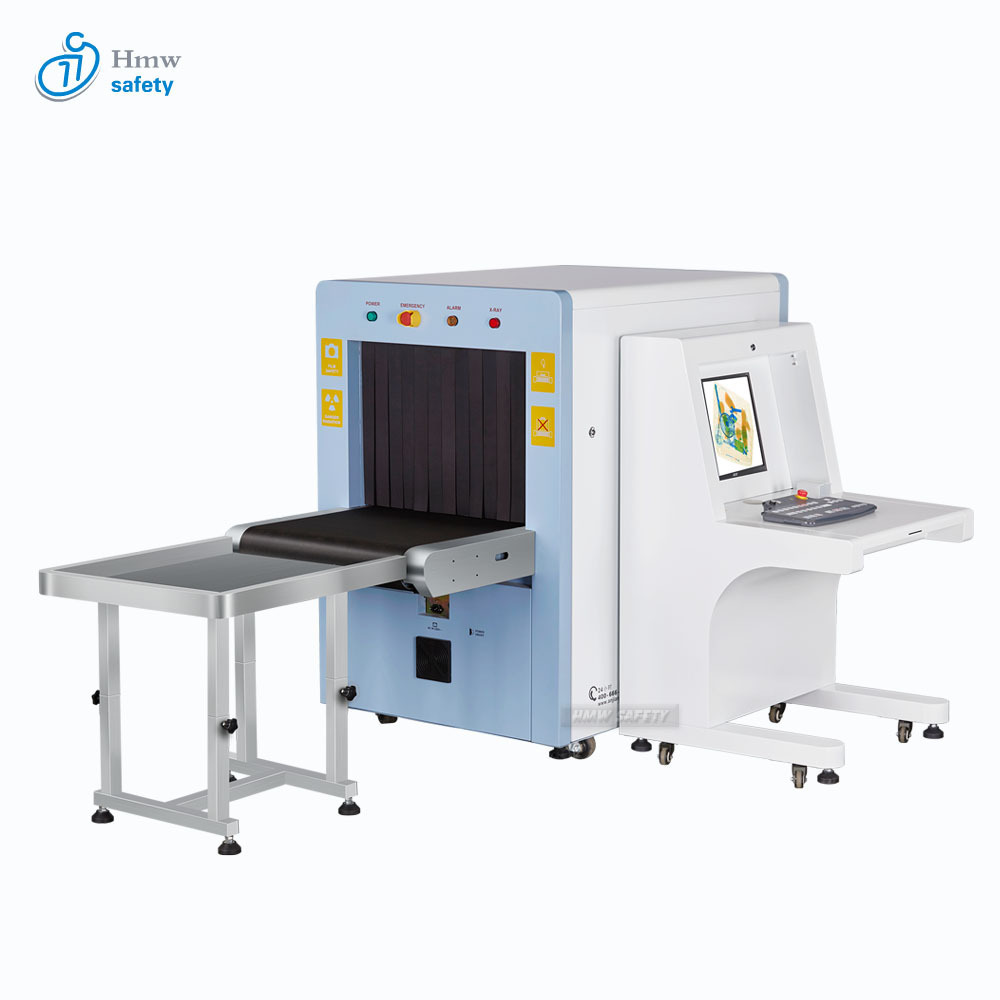

X Ray Baggage Inspection Scanner HW 6550
General Specification
|
Tunnel Size |
650(W)*500(H)mm |
|
Conveyor Speed |
0.22m/s |
|
Conveyor Max Load |
150kg |
|
Wire Resolution |
32AWG to 40AWG |
|
Spatial resolution |
horizontal:1.3 or 1.0mm ; vertical: 1.3 or 1.0mm |
|
Penetration |
30 to 40mm Steel |
|
Film Safety |
Guarantee ISO1600 Film |
|
X-ray Leakage |
<1 μSv/h (at a distance of 5cm from external housing) |
|
Pass rate |
720 bags per hour |
Installation Data
|
Operation temperature/Humidity |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power |
220VAC(±10%)50±3Hz |
|
Power Consumption |
1.0 KW (max), 0.7KW(working) |
|
Noise |
<58db |
X-ray Generato r
|
Beam direction |
Diagonal |
|
Generate angle |
80 degree |
|
Anode Voltage |
140Kv or (100Kv to 160Kv adjustable) |
|
Anode power |
0.4 to 0.5mA |
|
Cooling / Duty Cycle |
Oil Cooling /100% |
Image Syste m
|
X-ray Sensor |
L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
|
Monitor |
High Resolution Color, LCD Accord, 17 inch (19 inch optional) |
|
Image Processing |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning,image retrieval. |
|
Image Grey Level |
4096 |
|
Image Processing |
24bit for processing real time |
|
Image storage |
Storage 50000 pictures in real time |
|
Zoom |
max 64 Times Enlarge, Whole screen continuous observation |
