- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOPS
-
Model Number:
-
E7018
-
Operating Current:
-
AC/DC
-
Application:
-
welding
-
Product Name:
-

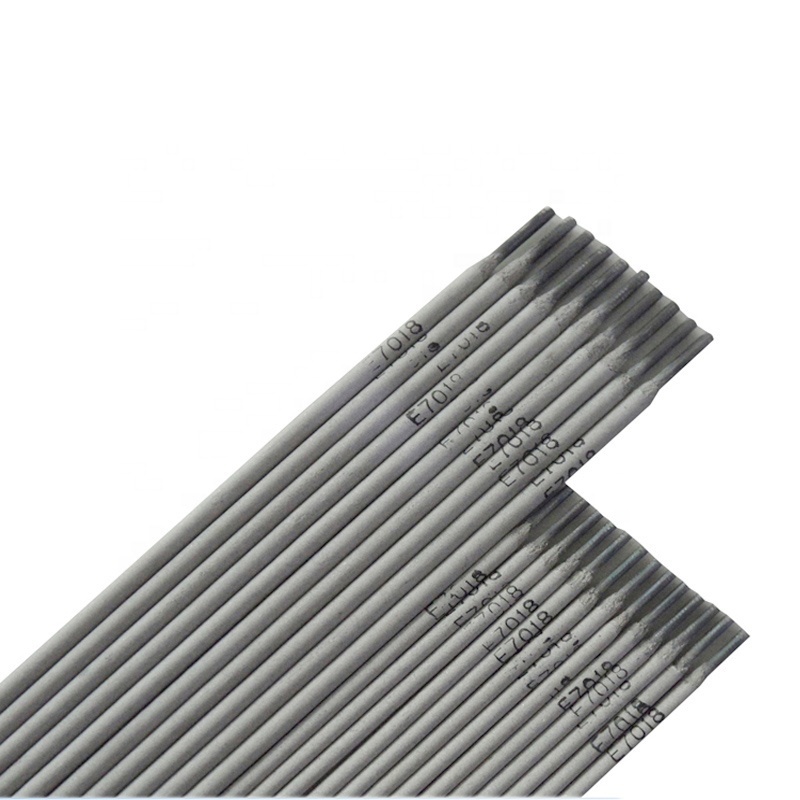

Welding Electrodes E7018/ Aws E7018 Carbon Steel Welding Rods
-
Usages:
-
Welding Tool
-
Type:
-
Welding Elcetrode
-
Keyword:
-
Electrode Rod
-
Color:
-
Grey
-
Advantage:
-
Easy Arc
-
Standard:
-
AWS A.5.1 E6013/7016/6018/7018
-
Certification:
-
ISO9001
-
Length:
-
300mm-500mm
Quick Details
-
Material:
-
STEEL ALLOY
-
Welding Current:
-
depending on the diameter, 60-90, 90-120, 120-150
-
Operating Temperature:
-
Standard Temperature
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TOPS
-
Model Number:
-
E7018
-
Operating Current:
-
AC/DC
-
Application:
-
welding
-
Product Name:
-
Welding Electrodes E7018/ Aws E7018 Carbon Steel Welding Rods
-
Usages:
-
Welding Tool
-
Type:
-
Welding Elcetrode
-
Keyword:
-
Electrode Rod
-
Color:
-
Grey
-
Advantage:
-
Easy Arc
-
Standard:
-
AWS A.5.1 E6013/7016/6018/7018
-
Certification:
-
ISO9001
-
Length:
-
300mm-500mm
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It has excellent welding technological properties . The arc is stable . The spatter is small. The slag viscosity is moderate. It can be used freely . The slag is easy to clean . The welded seam is smooth and fine and easy to restrike the arc.
Application:
Suitable for welding sheet metal structure made of low-carbon steel , such as ships,vehicles, building, and general machinery .
Conform with:
GB/T 5117 E4313
AWS A5.1 E6013
ISO 2560-B-E 43 13A
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | ≤0.16 | ≤0.75 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σ b (MPa) | σ c (MPa) | δ s (%) |
| Guarantee Value | ≥490 | ≥400 | ≥22 |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 60-90 | 90-120 | 120-150 | 170-200 | 210-250 |
