Specifications at a glance
Rim Clamping:11''-21''
Inner Clamping:12''-22''
Max. Wheel Diameter:940mm(37")
Min.Wheel Width:255mm(10'')
Bead-Breaker Cylinder Force at 10 Bar:2500Kg
Operating Pressure: 8-10bar(116-145psi)
Power Supply: 110v/220v/380v(50-60hz)
Motor Power: 0.75kw/1.1kw
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
X102D
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Color:
-
Customized
-
Package:
-
Wooden BOX
-
Voltage:
-
220V/110V/380V
-
Max. wheel diameter:
-
930mm
-
Inside clamping:
-
12''-22''
-
Gross weight:
-
206kg
-
Work pressure:
-
8-10bar
-
Bead baker force:
-
2500kgs
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10 Bar(116-145psi)
-
Power Supply:
-
110V/220V/380V(50-60Hz)
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
X102D
-
Warranty:
-
12 Months
-
Certification:
-
CE
-
Color:
-
Customized
-
Package:
-
Wooden BOX
-
Voltage:
-
220V/110V/380V
-
Max. wheel diameter:
-
930mm
-
Inside clamping:
-
12''-22''
-
Gross weight:
-
206kg
-
Work pressure:
-
8-10bar
-
Bead baker force:
-
2500kgs

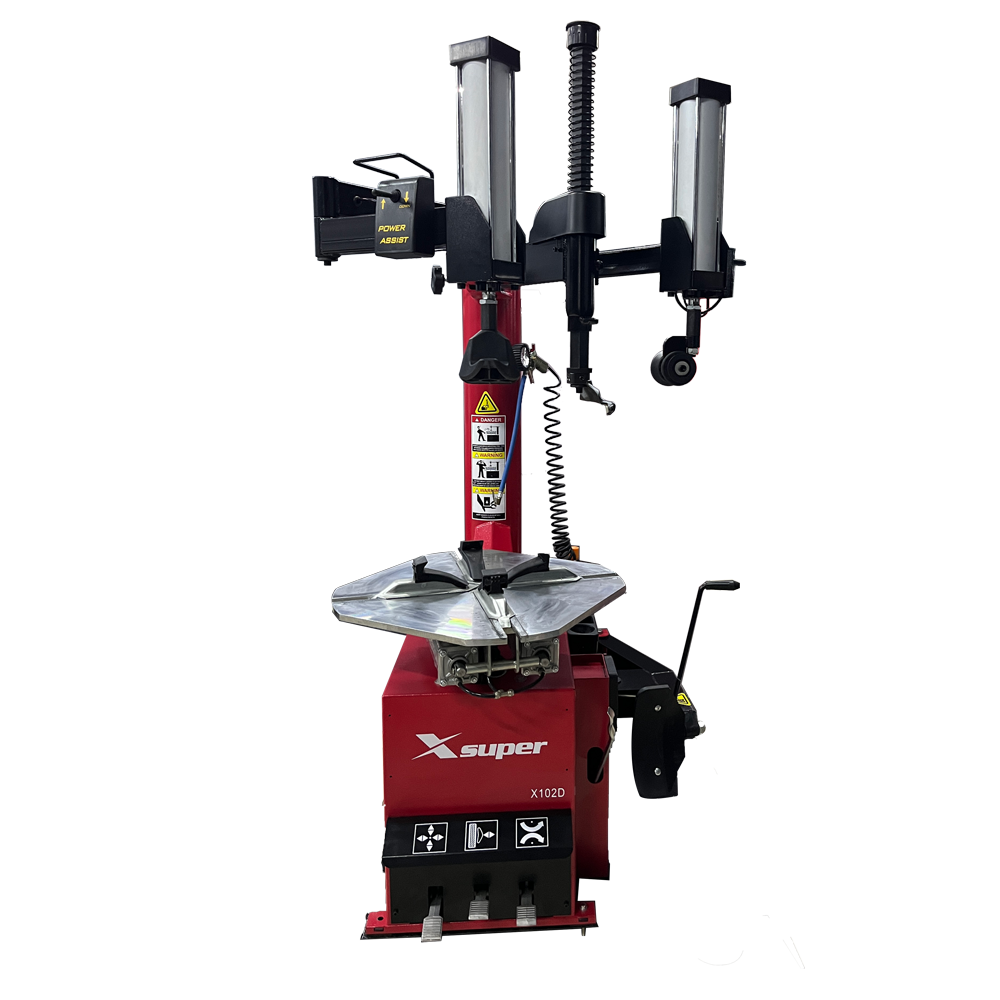

Semi Auto Tire Changers
Other Features
Super-sized cylinders provide tremendous power and control.Assistance with mounting and dismounting.
Oil Filter
1.0 Mpa high quality water and oil fliter,which got resistance to high pressure.
Pure Copper Motor
More durable of the machine and achieve longer service life.
Excellent Structure
Heavier chassis than other brands featuring rubber feet to prevent movement. More rigid design ensures long service life.
Polished table-top makes cleanup easy. High torque and speed provide power to tough wheels.
|
|
X102A
|
X102B
|
X102C
|
x102D
|
|
Max. Tire Diameter
|
37''
|
41''
|
41''
|
41''
|
|
Box Size
|
395 x 800mm
|
395 x 800mm
|
395 x 800mm
|
395 x 860mm
|
|
Net Weight
|
160kg
|
162kg
|
163kg
|
163KG
|
|
Motor Power
|
1.1kw
|
1.1kw
|
1.1kw
|
1.1KW
|
|
Bead Breaker Cylinder Diamter
|
7''
|
7''
|
7''
|
7''
|
|
Max Rim Clamping
|
19''
|
21''
|
21''
|
21''
|
|
Min Rim Clamping
|
10''
|
11''
|
11''
|
11''
|
|
Max Outer Clamping
|
22''
|
24''
|
24''
|
24''
|
|
Min Outer Clamping
|
12''
|
12''
|
12''
|
12''
|
|
Oil Filter
|
Common
|
Common
|
Common
|
Top
|
|
Motor Wire Material
|
Aluminum
|
Aluminum
|
Copper
|
Copper
|
|
Bead Beaker Cylinder Material
|
Iron
|
Aluminum
|
Copper
|
Metal bucket with hard chromium plating
|
WHO WE ARE
More than
20 years of accumulation
of four wheel alignment design and development,
14 years of development
and manufacturing of 3D wheel alignment,
over 30 global patent technologies
,
over 200 technology upgrade
. Lawrence provides professional equipment or service to
more than 20 thousands customers
in the world.
Contact Information
:
008617727664457
Sale Representative: Christin
AFTER-SALES SERVICE
1,The order for economical tire changer succeeds, we will offer one year warranty.
2,We will offer user manual to guide you to use your machine.
You order many times, we will give you the corresponding discount, please contact your exclusive customer service.
3,We have a professional after-sales service team to provide you with professional technical support.
4,We can provide video explanations when you encounter problems.
Our Certifications
Our Exhibitions
Our Customers
FAQ
1.Q:Can we use 380V/50HZ as power supply ?
A:Yes,additional cost needed .
2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor. Welcome to join Lawrence!
3.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax sowe suggest you pay in US dollars.
4.Q:What is delievery time ?
A:2 working days upon receiption of down payment .
5.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation.
2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor. Welcome to join Lawrence!
3.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax sowe suggest you pay in US dollars.
4.Q:What is delievery time ?
A:2 working days upon receiption of down payment .
5.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation.
