Quick Details
-
Cutting Area:
-
1400*1000mm
-
Cutting Thickness:
-
depend on the laser power
-
Control Software:
-
Leetron 6585
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LinTianZhiYuan
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support
-
Water cooling system:
-
water chiller
-
off-line work:
-
support
-
transmission type:
-
Shanghai Fulong belt transmission
-
Laser power:
-
90W/100W/130W/150W
-
working table:
-
blade table / honeycomb table
-
Motor:
-
stepper motor
-
Driver:
-
Leadshine Driver
-
Lens and mirrors:
-
imported from Singapore
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
600mm/s
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
1400*1000mm
-
Cutting Thickness:
-
depend on the laser power
-
Control Software:
-
Leetron 6585
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LinTianZhiYuan
-
Weight (KG):
-
550 KG
-
After-sales Service Provided:
-
Overseas third-party support available, Video technical support
-
Water cooling system:
-
water chiller
-
off-line work:
-
support
-
transmission type:
-
Shanghai Fulong belt transmission
-
Laser power:
-
90W/100W/130W/150W
-
working table:
-
blade table / honeycomb table
-
Motor:
-
stepper motor
-
Driver:
-
Leadshine Driver
-
Lens and mirrors:
-
imported from Singapore

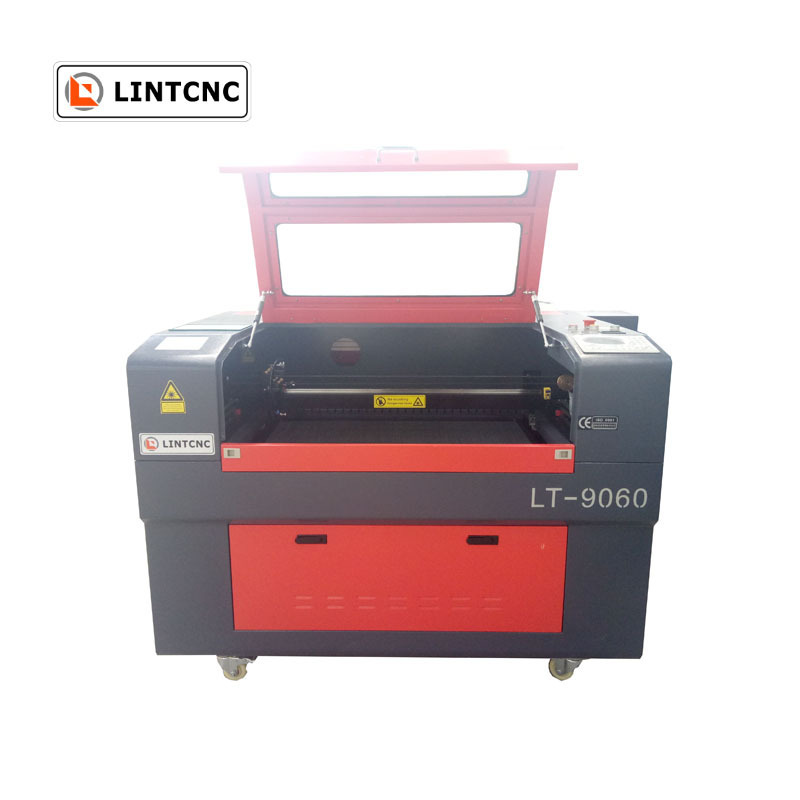

laser cutting machine 1410/cnc laser engraving machine/Laser cutter glass engraver
Welcome to visit our factory !
Application
Acrylic,wood,leather,bamboo,crystal,rubber,plastic,double plate,PCB
board, glass etc.Advertisement,gifts, shoes, toys, computers, garments,
model cutting, building, packaging, paper industry etc.
Parameters
|
NO. |
Model |
L T- 1410 |
|
1 |
Laser medium |
CO2 |
|
2 |
Working area |
1400*1000mm |
|
3 |
Working table |
Blade table |
|
4 |
Laser power |
90W |
|
5 |
Power Supply |
220V/50Hz, 110V/60Hz |
|
6 |
Min line width |
≤0.15mm |
|
7 |
Positon accuracy |
0.01mm |
|
8 |
Repetition accuracy |
0.02mm |
|
10 |
Guide rail |
HIWIN linear square guide rail from Taiwan |
|
12 |
Drive system |
Leadshine driving system and stepper motor |
|
13 |
Cooling system |
Water-cooling |
|
14 |
Control system |
Leetro 6525 controller |
|
15 |
Control software |
Coreldraw, Photoshop, AutoCAD, Tajima |
|
16 |
Graphic format support |
PLT, DXF, BMP, JPG ,AI and ect |
|
17 |
Working environment |
0-45°C, |
|
19 |
Optional Parts |
USB Feature, Up-down work table, Red light pointer, Rotary System |
Features
1.Advanced machine design and the path of rays design ensure the equipment to be able to stabilize the normal continual work, and the maintenance is simple.
2.Coordinate clothing CAD, it could immediately design and output the sample piece, geminated enhance the speed.
3.Coordinate auto-feeding controlling device, it can keep on continual multi-layer cutting process, carry on the batch production.
4.For the outside patterns after typesetting, it can automatically output the processing continuously at different times.
5.Has the unique superiority to the special materials like seamless underwear lining, ski clothes lining, tent, guard material and so on. Has the characteristic of automatically receives, no beard edge, high precision, fast speed and so on.
After-sales service:
1. Two year s free wa r ranty under normal use and we give maintenance for l2 months.
2.First class engineers give 24hours service on Internet and Telephone, free instructions and problem solving.
3.Free training to make sure you master the operating of cnc router.
