Quick Details
-
Warranty:
-
1 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon Machinery
-
Model Number:
-
BG
-
Product name:
-
Winch 2 Ton 3 Ton 5 Ton Parasailing Winch for Boat
-
Feature:
-
hydraulic winch
-
Market:
-
Mideast, Europe, American
-
Color:
-
Customer Requirement
-
Type:
-
hydraulic winch
-
Control method:
-
Hydraulic Control
-
Winch Hydraulic Device:
-
Built-in type
-
Speed:
-
Viriable by hydraulic control
-
Power source:
-
Standard hydraulic station
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
BOAT
-
Capacity:
-
20KN,3KN,50KN,80KN,100KN
-
Warranty:
-
1 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nybon Machinery
-
Model Number:
-
BG
-
Product name:
-
Winch 2 Ton 3 Ton 5 Ton Parasailing Winch for Boat
-
Feature:
-
hydraulic winch
-
Market:
-
Mideast, Europe, American
-
Color:
-
Customer Requirement
-
Type:
-
hydraulic winch
-
Control method:
-
Hydraulic Control
-
Winch Hydraulic Device:
-
Built-in type
-
Speed:
-
Viriable by hydraulic control
-
Power source:
-
Standard hydraulic station

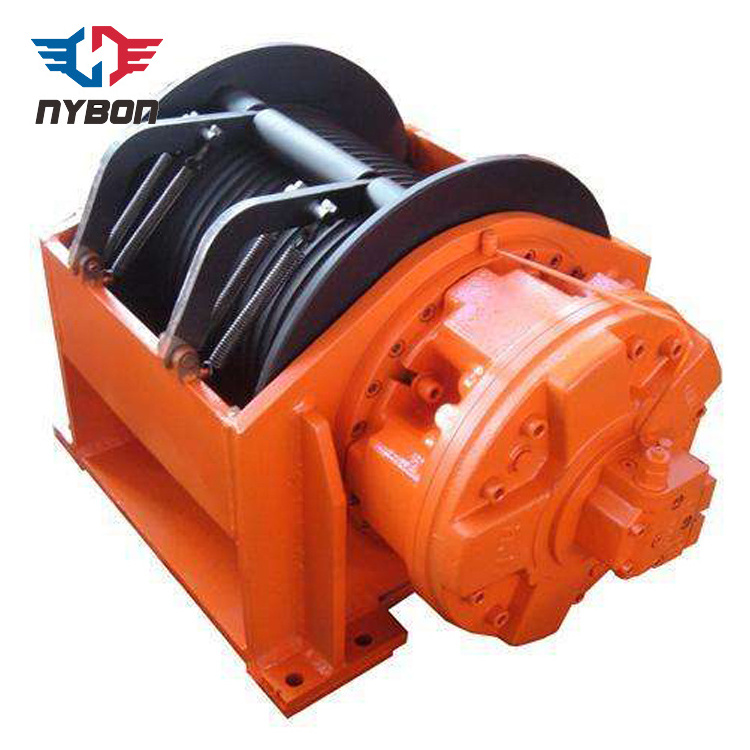

Hydraulic Winch 2 Ton 3 Ton 5 Ton Parasailing Winch for Boat
Nybon hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft,frame, rope device (optional), etc. Some hydraulic winches does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
Application
Technical Parameter
|
Model
|
Pulling Force
(kN)
|
Rated Speed
(m/min)
|
Total Displacement
(ml/r)
|
Working Pressure
(Mpa)
|
Diameter of Rope
(mm)
|
Rope Capacity
(m)
|
||||||
|
NYJ4-60-68-21.5
|
60
|
0-40
|
5428.5
|
16
|
21.5
|
68
|
||||||
|
NYJ5-80-100-24
|
80
|
0-40
|
9080
|
16
|
24
|
100
|
||||||
|
NYJ5-100-90-28
|
100
|
0-40
|
11039
|
16
|
28
|
100
|
||||||
|
NYJ7-200-150J-40
|
200
|
0-25
|
27434
|
17.8
|
40
|
150
|
||||||
|
NYJ79-300-155-44
|
300
|
0-16
|
57776
|
17
|
44
|
150
|
||||||
|
NYJ79-350-150-46
|
350
|
0.16
|
68768
|
16.8
|
46
|
200
|
||||||
|
NYJ79-400-145-48
|
400
|
0-16
|
79808
|
16.5
|
48
|
200
|
||||||
|
|
|
|
|
|
|
|||||||
